GNF325A Siemens Disconnect Switch Non Fused 400a 240V - Essential Electric Supply

GNF325A Siemens VBII Series Disconnect 240V 400A Switch - Essential Electric Supply

Siemens GNF325A - Non-Fusible Disconnect 400A 3-Pole (240V AC)

Siemens GNF325A - Non-Fusible Disconnect 400A 3-Pole (240V AC)

Siemens

Price

Save $0

Title Default Title New

In stock, ready to ship
Backordered, shipping soon

Quantity

Call for Price

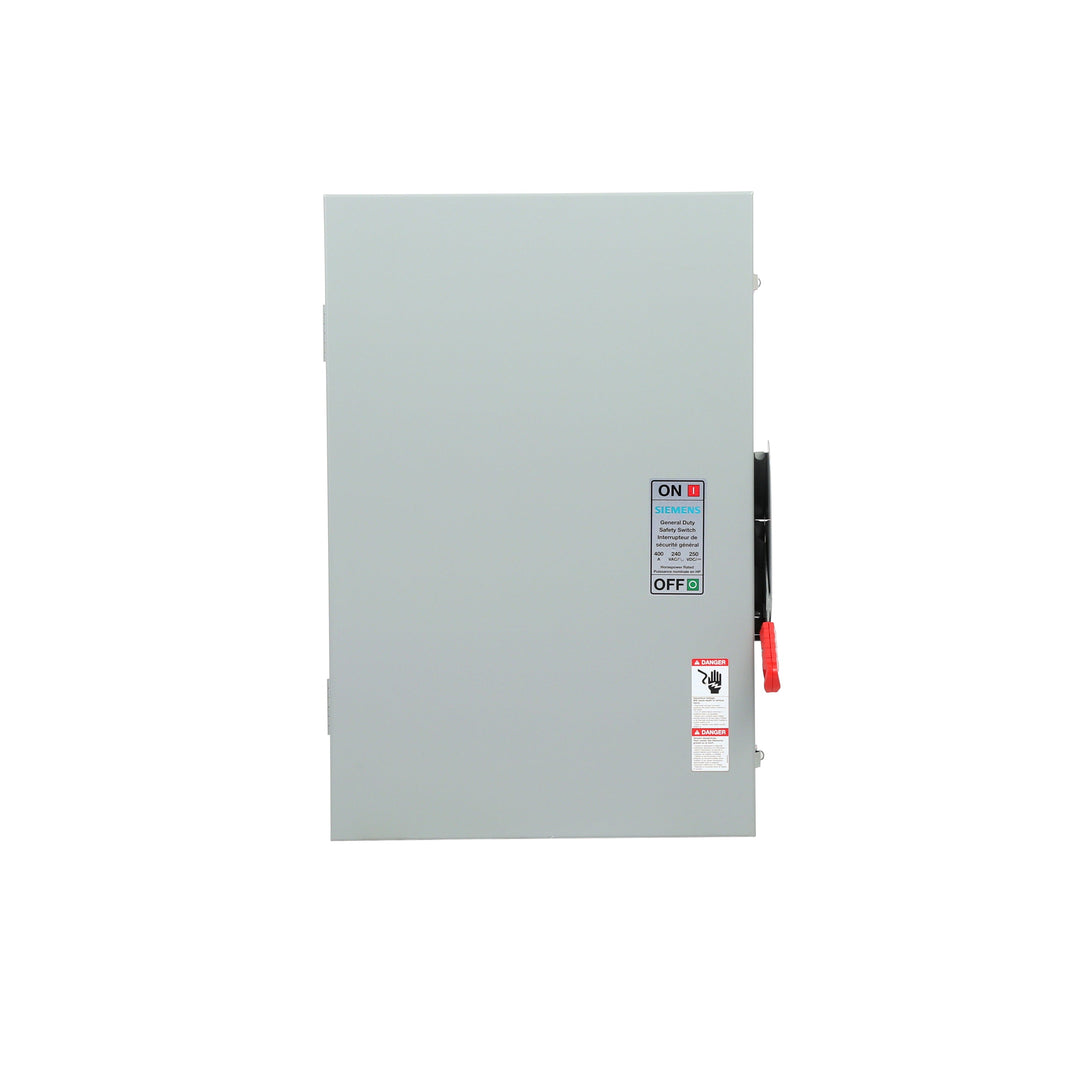

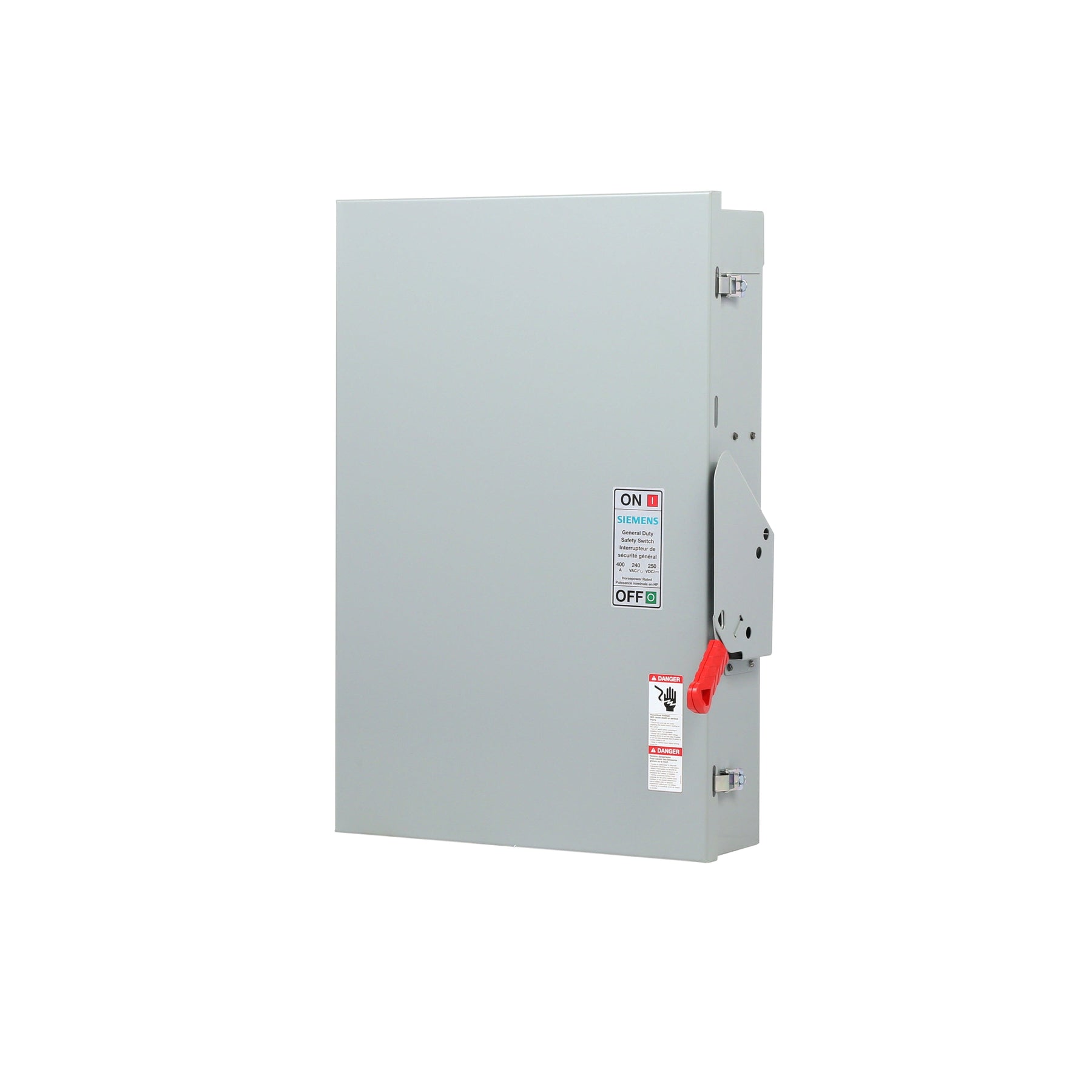

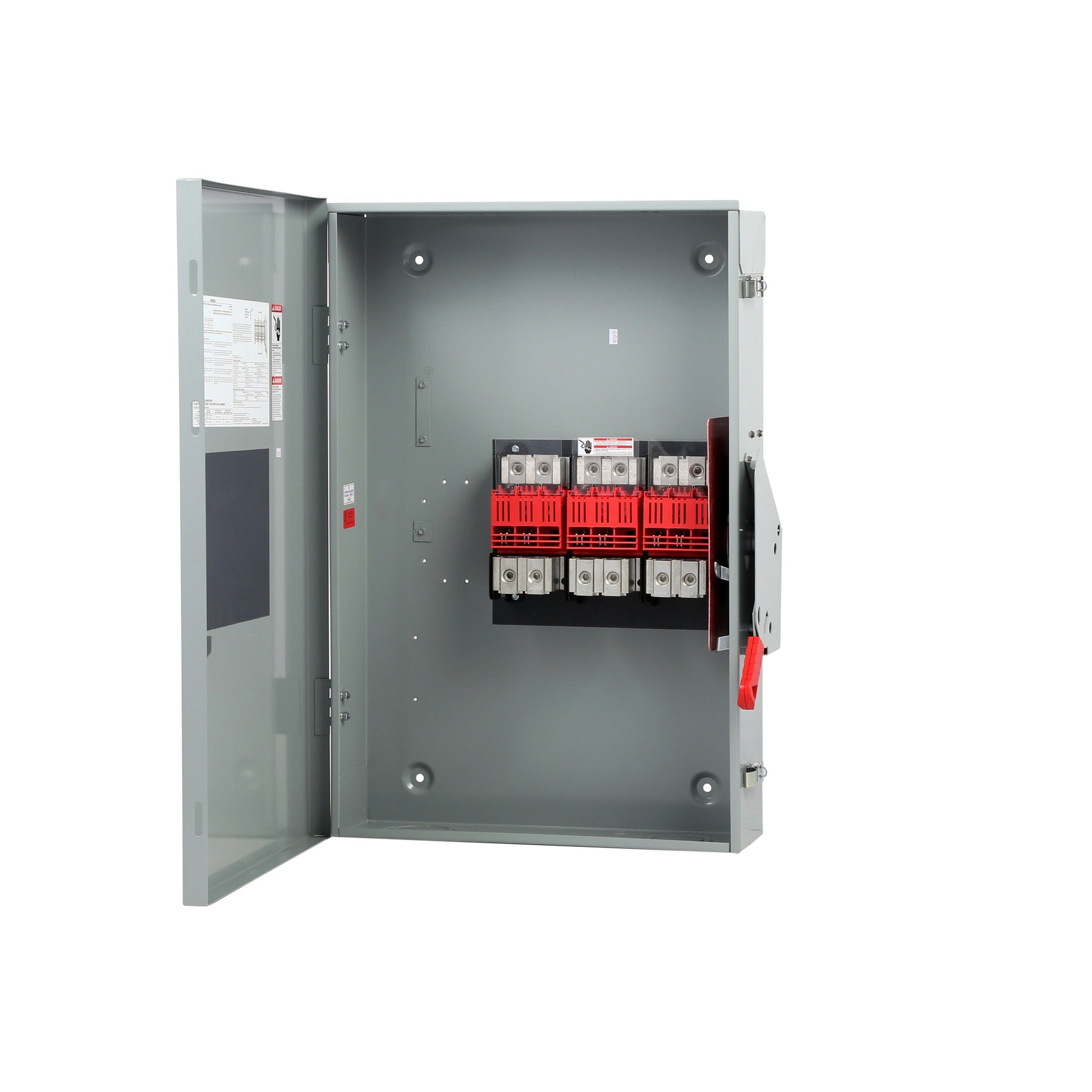

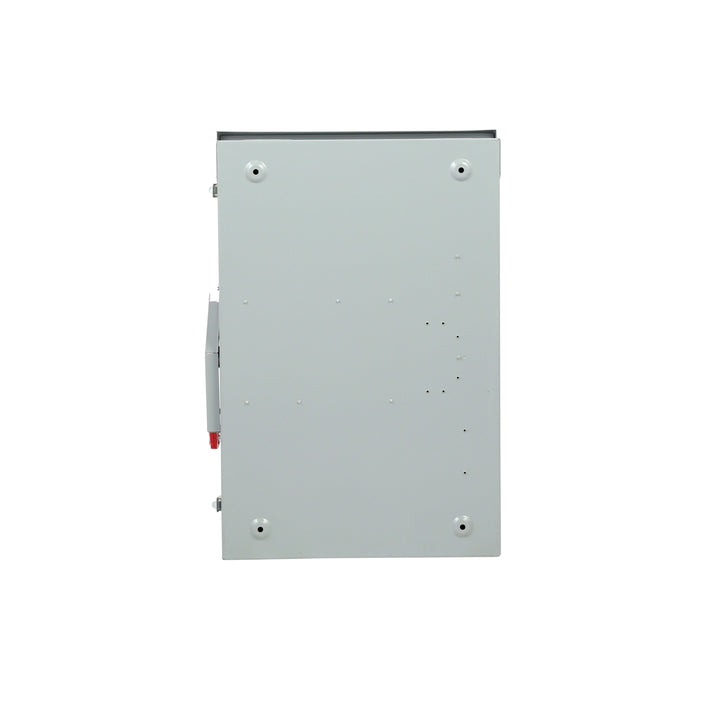

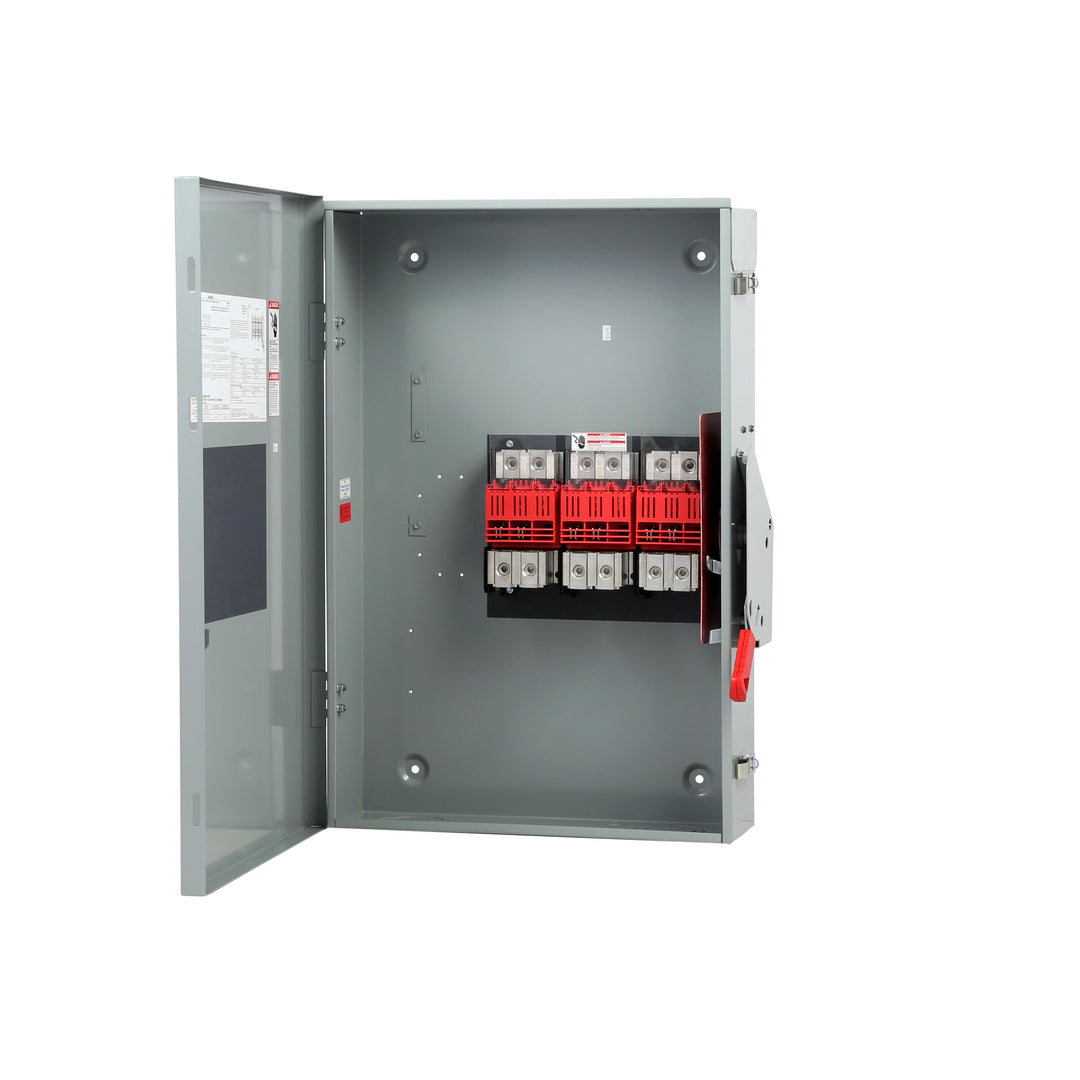

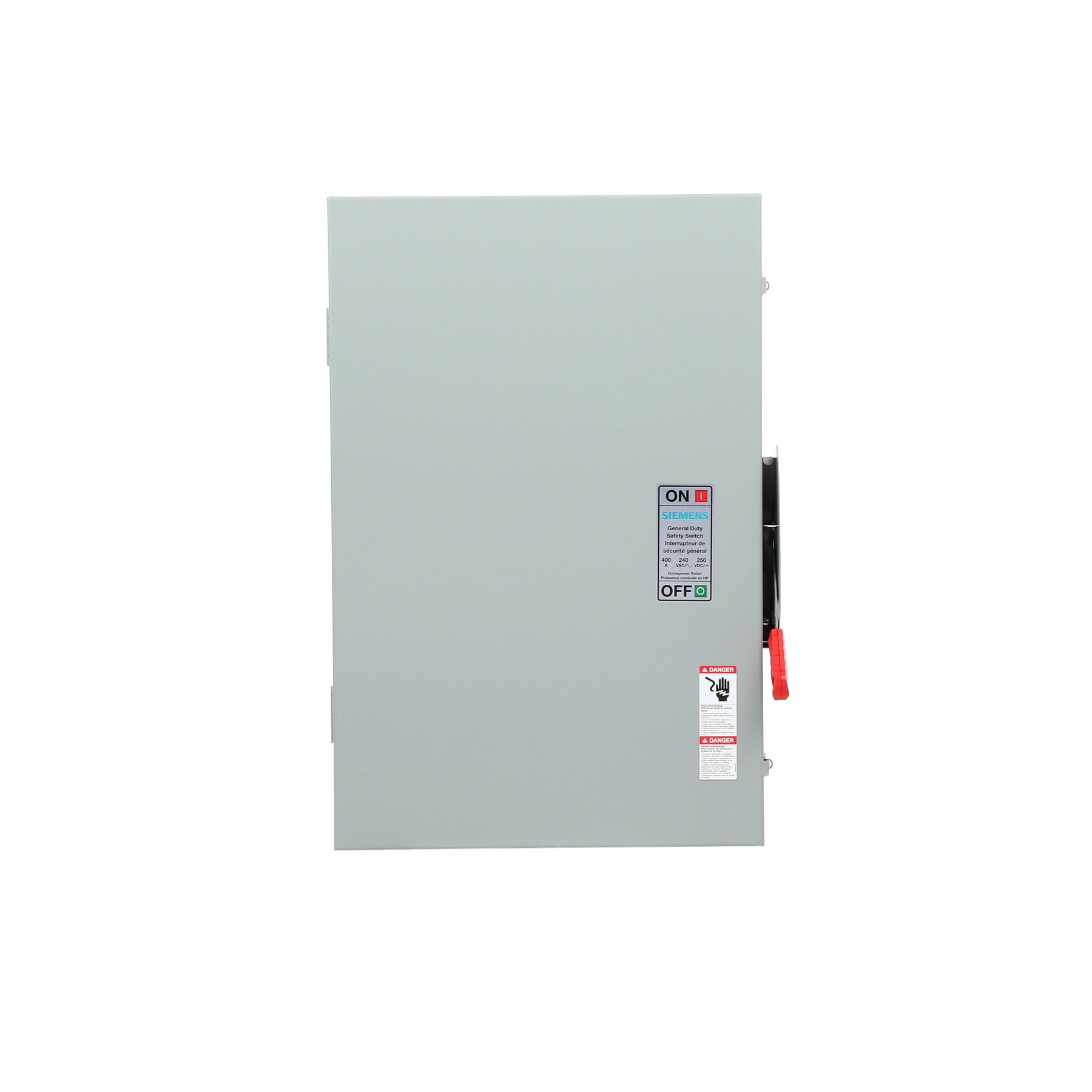

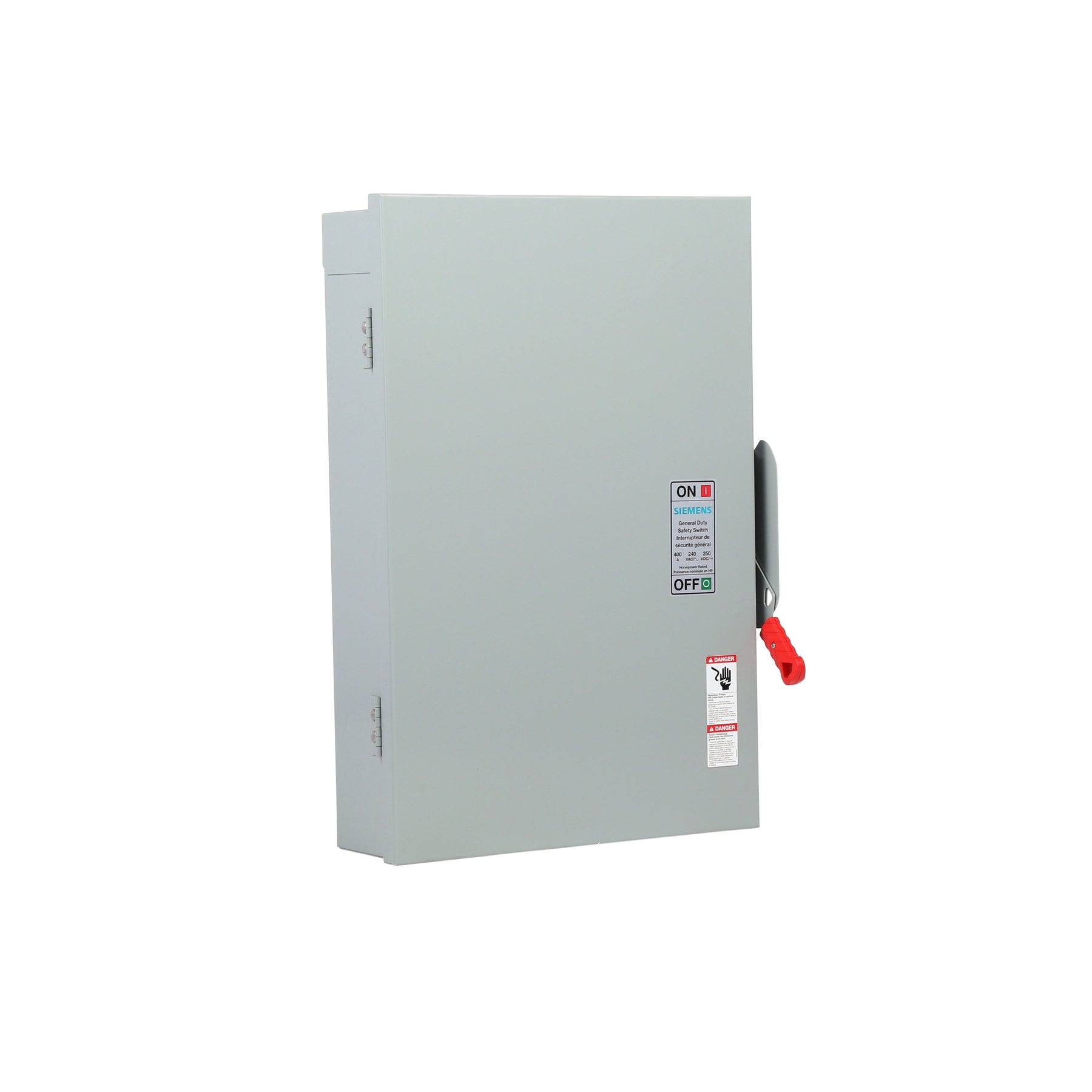

Siemens GNF325A is a non-fusible disconnect switch designed for safely isolating three-phase electrical circuits up to 400A. It provides a UL Listed, visible-break safety disconnect with a 240V AC voltage rating and a high 100kA interrupting capacity at 240V for robust short-circuit protection. The switch is constructed within a NEMA 1 enclosure measuring 6.693" x 22.047" x 33.465" and weighing 75.156 lb, and is rated for operation in temperatures from -25°C to 70°C (-13°F to 158°F). As part of the Siemens VBII Series, this single-configuration, three-pole device complies with industry safety standards for circuit isolation. It is typically applied in industrial control panels, motor control centers, and power distribution systems where a reliable, non-fusible means of disconnection is required.

Key Features & Specifications

Type: Non-Fusible Disconnect Switch, VBII Series
Voltage Rating: 240V AC
Current Rating: 400A
Dimensions: 6.693" W x 22.047" H x 33.465" D (170mm x 560mm x 850mm)
Weight: 75.156 lb (34.1 kg)
Standards: UL Listed
Applications: Industrial power distribution, motor control isolation, panel safety disconnects
Switch Type: Non-Fusible
Configuration: Single
Temp Rating: -25°C to 70°C (-13°F to 158°F)
Phase: 3
Poles: 3
AIC Rating: 100kA @ 240V
NEMA Rating: NEMA 1
Enclosure: NEMA 1

Product Identification

UPC: 887621872670
GTIN: 00887621872670

Siemens GNF325A - Non-Fusible Disconnect 400A 3-Pole (240V AC)
