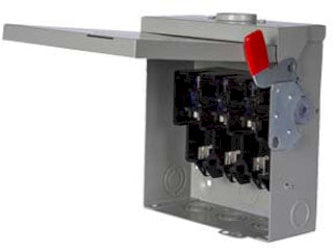

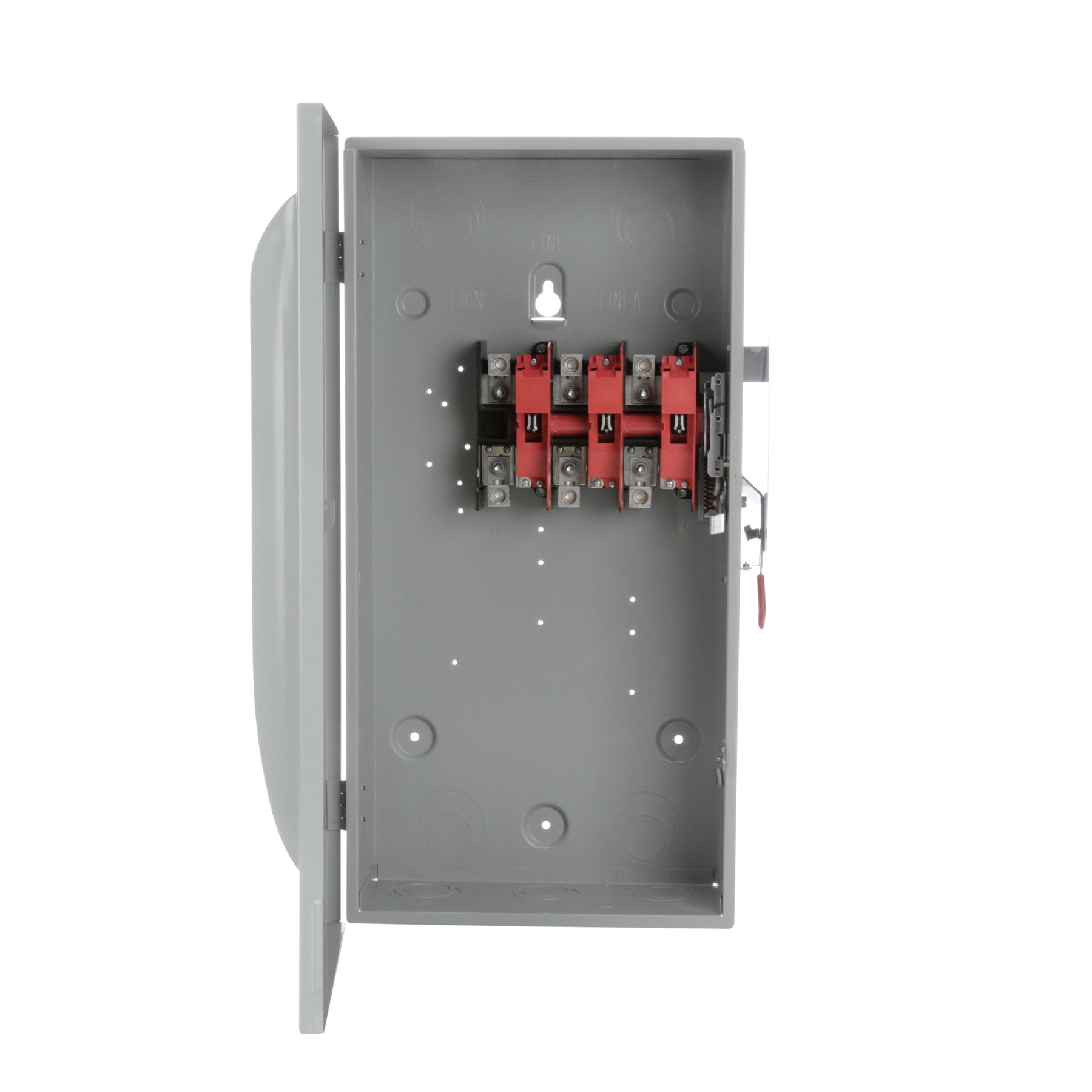

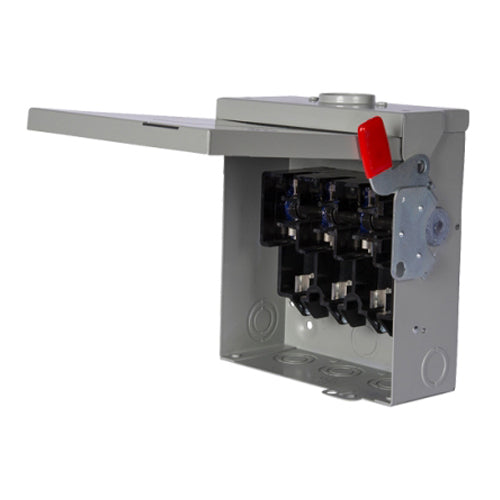

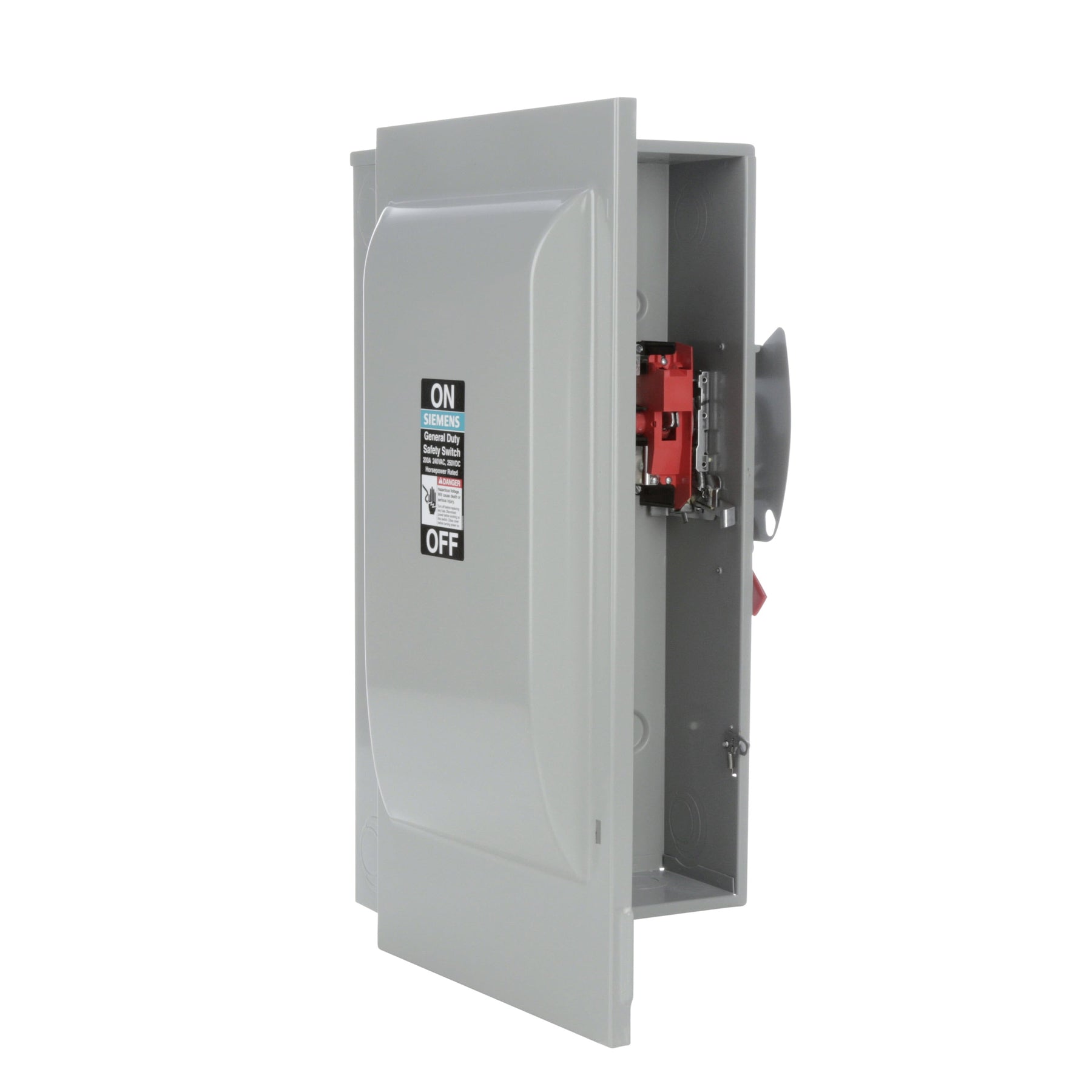

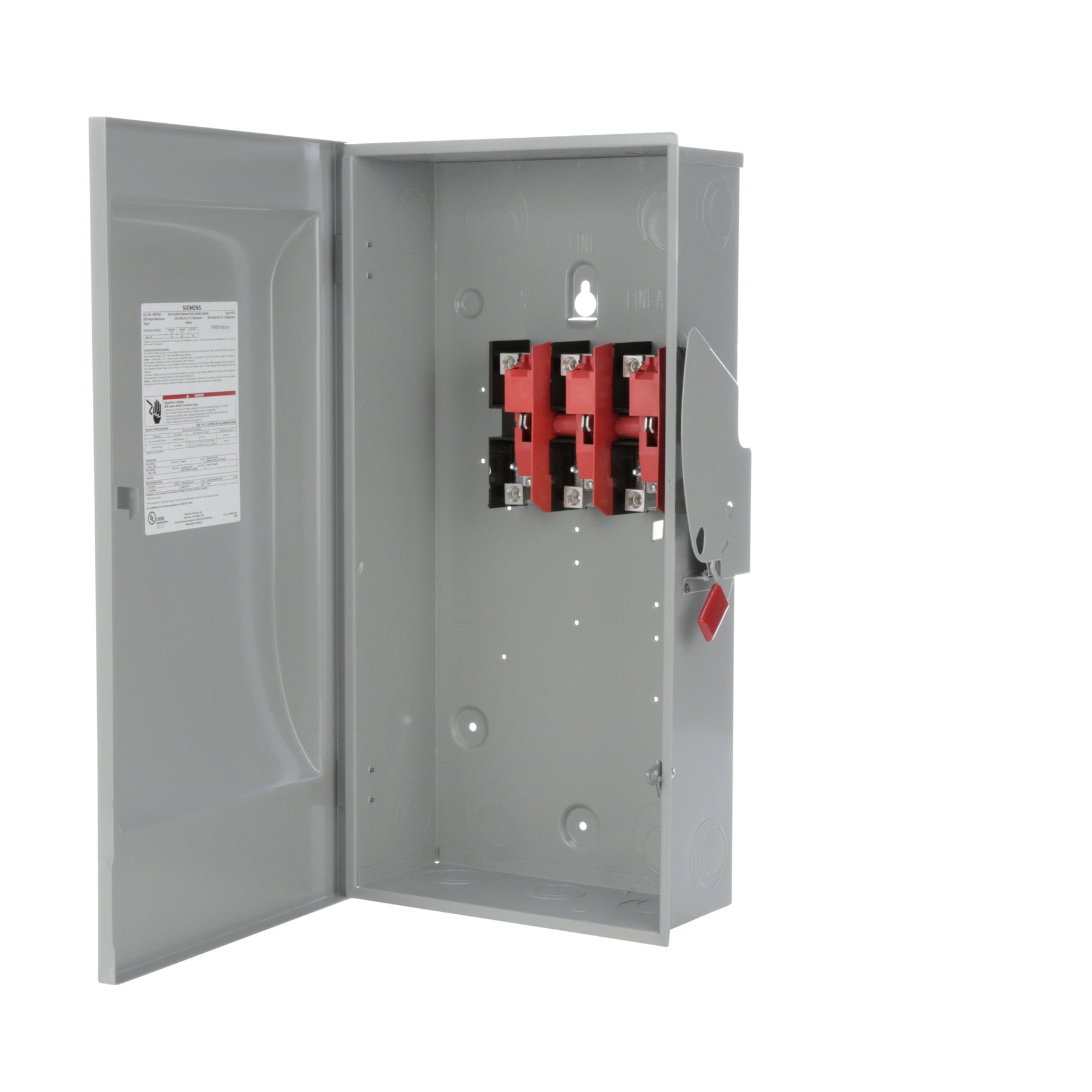

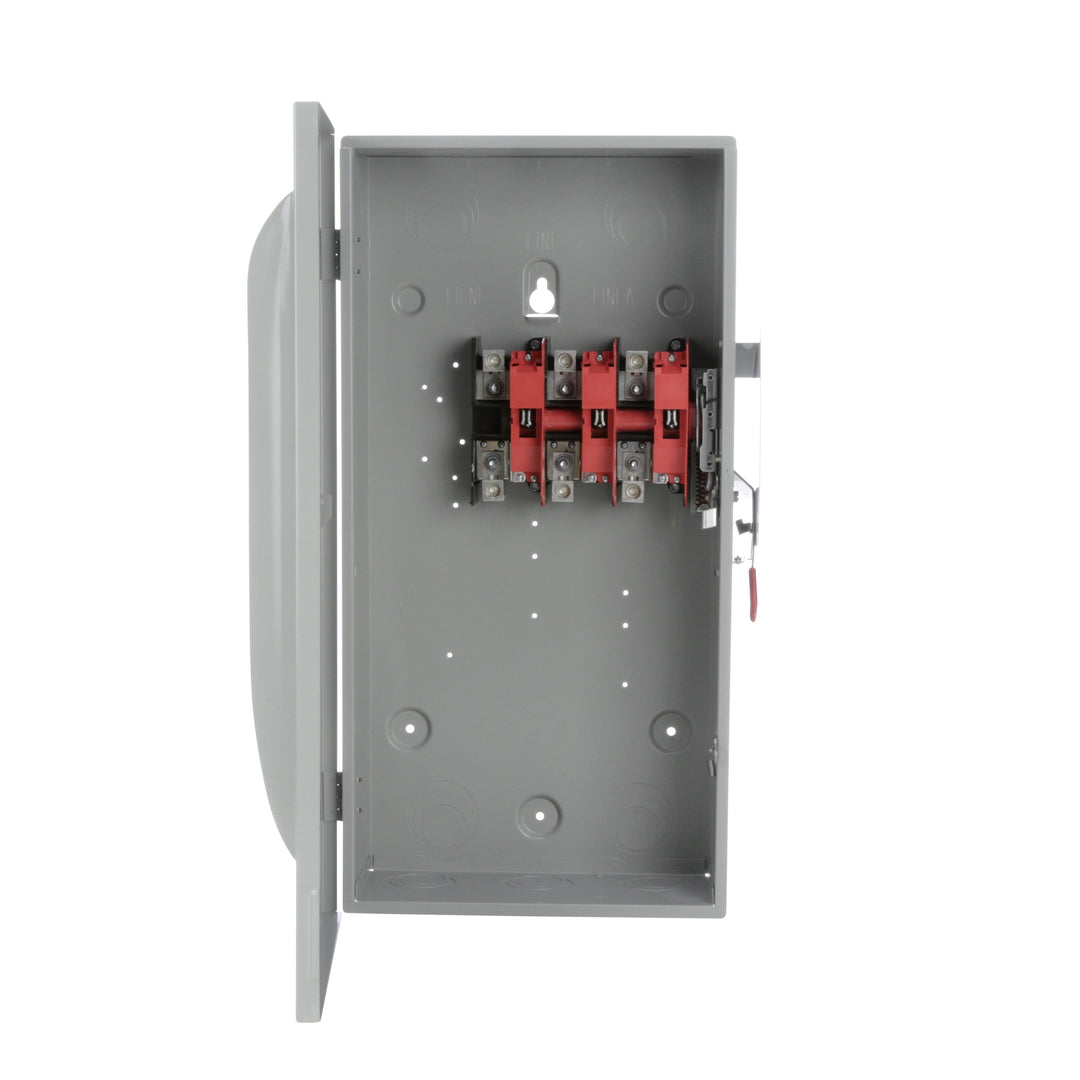

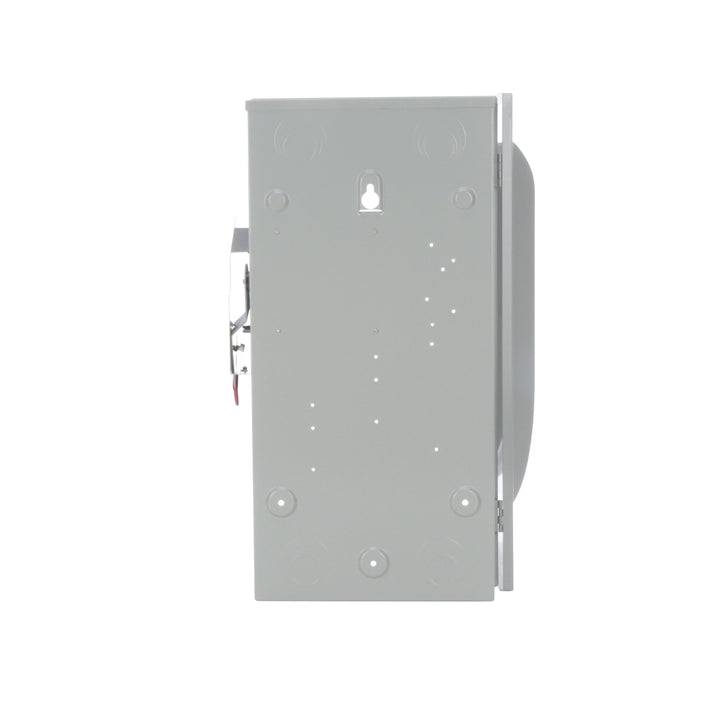

Siemens GNF324 - Non-Fusible Disconnect Switch 200A@240V (100kA AIC Rating)

Siemens GNF324 is a non-fusible disconnect switch designed for industrial power distribution systems, providing reliable circuit isolation and protection. Rated for 240V AC operation with a 200A current capacity, this heavy-duty switch features a 100kA interrupting rating at 240V for high-fault protection. The rugged NEMA 1 enclosure measures 16.7 x 31.1 inches and weighs 20 lb, constructed for durability in demanding environments. UL98-certified and compatible with MHP frames, this three-phase switch meets stringent safety standards for industrial electrical systems. Typical applications include motor control centers, panelboards, and main service disconnects in commercial and manufacturing facilities.

Key Features & Specifications

• Type: Non-fusible disconnect switch (GNF type)
• Voltage Rating: 240V AC
• Current Rating: 200A
• Dimensions: 16.7 in x 31.1 in
• Standards: UL98 certified
• Applications: Industrial power distribution, motor control centers
• Configuration: Single
• Poles: 3
• AIC rating: 100kA@240V
• Switch Style: Non-Fusible
• Nema Rating: 1
• Phase: 3
• Compatible Frames: MHP
• Weight: 20 lb
• Country of Origin: Mexico
• Family: VBII Series

Product Identification

• UPC: 783643149168
• GTIN: 00783643149168
