Bussmann GMQ-1 - GMQ Fuse 1A 300V (10kA AIC)
Bussmann GMQ-1 - GMQ Fuse 1A 300V (10kA AIC)
Bussmann GMQ-1 - GMQ Fuse 1A 300V (10kA AIC)
Bussmann GMQ-1 - GMQ Fuse 1A 300V (10kA AIC)

Bussmann GMQ-1 - GMQ Fuse 1A 300V (10kA AIC)

Bussmann
Price
Save $2.16
/
Title
  • In stock, ready to ship
  • Backordered, shipping soon
Call for Price

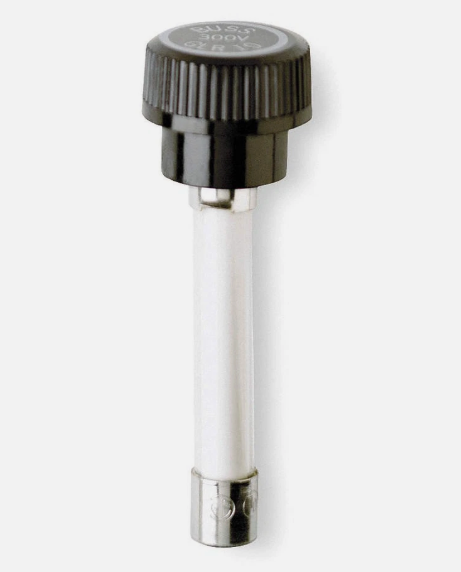

Bussmann GMQ-1 is a low voltage current-limiting fuse designed for industrial circuit protection applications. It features a 300V AC voltage rating with a 1A current rating and provides 10kA interrupting capacity at 300V AC. The fuse construction includes a single barrel design with 0.63-inch diameter and 2-1/4-inch length, weighing 1 lb for robust industrial use. It complies with UL 248-14 standards and carries CE and CSA Class 1422-01 certifications for safety and reliability. Typical applications include motor control centers, industrial control panels, and power distribution systems where precise overcurrent protection is required.

Key Features & Specifications
  • Type: GMQ current-limiting fuse, single barrel design
  • Voltage Rating: 300V AC
  • Current Rating: 1A
  • Dimensions: 2-1/4" length, 0.63" diameter
  • Standards: UL 248-14 Guide JDYX, CE, CSA Certification Class 1422-01
  • Applications: Industrial control panels, motor control centers, power distribution
  • AIC rating: 10kA@300Vac
  • Barrels: 1
  • Weight: 1 lb
  • Certification: CE, CSA Certification Class 1422-01, UL 248-14 Guide JDYX


Product Identification
  • UPC: 05171271693
  • GTIN: 00051712716932
