Bussmann GMF-8/10 - GMF Fuse 8A 300V (10kA AIC Rating)
Bussmann GMF-8/10 - GMF Fuse 8A 300V (10kA AIC Rating)
Bussmann GMF-8/10 - GMF Fuse 8A 300V (10kA AIC Rating)
Bussmann GMF-8/10 - GMF Fuse 8A 300V (10kA AIC Rating)
Bussmann GMF-8/10 - GMF Fuse 8A 300V (10kA AIC Rating)
Bussmann GMF-8/10 - GMF Fuse 8A 300V (10kA AIC Rating)

Bussmann GMF-8/10 - GMF Fuse 8A 300V (10kA AIC Rating)

Bussmann
Price
Save $1.65
/
Title
  • In stock, ready to ship
  • Backordered, shipping soon
Call for Price

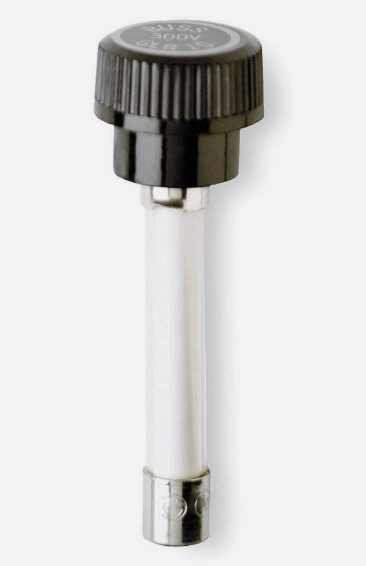

Bussmann GMF-8/10 is a low-voltage fuse designed for circuit protection in industrial applications, providing reliable overcurrent protection with its 8A current rating and 300V voltage rating. The fuse features a compact ferrule connection design with a 0.63-inch diameter and 2-1/4 inch length, constructed as a single-barrel configuration for straightforward installation. It meets rigorous industry standards including CE, CSA Certification Class 1422-01, and UL 248-14 Guide JDYX compliance, ensuring safe operation across various industrial environments. With a 10kA interrupting rating at 300V AC, this fuse is suitable for protecting control circuits, motor branches, and other electrical systems requiring precise overcurrent protection.

Key Features & Specifications
  • Type: GMF low-voltage fuse with ferrule connection, single barrel construction
  • Voltage Rating: 300V AC/DC
  • Current Rating: 8A
  • Dimensions: 2-1/4 inch length, 0.63 inch diameter
  • Standards: CE, CSA Certification Class 1422-01, UL 248-14 Guide JDYX
  • Applications: Industrial control circuits, motor branch protection, electrical systems
  • AIC rating: 10kA@300Vac
  • Connection: Ferrule
  • Barrels: 1
  • Weight: 1 lb
  • Certification: CE, CSA, UL
  • Country of Origin: Mexico


Product Identification
  • UPC: 051712716758
  • GTIN: 00051712716758
