Bussmann GMF-4 - GMF Fuse 4A 300V (10kA AIC Rating)

Bussmann
Price
Save $171.49
/
Title
  • In stock, ready to ship
  • Backordered, shipping soon
Call for Price

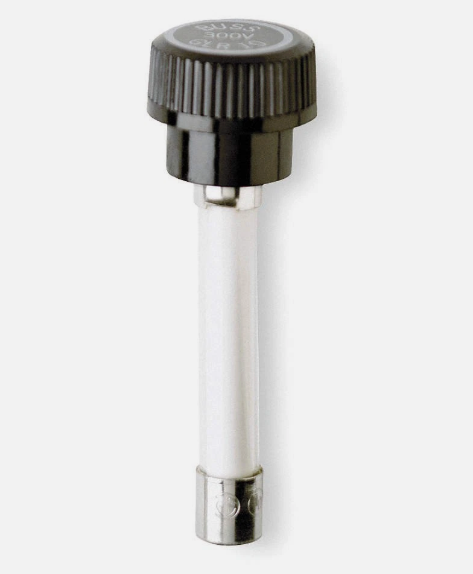

Bussmann GMF-4 is a low-voltage current-limiting fuse designed for overcurrent protection in industrial electrical systems. It features a 4A current rating and 300V voltage rating with a 10kA interrupting capacity at 300V AC. The fuse measures 2-1/4 inches in length with a 0.63-inch diameter ferrule connection and single-barrel construction. It complies with UL 248-14 standards and carries CE and CSA Class 1422-01 certifications for safety and performance. Typical applications include protection of control circuits, transformers, and motor circuits in industrial environments where reliable overcurrent protection is critical.

Key Features & Specifications
  • Type: GMF current-limiting fuse with ferrule connection
  • Voltage Rating: 300V AC
  • Current Rating: 4A
  • Dimensions: 2-1/4 in length x 0.63 in diameter
  • Standards: UL 248-14 Guide JDYX, CSA Certification Class 1422-01, CE
  • Applications: Industrial control circuits, transformers, motor protection
  • AIC rating: 10kA@300Vac
  • Connection: Ferrule
  • Barrels: 1
  • Weight: 1 lb
  • Country of Origin: Mexico


Product Identification
  • UPC: 05171271684
  • GTIN: 00051712716840
