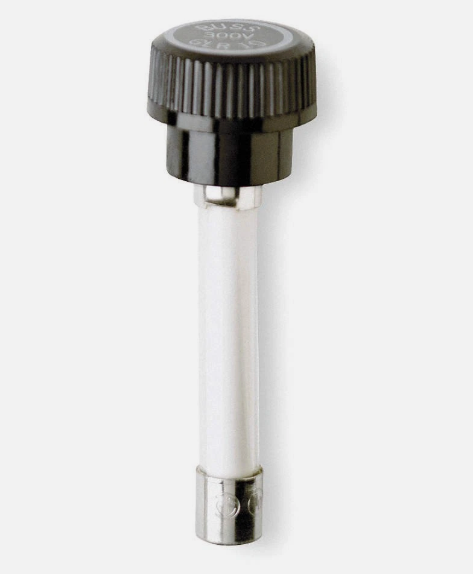

Bussmann GMF-3-2/10 - Low Voltage Fuse 3A 300V (10kA AIC Rating)
Bussmann GMF-3-2/10 - Low Voltage Fuse 3A 300V (10kA AIC Rating)
Bussmann GMF-3-2/10 - Low Voltage Fuse 3A 300V (10kA AIC Rating)
Bussmann GMF-3-2/10 - Low Voltage Fuse 3A 300V (10kA AIC Rating)

Bussmann GMF-3-2/10 - Low Voltage Fuse 3A 300V (10kA AIC Rating)

Bussmann
Price
Save $-5.22
/
Title
  • In stock, ready to ship
  • Backordered, shipping soon
Call for Price
The Bussmann GMF-3-2/10 is a low-voltage fuse designed for circuit protection in industrial applications, providing reliable overcurrent protection for sensitive electrical equipment. It features a 3A current rating and 300V voltage rating with a 10kA interrupting capacity at 300V AC, ensuring robust performance under fault conditions. Constructed with a single-barrel ferrule connection and measuring 2-1/4 inches in length with a 0.63-inch diameter, this 1 lb fuse offers compact, durable protection. The device complies with CE, CSA Certification Class 1422-01, and UL 248-14 Guide JDYX standards, meeting rigorous safety requirements. Typical applications include protection of control circuits, transformers, and motor circuits across various industrial environments.

Key Features & Specifications
  • Type: GMF series low-voltage fuse with ferrule connection
  • Voltage Rating: 300V AC
  • Current Rating: 3A
  • Dimensions: 2-1/4 inch length, 0.63 inch diameter
  • Standards: CE, CSA Certification Class 1422-01, UL 248-14 Guide JDYX
  • Applications: Control circuits, transformers, motor circuit protection
  • AIC rating: 10kA@300Vac
  • Connection: Ferrule
  • Barrels: 1
  • Weight: 1 lb
  • Family: GMF Series
  • Country of Origin: Mexico


Product Identification
  • UPC: 051712716833
  • GTIN: 00051712716833
