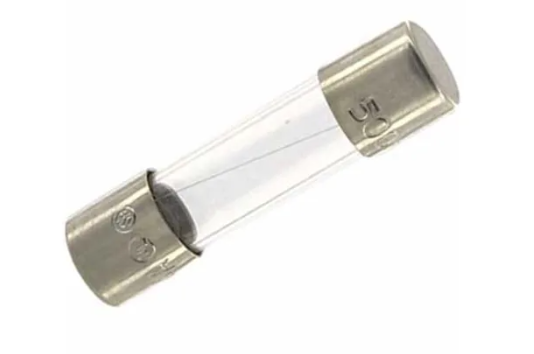

Bussmann GMA-3.5-R - GMA Fuse 3.5A 125V (10kA AIC Rating)

Bussmann GMA-3.5-R is a low-voltage fuse designed for circuit protection in industrial applications. This 3.5A rated fuse operates at 125V AC/DC with a 10kA interrupting rating, providing reliable overcurrent protection. The compact 5mm diameter x 20mm length ferrule-style construction features single-barrel design with robust materials for consistent performance. Certified to UL, CSA, CE, and PSE standards, this GMA series component meets international safety requirements for electrical protection systems. Typical applications include control circuits, instrumentation, and electronic equipment where precise current limitation is critical.

Key Features & Specifications

• Type: GMA series low-voltage fuse with ferrule connection, single barrel construction
• Voltage Rating: 125V AC/DC
• Current Rating: 3.5A
• Dimensions: 5mm diameter x 20mm length
• Standards: CE, UL Guide JDYX (File E19180), CSA Certification Class 1422-01 (File 53787), PSE Approval
• Applications: Control circuits, instrumentation, electronic equipment protection
• AIC rating: 10kA@125V
• Connection: Ferrule
• Barrels: 1
• Certification: CE, UL, CSA, PSE
• Family: GMA Series
• Fuse Class: GMA
• Mounting: Ferrule connection
• Diameter: 5mm
• Weight: 1 lb

Product Identification

• UPC: 05171264793
• GTIN: 00051712647939
