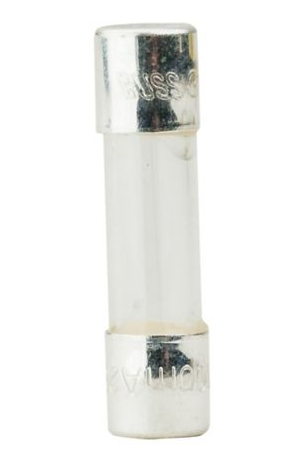

Bussmann GMA-2.5-R - GMA Fuse 2.5A 250V (UL/CSA/PSE Certified)

Bussmann GMA-2.5-R is a low-voltage fuse designed for circuit protection in industrial applications. It features a 2.5A current rating and 250V voltage rating with an interrupting capacity of 100A at 250V. The fuse construction includes a 5mm diameter ferrule connection with 20mm length and single barrel design. It meets multiple international standards including CE, UL Guide JDYX (File E19180), CSA Certification Class 1422-01 (File 53787), and PSE Approval. This fuse is typically employed in control circuits, instrumentation, and electronic equipment requiring reliable overcurrent protection.

Key Features & Specifications

• Type: GMA series low-voltage fuse with ferrule connection
• Voltage Rating: 250V AC/DC
• Current Rating: 2.5A
• Dimensions: 20mm length, 5mm diameter
• Standards: CE, UL Guide JDYX File E19180, CSA Certification Class 1422-01 File 53787, PSE Approval
• Applications: Control circuits, instrumentation, electronic equipment protection
• Connection: Ferrule
• Barrels: 1
• AIC rating: 100A@250V
• Certification: CE, UL, CSA, PSE
• Family: GMA Series
• Weight: 1 lb

Product Identification

• UPC: 05171264788
• GTIN: 00051712647885
