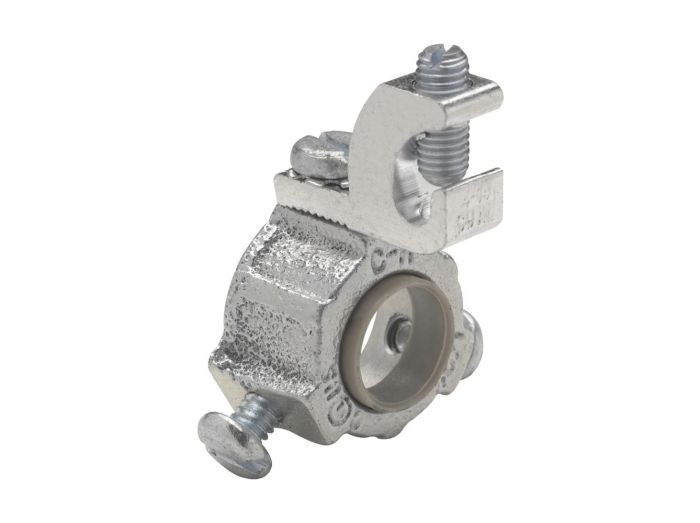

GLS11 Crouse-Hinds 5" Insulated Grounding Bushing — Fits Rigid & IMC Conduit

GLS11 Crouse-Hinds 5" Insulated Grounding Bushing — Fits Rigid & IMC Conduit

Trying to figure out which grounding bushing fits a 5-inch conduit? The Crouse-Hinds GLS11 is the part you're likely after. A grounding bushing is the fitting that lets you connect a ground wire to your conduit and protect the wire where it enters — and this one is sized for 5" rigid or IMC conduit.

It uses a threadless, set-screw design, so it slides on and tightens in place with the included screw (no threading required). The aluminum lug accepts a copper or aluminum ground conductor from #3/0 to #6 AWG, and the plastic-lined "insulated throat" keeps the wire from chafing on the metal edge. The body is durable malleable iron, it's rated to 105°C, and it's UL listed and CSA-certified for Canada under File E6225.

Common Applications

• Grounding a 5" rigid or IMC conduit run
• Connecting a ground wire at a panel, junction box, or service equipment
• Commercial, institutional, and facility electrical work
• Replacing a worn or missing grounding bushing on existing 5" conduit

Key Features

• Sized for 5" conduit: Fits 5" trade-size rigid and IMC conduit.
• No threading needed: Threadless design tightens with the included set screw.
• Takes #3/0–6 AWG ground wire: Aluminum lug works with copper or aluminum conductors.
• Insulated throat: Plastic liner protects the wire where it passes through.
• Tough build: Malleable iron body with a zinc-plated finish.
• Code-listed: UL listed and CSA-certified for Canada (UL File E6225).

Specifications

• Conduit type: Rigid / IMC
• Trade size: 5"
• Mounting: Threadless (set-screw type)
• Lug material: Aluminum
• Lug size: #3/0–6 AWG
• Body material: Malleable iron
• Temperature rating: 105°C
• Finish: Zinc plated
• Certifications: UL listed, CSA-certified for Canada — UL File E6225

Product Identification

• Manufacturer: Eaton Crouse-Hinds series
• Catalog number: GLS11
• UPC: 784564112507
• Dimensions: 5.7" L × 5.6" W × 7.8" H
• Weight: 1.4 lb
• Trade size: 5"

FAQ

What is a grounding bushing for? It connects a ground wire to your conduit and protects that wire where it enters the conduit, helping safely ground the system.

Will the GLS11 fit my conduit? It fits 5" trade-size rigid (RMC) or IMC conduit using a threadless, set-screw connection.

What size ground wire does it take? A copper or aluminum ground conductor from #3/0 to #6 AWG.

Do I need to thread it on? No — it's threadless. You slide it on and tighten the included set screw.

Is it approved for electrical code use? Yes, it's UL listed and CSA-certified for Canada under File E6225 for ordinary (non-hazardous) locations.

What if I need a larger ground wire? The GLS11 250 version accepts up to 250 kcmil. This listing is the standard #3/0–6 AWG GLS11.
