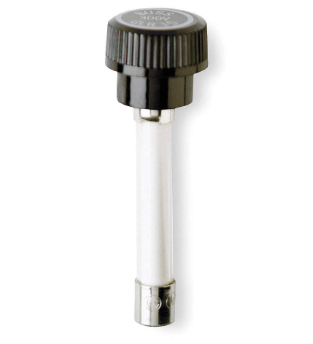

Bussmann GLR-8 - Current-Limiting Fuse 8A 300V (10kA AIC Rating)
Bussmann GLR-8 - Current-Limiting Fuse 8A 300V (10kA AIC Rating)
Bussmann GLR-8 - Current-Limiting Fuse 8A 300V (10kA AIC Rating)
Bussmann GLR-8 - Current-Limiting Fuse 8A 300V (10kA AIC Rating)

Bussmann GLR-8 - Current-Limiting Fuse 8A 300V (10kA AIC Rating)

Bussmann
Price
Save $56.18
/
Title
  • In stock, ready to ship
  • Backordered, shipping soon
Call for Price
Bussmann GLR-8 is a low-voltage current-limiting fuse designed for circuit protection in industrial electrical systems. It features a 300V voltage rating with an 8A current rating, providing reliable overcurrent protection with an interrupting rating of 10,000 amperes at 300V. The fuse measures 2-1/4 inches in length with a 0.63-inch diameter ferrule connection and single-barrel construction, manufactured to meet rigorous industry standards including UL 248-14 and CSA Class 1422-01 certifications. This Eaton GLR Series fuse is commonly deployed in industrial control circuits, motor branch circuits, and transformer protection applications where precise current limitation is required.

Key Features & Specifications
  • Type: Low-voltage current-limiting fuse with ferrule connection
  • Voltage Rating: 300V AC/DC
  • Current Rating: 8A
  • Dimensions: 2-1/4 inch length, 0.63 inch diameter
  • Standards: UL 248-14, CSA Certification Class 1422-01, CE
  • Applications: Industrial control circuits, motor protection, transformer circuits
  • Connection: Ferrule
  • Barrels: 1
  • AIC rating: 10,000A @ 300V
  • Weight: 1 lb
  • Certification: CE, CSA Certification Class 1422-01, UL 248-14 Guide JDYX
  • Family: GLR Series
  • Country of Origin: Mexico


Product Identification
  • UPC: 05171271631
  • GTIN: 00051712716314
