Bussmann GLR-7 - Low Voltage Fuse 7A 300V (10kA AIC Rating)
Bussmann GLR-7 - Low Voltage Fuse 7A 300V (10kA AIC Rating)
Bussmann GLR-7 - Low Voltage Fuse 7A 300V (10kA AIC Rating)
Bussmann GLR-7 - Low Voltage Fuse 7A 300V (10kA AIC Rating)

Bussmann GLR-7 - Low Voltage Fuse 7A 300V (10kA AIC Rating)

Bussmann
Price
Save $-0.38
/
Title
  • In stock, ready to ship
  • Backordered, shipping soon
Call for Price

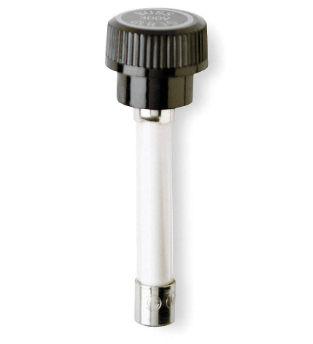

Bussmann GLR-7 is a low voltage fuse designed for circuit protection in industrial applications. It features a 7A current rating and 300V voltage rating with 10kA interrupting capacity at rated voltage. The fuse measures 2-1/4 inches in length with a 0.63-inch diameter ferrule connection and single barrel construction. It complies with UL 248-14, CSA Class 1422-01, and CE standards for safety and performance. Typical applications include protection of control circuits, transformers, and motor circuits in industrial environments.

Key Features & Specifications
  • Type: Low voltage current-limiting fuse with ferrule connection
  • Voltage Rating: 300V AC/DC
  • Current Rating: 7A
  • Dimensions: 2-1/4" length x 0.63" diameter
  • Standards: UL 248-14, CSA Class 1422-01, CE
  • Applications: Control circuits, transformers, motor protection
  • AIC rating: 10,000A @ 300V
  • Connection: Ferrule
  • Barrels: 1
  • Family: GLR Series
  • Weight: 1 lb
  • Country of Origin: Mexico


Product Identification
  • UPC: 05171271630
  • GTIN: 00051712716307
