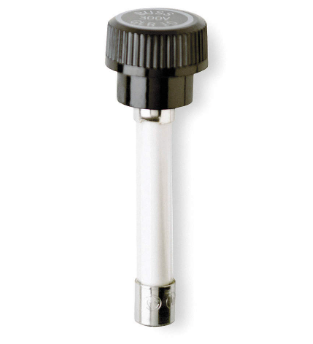

Bussmann GLR-6 - Low Voltage Fuse 6A 300V (10kA AIC Rating)

Bussmann GLR-6 is a low-voltage fuse designed for circuit protection in industrial applications, providing reliable overcurrent protection for electrical systems. It features a 300V voltage rating and 6A current rating with 10kA interrupting capacity at 300V for effective fault protection. The fuse measures 2-1/4 inches in length with a 0.63-inch diameter ferrule connection and single-barrel construction, weighing 1 lb for robust performance. It complies with CE, CSA Certification Class 1422-01, and UL 248-14 Guide JDYX standards, ensuring industry compliance and safety. Typical applications include industrial control circuits, motor branch circuits, and electrical distribution systems requiring precise overcurrent protection.

Key Features & Specifications

• Type: Low-voltage current-limiting fuse with ferrule connection
• Voltage Rating: 300V AC/DC
• Current Rating: 6A
• Dimensions: 2-1/4" length x 0.63" diameter
• Standards: CE, CSA Certification Class 1422-01, UL 248-14 Guide JDYX
• Applications: Industrial control circuits, motor protection, electrical distribution
• Connection: Ferrule
• Barrels: 1
• AIC rating: 10,000A @ 300V
• Weight: 1 lb
• Family: GLR Series
• Fuse Class: GLR
• Country of Origin: Mexico

Product Identification

• UPC: 051712716291
• GTIN: 00051712716291
