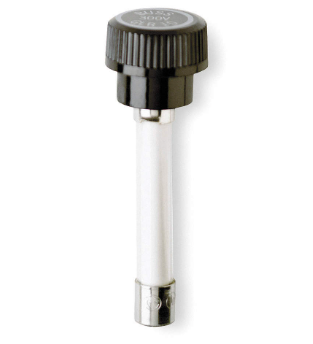

Bussmann GLR-4 - Low Voltage Fuse 4A 300V (10kA AIC Rating)

Bussmann GLR-4 is a low-voltage fuse designed for circuit protection in industrial applications, providing reliable overcurrent protection for electrical systems. It features a 4A current rating with a 300V voltage rating, ensuring safe operation under specified electrical conditions. The fuse construction includes a single-barrel design with ferrule connections and measures 2-1/4 inches in length with a 0.63-inch diameter, weighing 1 lb for straightforward installation. Certified to CE, CSA Class 1422-01, and UL 248-14 Guide JDYX standards, it meets rigorous safety requirements for industrial use. Typical applications include protection of control circuits, transformers, and other electrical equipment requiring precise 4A protection with a 10kA interrupting rating at 300V.

Key Features & Specifications

• Type: Low-voltage fuse, single-barrel construction with ferrule connections
• Voltage Rating: 300V AC/DC
• Current Rating: 4A
• Dimensions: 2-1/4 inch length, 0.63 inch diameter
• Standards: CE, CSA Certification Class 1422-01, UL 248-14 Guide JDYX
• Applications: Industrial control circuits, transformer protection, electrical equipment
• AIC rating: 10,000A @ 300V
• Connection: Ferrule
• Barrels: 1
• Weight: 1 lb
• Family: GLR Series
• Certification: CE, CSA, UL

Product Identification

• UPC: 051712716277
• GTIN: 00051712716277
