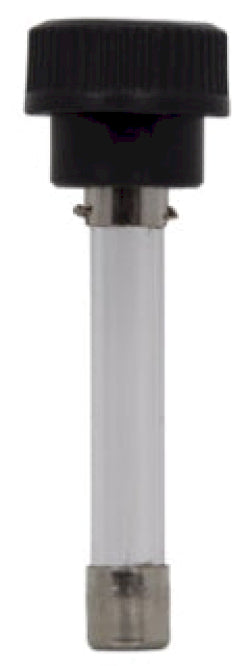

Bussmann GLR-10 - Low Voltage Fuse 10A 300V (10kA AIC Rating)

Bussmann GLR-10 is a low-voltage fuse designed for circuit protection in industrial electrical systems, providing reliable overcurrent protection with a 10A current rating and 300V voltage rating. The fuse features a compact cylindrical construction measuring 2-1/4 inches in length with 0.63-inch diameter ferrule connections and single-barrel design. It meets rigorous industry standards including CE, CSA Certification Class 1422-01, and UL 248-14 Guide JDYX compliance. This fuse is engineered for industrial control circuits, power distribution systems, and equipment protection applications requiring 10kA interrupting rating at 300V.

Key Features & Specifications

• Type: GLR series low-voltage fuse with ferrule connection, single barrel design
• Voltage Rating: 300V AC/DC
• Current Rating: 10A
• Dimensions: 2-1/4 inch length, 0.63 inch diameter
• Standards: CE, CSA Certification Class 1422-01, UL 248-14 Guide JDYX
• Applications: Industrial control circuits, power distribution systems, equipment protection
• AIC rating: 10,000A @ 300V
• Connection: Ferrule
• Barrels: 1
• Certification: CE, CSA, UL
• Weight: 1 lb

Product Identification

• UPC: 051712716338
• GTIN: 00051712716338
