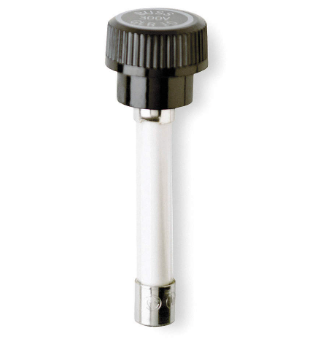

Bussmann GLR-1-6/10 - Current-Limiting Fuse 1A 300V (10kA AIC Rating)

Bussmann GLR-1-6/10 is a low-voltage current-limiting fuse designed for circuit protection in industrial electrical systems. It features a 1A current rating and 300V voltage rating with a 10kA interrupting capacity at 300V for reliable overcurrent protection. The fuse measures 2-1/4 inches in length with a 0.63-inch diameter ferrule connection and single-barrel construction weighing 1 lb. It complies with CE, CSA Certification Class 1422-01, and UL 248-14 Guide JDYX standards for safety and performance. This fuse is typically employed in industrial control circuits, motor branch circuits, and electrical distribution systems requiring precise current protection.

Key Features & Specifications

• Type: GLR series current-limiting fuse with ferrule connection
• Voltage Rating: 300V AC/DC
• Current Rating: 1A
• Dimensions: 2-1/4" length x 0.63" diameter
• Standards: CE, CSA Certification Class 1422-01, UL 248-14 Guide JDYX
• Applications: Industrial control circuits, motor protection, electrical distribution
• AIC rating: 10,000A @ 300V
• Connection: Ferrule
• Barrels: 1
• Weight: 1 lb
• Certification: CE, CSA, UL
• Family: GLR Series
• Country of Origin: Mexico

Product Identification

• UPC: 05171271623
• GTIN: 00051712716239
