Cutler Hammer
Price
Save $218.35
/
Condition
  • Low stock - 3 items left
  • Backordered, shipping soon
Call for Price

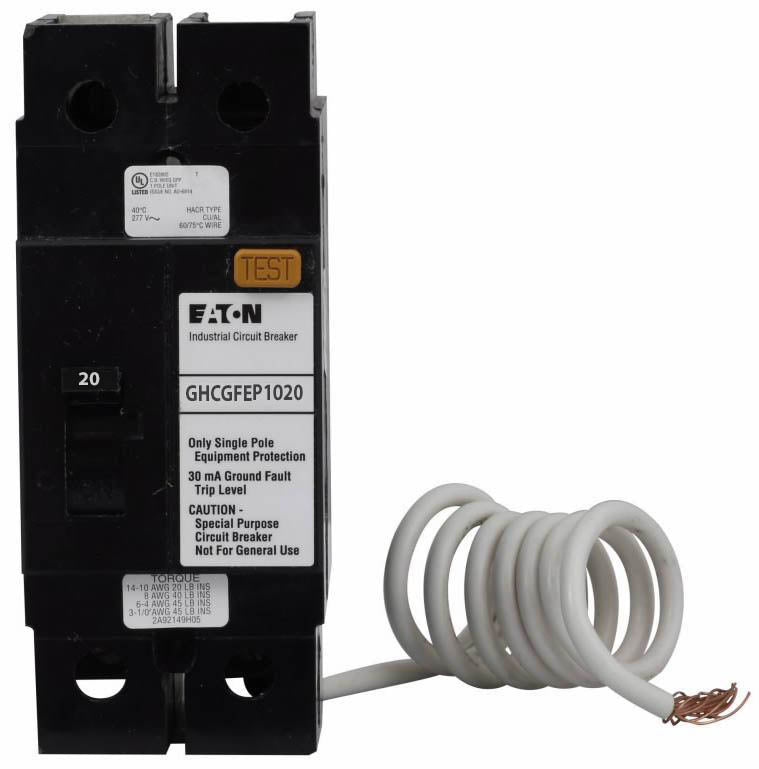

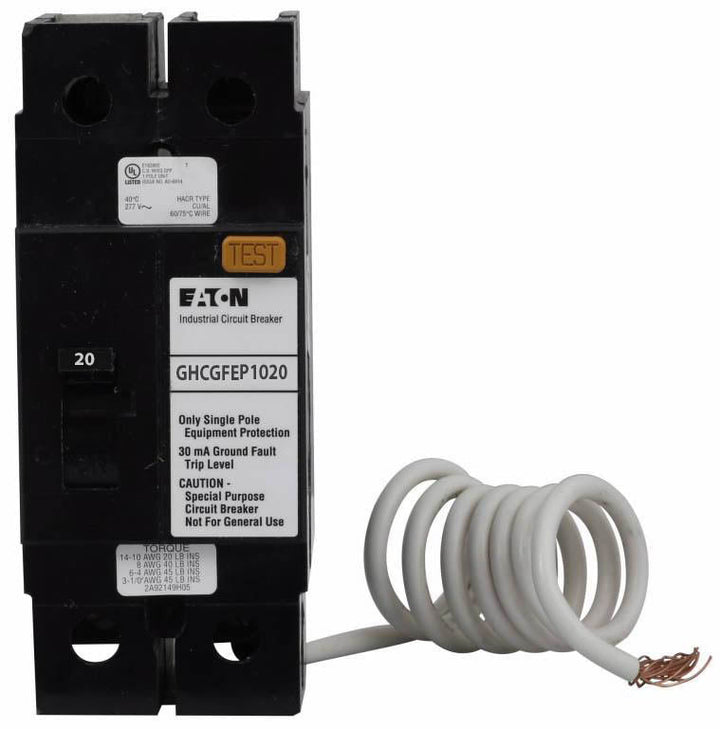

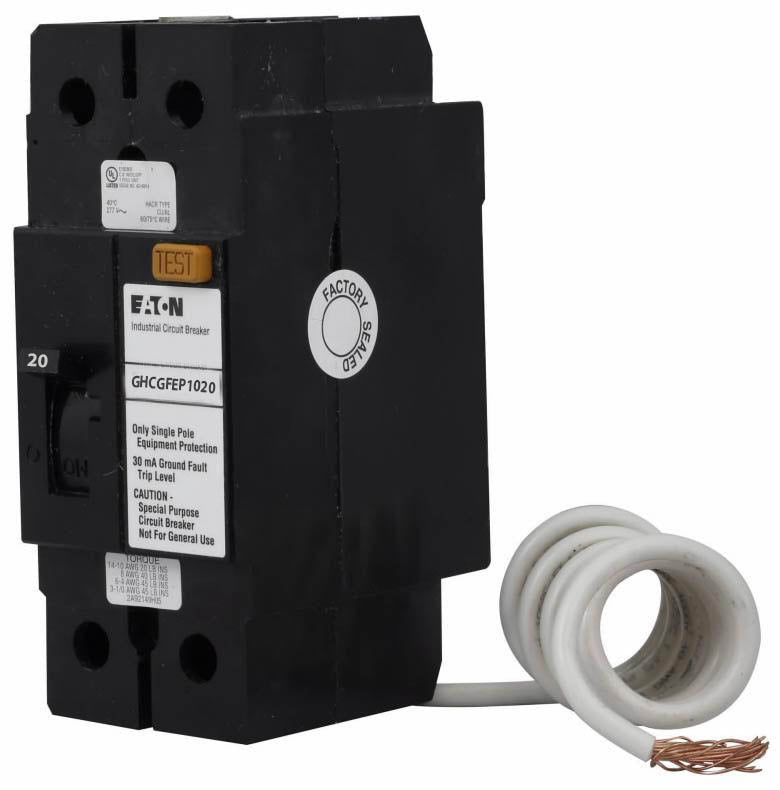

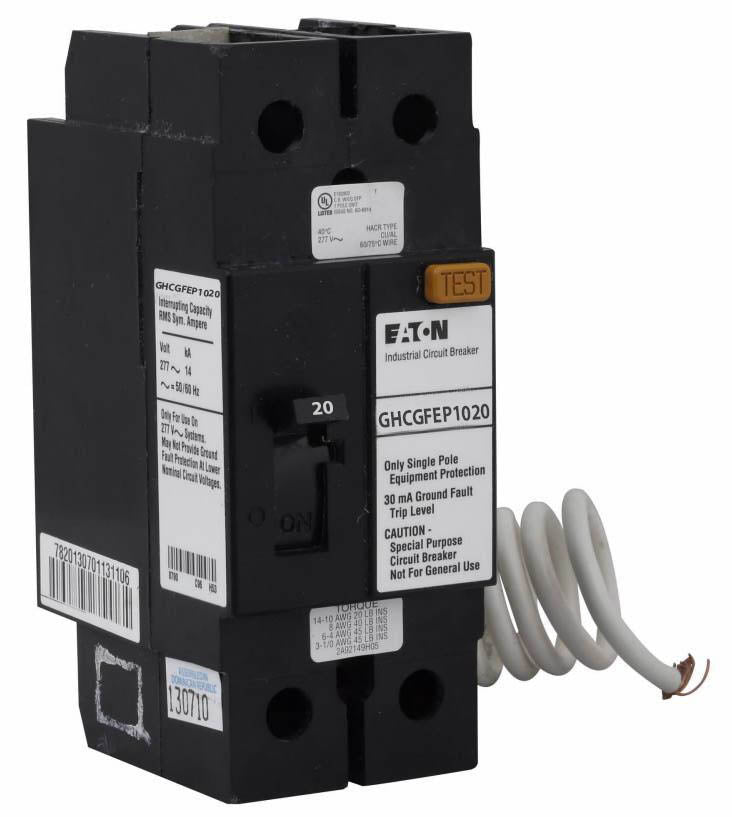

The Cutler Hammer GHCGFEP1020 is a molded case circuit breaker designed to provide reliable overcurrent and short-circuit protection for industrial electrical systems. It features a 20A current rating and a 277V AC voltage rating, suitable for single-phase applications. The compact, feed-thru unit is constructed with a G frame size, measuring 2.63 in x 4.88 in x 1 in and weighing 1.5 lb, and utilizes a thermal magnetic trip mechanism for both long-time and instantaneous protection functions. This breaker is UL 489 certified and offers an interrupting capacity of 14kA at 277V, with an operational temperature range of -25 to 70 °C. It is engineered for integration into panelboards and switchboards within commercial and light industrial facilities.

Key Features & Specifications
  • Type: Molded Case Circuit Breaker, Thermal Magnetic Protection, Feed-Thru Connection
  • Voltage Rating: 277V AC
  • Current Rating: 20A
  • Dimensions: 2.63 in (D) x 4.88 in (H) x 1 in (W)
  • Standards: UL 489
  • Applications: Panelboard and Switchboard Protection
  • Switch Type: Circuit Breaker
  • Configuration: Single Unit
  • Temp Rating: -25 to 70 °C (-13 to 158 °F)
  • Phase: 1
  • AIC rating: 14kA @ 277V
  • Connection: Feed-Thru
  • Poles: 1
  • Protection: Thermal Magnetic
  • Functions: Long Time and Instantaneous
  • Frame Size: G Frame
  • Certification: UL 489
  • Family: Series C
  • Country of Origin: Dominican Republic


Product Identification
  • UPC: 786679067499
  • GTIN: 00786679067499
