Cutler Hammer GHC3070 - 70A Molded Case Breaker (480V, 3P)
Cutler Hammer GHC3070 - 70A Molded Case Breaker (480V, 3P)
Cutler Hammer GHC3070 - 70A Molded Case Breaker (480V, 3P)
Cutler Hammer GHC3070 - 70A Molded Case Breaker (480V, 3P)
Cutler Hammer GHC3070 - 70A Molded Case Breaker (480V, 3P)
Cutler Hammer GHC3070 - 70A Molded Case Breaker (480V, 3P)

Cutler Hammer GHC3070 - 70A Molded Case Breaker (480V, 3P)

Cutler Hammer
Price
Save $1,113.53
/
Condition
  • Low stock - 3 items left
  • Backordered, shipping soon
Call for Price

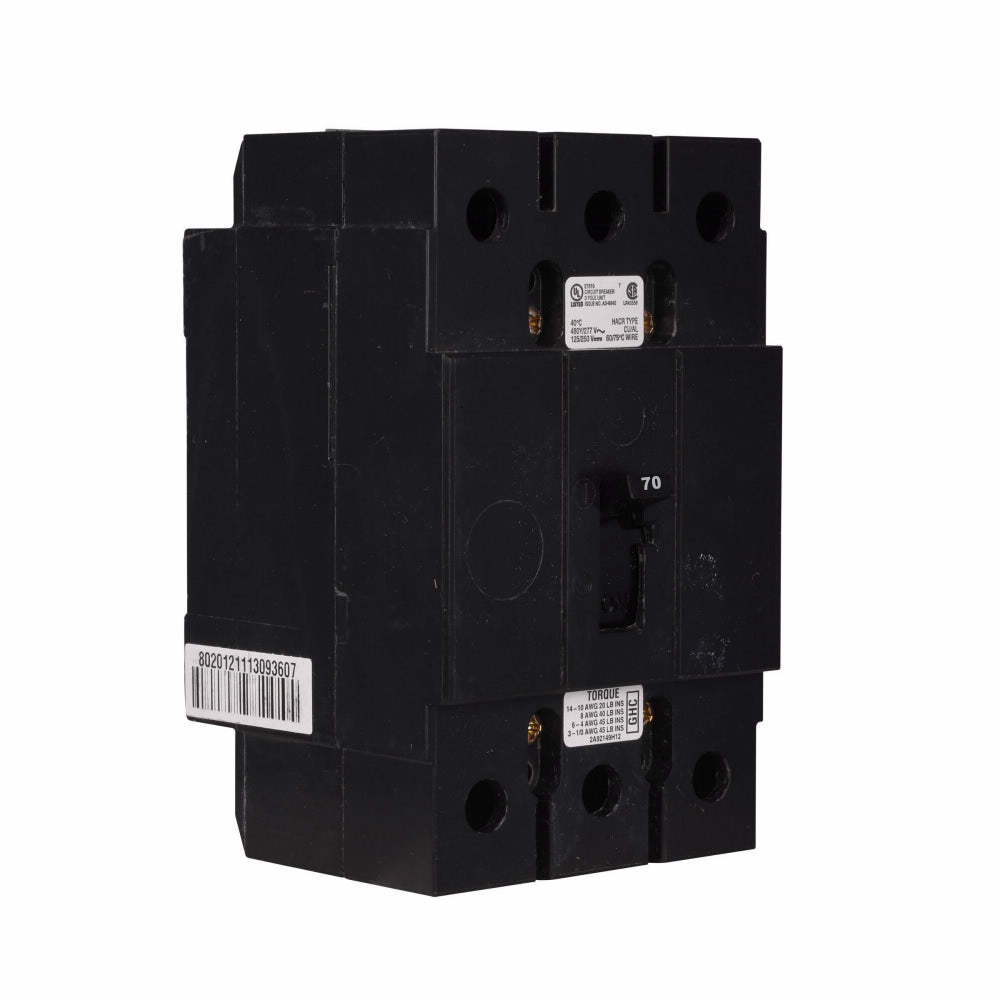

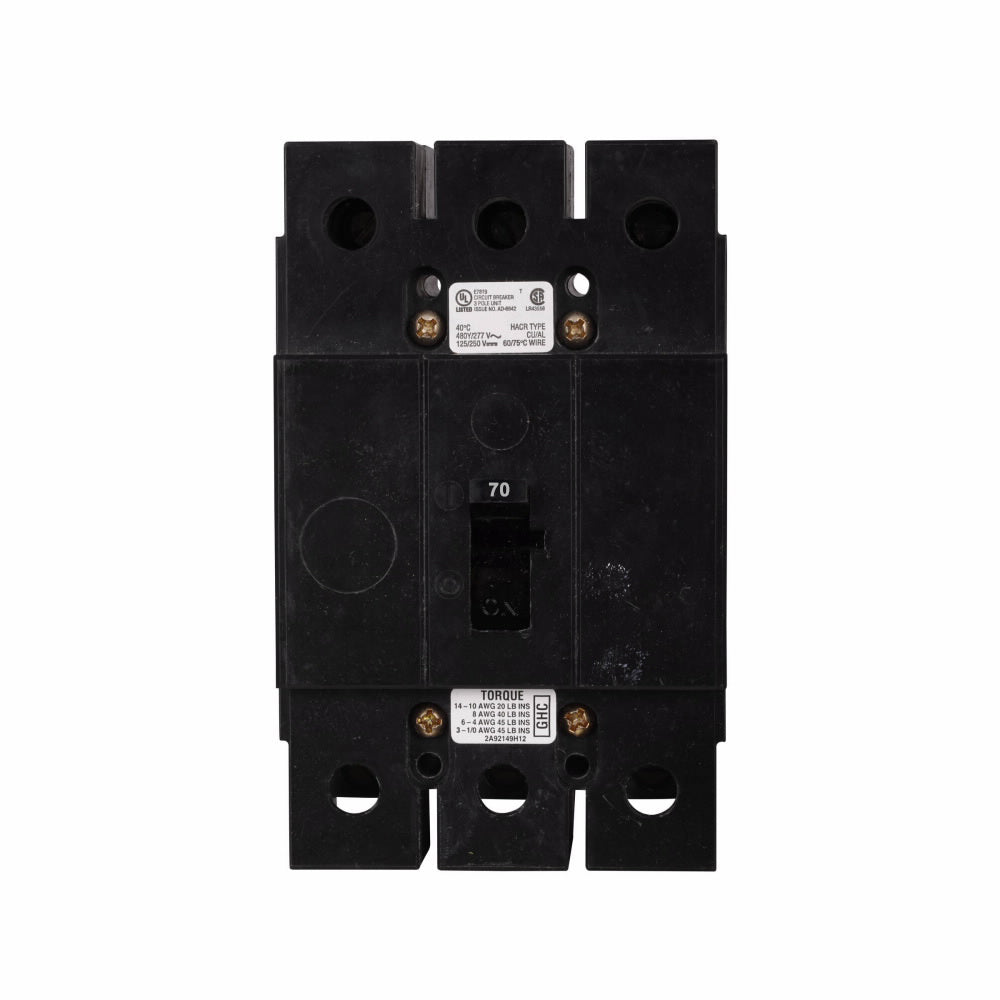

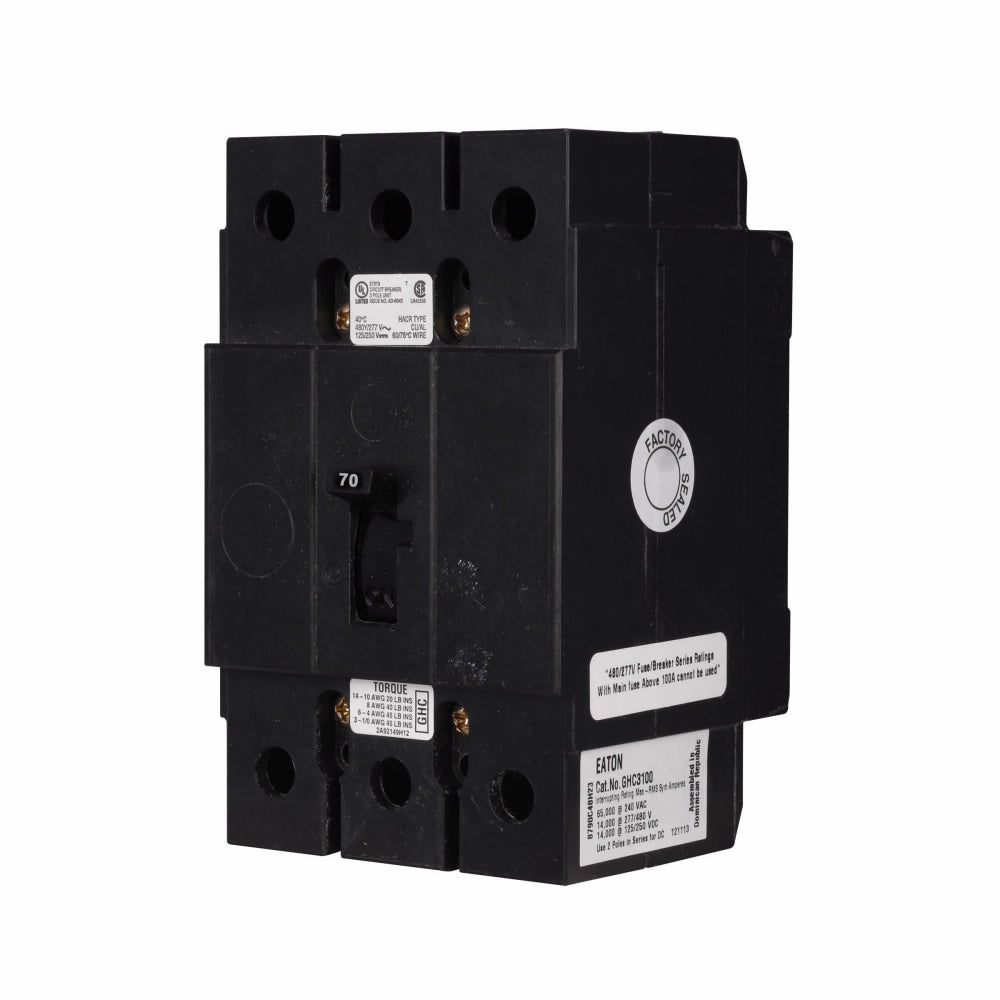

The Cutler Hammer GHC3070 is a molded case circuit breaker designed to provide reliable overcurrent and short-circuit protection for three-phase industrial electrical systems. It features a 70A current rating and a 480V AC voltage rating, housed within a compact G Frame measuring 2.63" x 4.88" x 3" (LxHxW) and weighing 1.8 lb. This UL Listed device utilizes a thermal-magnetic trip mechanism for both long-time and instantaneous protection, achieving an interrupting capacity of 14kA at 480V. Engineered for feed-thru connections with 10 to 1/0 AWG wire, it operates reliably in temperatures from -25°C to 70°C (-13°F to 158°F), making it suitable for panelboards, switchboards, and industrial control panels.

Key Features & Specifications
  • Type: Molded Case Circuit Breaker, Thermal-Magnetic Protection, G Frame
  • Voltage Rating: 480V AC
  • Current Rating: 70A
  • Dimensions: 2.63 in (Depth) x 4.88 in (Height) x 3 in (Width)
  • Standards: UL Listed
  • Applications: Panelboards, Switchboards, Industrial Control Panels
  • Phase: 3
  • AIC Rating: 14kA @ 480V
  • Connection: Feed-Thru
  • Poles: 3
  • Protection: Thermal Magnetic
  • Functions: Long Time and Instantaneous Trip
  • Frame Size: G Frame
  • Wire Size: 10 to 1/0 AWG
  • Temp Rating: -25°C to 70°C (-13°F to 158°F)
  • Weight: 1.8 lb
  • Family: Series C
  • Country of Origin: Dominican Republic


Product Identification
  • UPC: 786679174272
  • GTIN: 00786679174272
