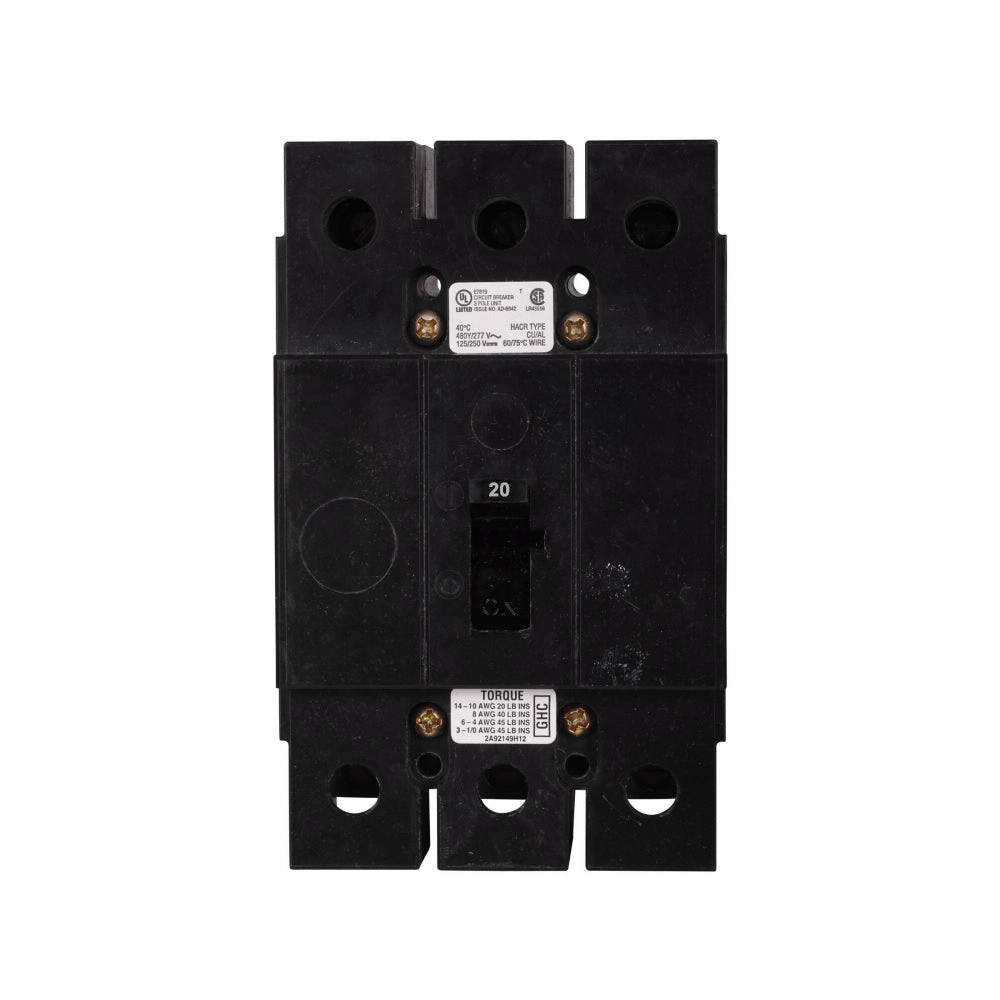

Cutler Hammer GHC3020 - Molded Case Breaker 20A 480V 3P
Cutler Hammer GHC3020 - Molded Case Breaker 20A 480V 3P
Cutler Hammer GHC3020 - Molded Case Breaker 20A 480V 3P
Cutler Hammer GHC3020 - Molded Case Breaker 20A 480V 3P
Cutler Hammer GHC3020 - Molded Case Breaker 20A 480V 3P
Cutler Hammer GHC3020 - Molded Case Breaker 20A 480V 3P

Cutler Hammer GHC3020 - Molded Case Breaker 20A 480V 3P

Cutler Hammer
Price
Save $411.93
/
Condition
  • Low stock - 3 items left
  • Backordered, shipping soon
Call for Price

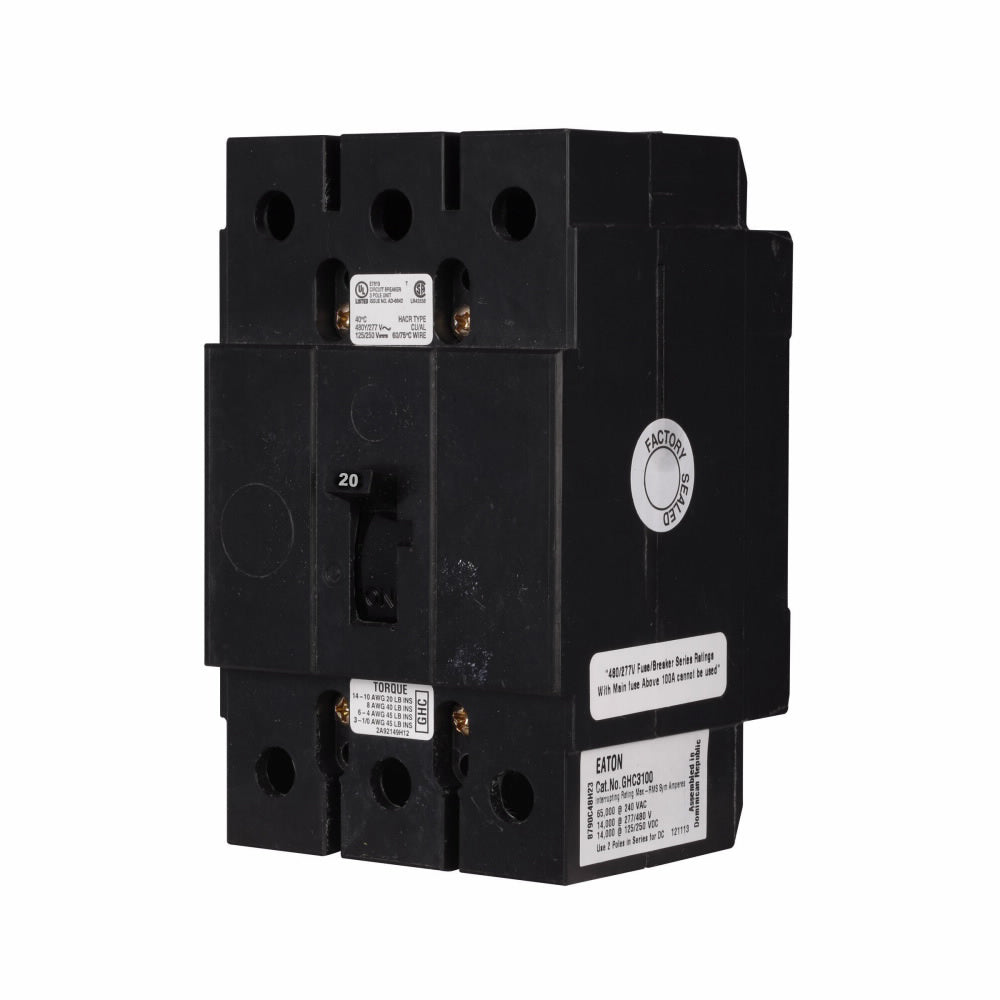

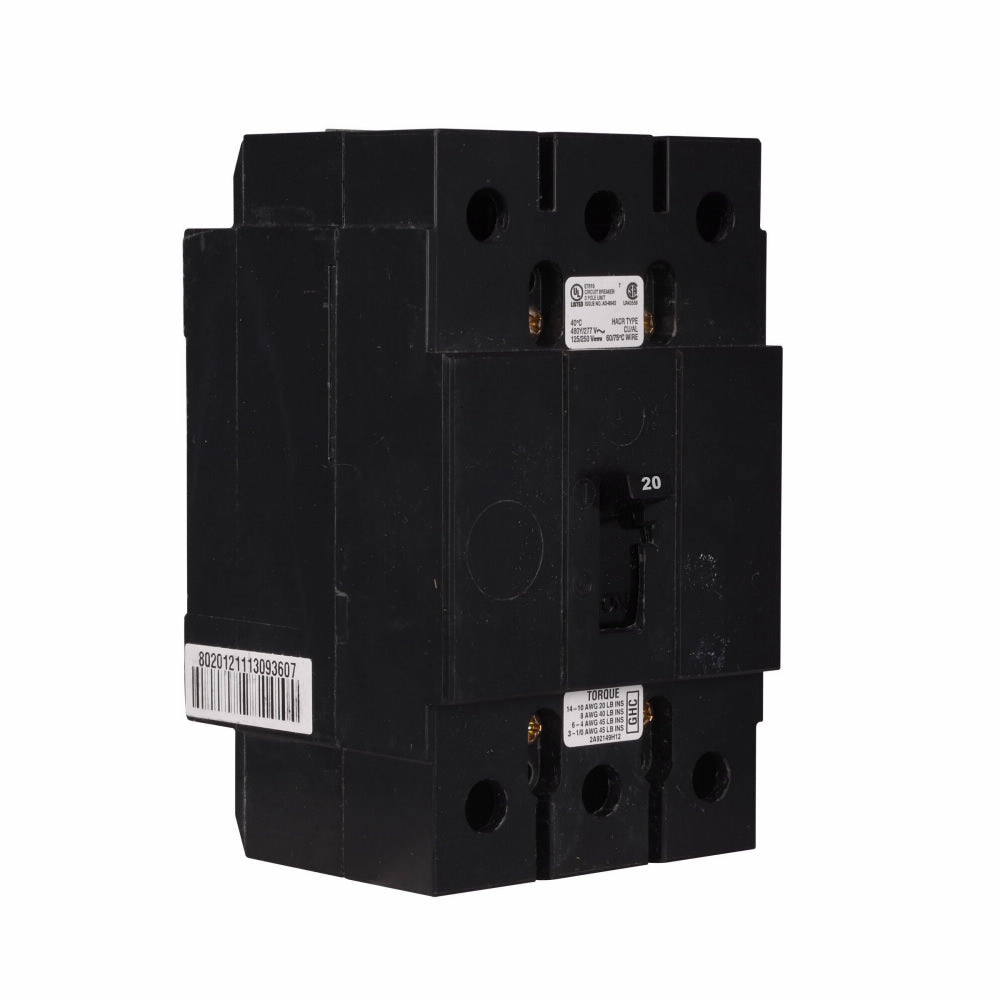

Cutler Hammer GHC3020 is a molded case circuit breaker designed for providing reliable overcurrent protection in three-phase industrial electrical systems. It features a 20A current rating and a 480V AC voltage rating, housed within a compact G Frame measuring 2.63" x 4.88" x 3" (LxHxW) and weighing 1.7 lb. The breaker is UL Listed and employs a thermal-magnetic trip mechanism for both long-time and instantaneous protection, with a 14kA interrupting capacity at 480V. Its feed-thru connection and -25 to 70 °C operational temperature range make it suitable for panelboards and motor control centers in commercial and industrial facilities.

Key Features & Specifications
  • Type: Molded Case Circuit Breaker, Thermal-Magnetic Protection, G Frame
  • Voltage Rating: 480V AC
  • Current Rating: 20A
  • Dimensions: 2.63 in (Depth) x 4.88 in (Height) x 3 in (Width)
  • Standards: UL Listed
  • Applications: Panelboards, Motor Control Centers, Industrial Distribution
  • Switch Type: Circuit Breaker
  • Configuration: Fixed
  • Temp Rating: -25 to 70 °C (-13 to 158 °F)
  • Phase: 3
  • AIC Rating: 14kA @ 480V
  • Connection: Feed-Thru
  • Poles: 3
  • Protection: Thermal Magnetic
  • Functions: Long Time and Instantaneous Trip
  • Frame Size: G Frame
  • Wire Size: 14 to 10 AWG
  • Certification: UL Listed
  • Country of Origin: Dominican Republic
  • Family: Series C


Product Identification
  • UPC: 786679174203
  • GTIN: 00786679174203
