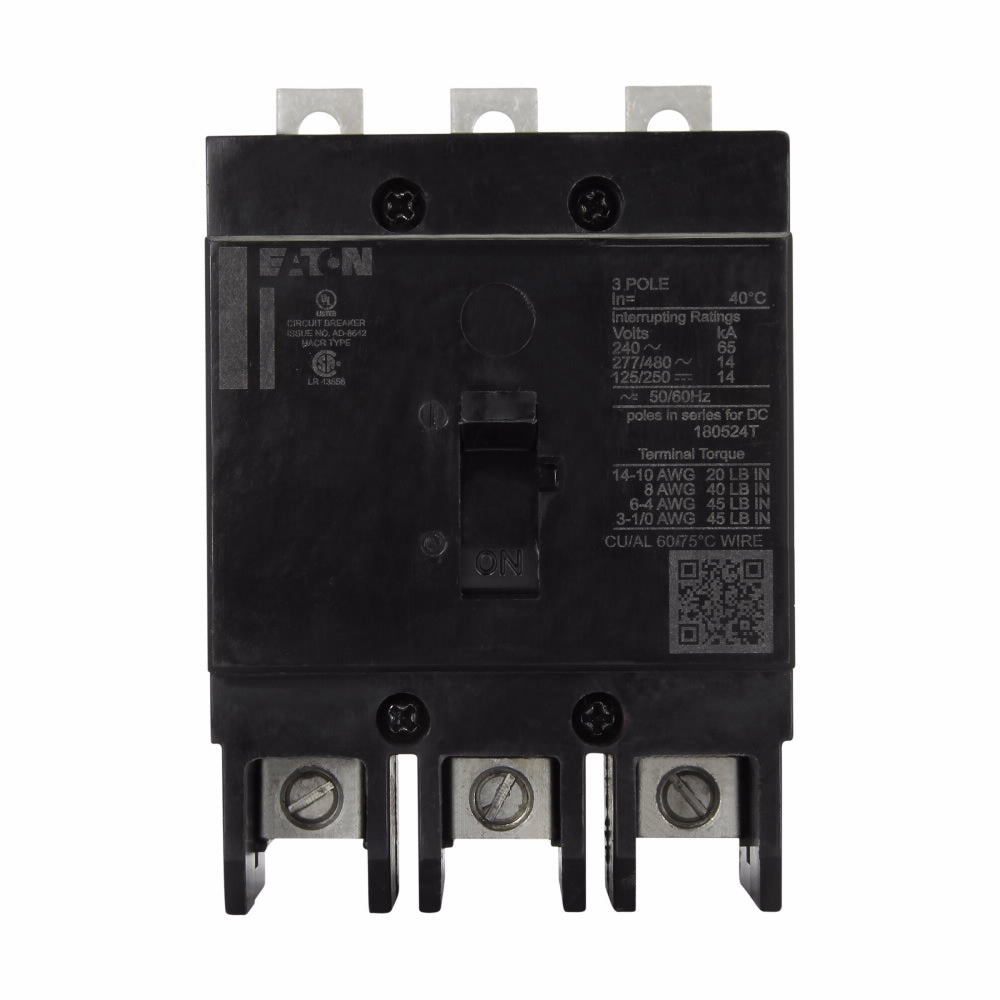

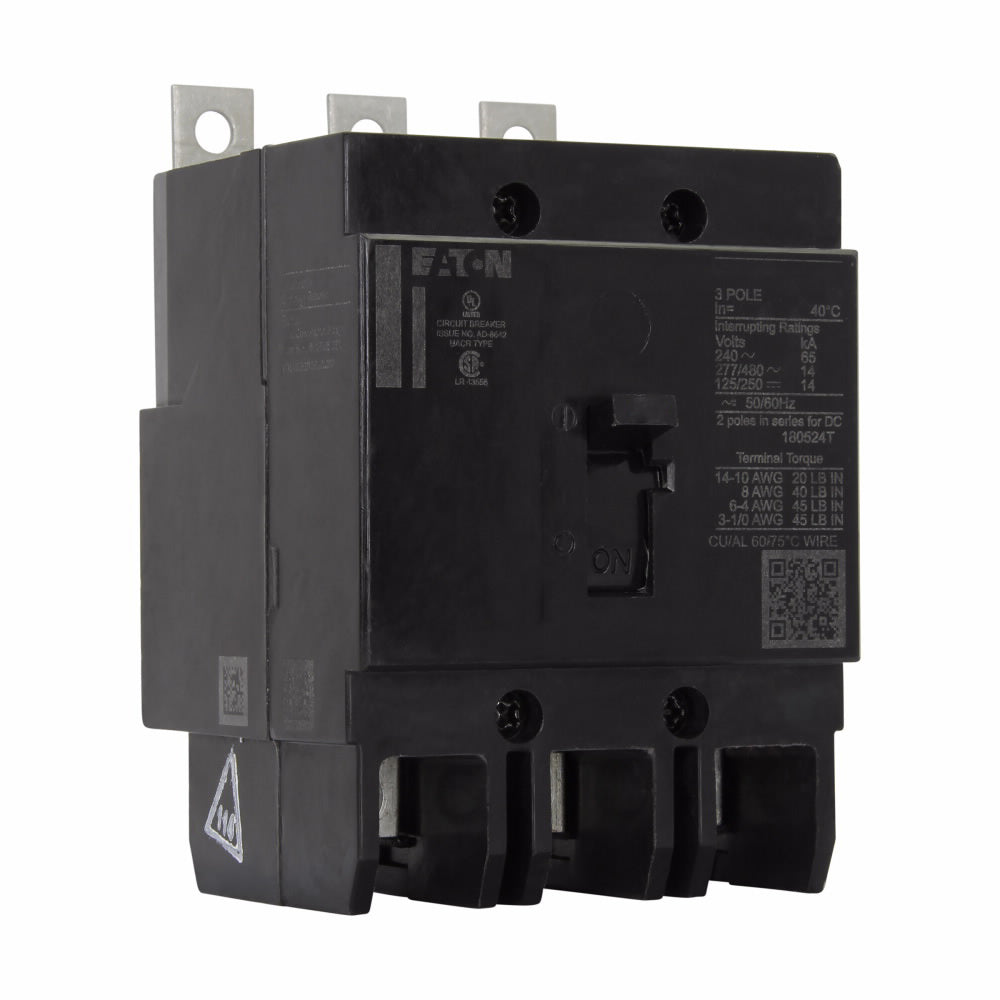

Eaton Cutler Hammer GHB3060S1 - Molded Case Circuit Breaker 60A 480V 3P (14kA AIC)
Eaton Cutler Hammer GHB3060S1 - Molded Case Circuit Breaker 60A 480V 3P (14kA AIC)
Eaton Cutler Hammer GHB3060S1 - Molded Case Circuit Breaker 60A 480V 3P (14kA AIC)
Eaton Cutler Hammer GHB3060S1 - Molded Case Circuit Breaker 60A 480V 3P (14kA AIC)
Eaton Cutler Hammer GHB3060S1 - Molded Case Circuit Breaker 60A 480V 3P (14kA AIC)
Eaton Cutler Hammer GHB3060S1 - Molded Case Circuit Breaker 60A 480V 3P (14kA AIC)

Eaton Cutler Hammer GHB3060S1 - Molded Case Circuit Breaker 60A 480V 3P (14kA AIC)

Cutler Hammer
Price
Save $1,373.38
/
Condition
  • Low stock - 4 items left
  • Backordered, shipping soon
Call for Price
Eaton Cutler Hammer GHB3060S1 is a molded case circuit breaker designed for providing reliable overcurrent and short-circuit protection in three-phase industrial power distribution systems. It features a 60A current rating and a 480V AC voltage rating, housed within a compact 100/GHB frame with dimensions of 2.63" D x 4" H x 3" W and a weight of 1.8 lb. This thermal-magnetic breaker utilizes a long-time and instantaneous (LI) trip function and a bolt-on, screw clamp terminal connection for secure installation. It is engineered to comply with UL 553 standards and carries both UL Listed and CSA Certified marks, ensuring suitability for demanding applications. The breaker is typically applied in Eaton Powerline panelboards, offering a 14kA interrupting capacity at 480V AC for robust system protection.

Key Features & Specifications
  • Type: Molded Case Circuit Breaker, Thermal-Magnetic Protection, Standard Type
  • Voltage Rating: 480V AC
  • Current Rating: 60A
  • Frame Size: 100/GHB
  • Poles: 3
  • Phase: 3
  • AIC Rating: 14kA @ 480V AC
  • Connection: Bolt-On
  • Terminal Connection: Screw Clamp
  • Trip Functions: LI (Long-Time and Instantaneous)
  • Protection: Thermal Magnetic
  • Breaker Type: Standard
  • Panel Type: Eaton Powerline Panelboards
  • Dimensions: 2.63 in (D) x 4 in (H) x 3 in (W)
  • Weight: 1.8 lb
  • Temp Rating: -2°C to 70°C (28°F to 158°F)
  • Standards: UL 553
  • Certification: CSA Certified, UL Listed
  • Family: Series C


Product Identification
  • UPC: 786679029800
  • GTIN: 00786679029800
