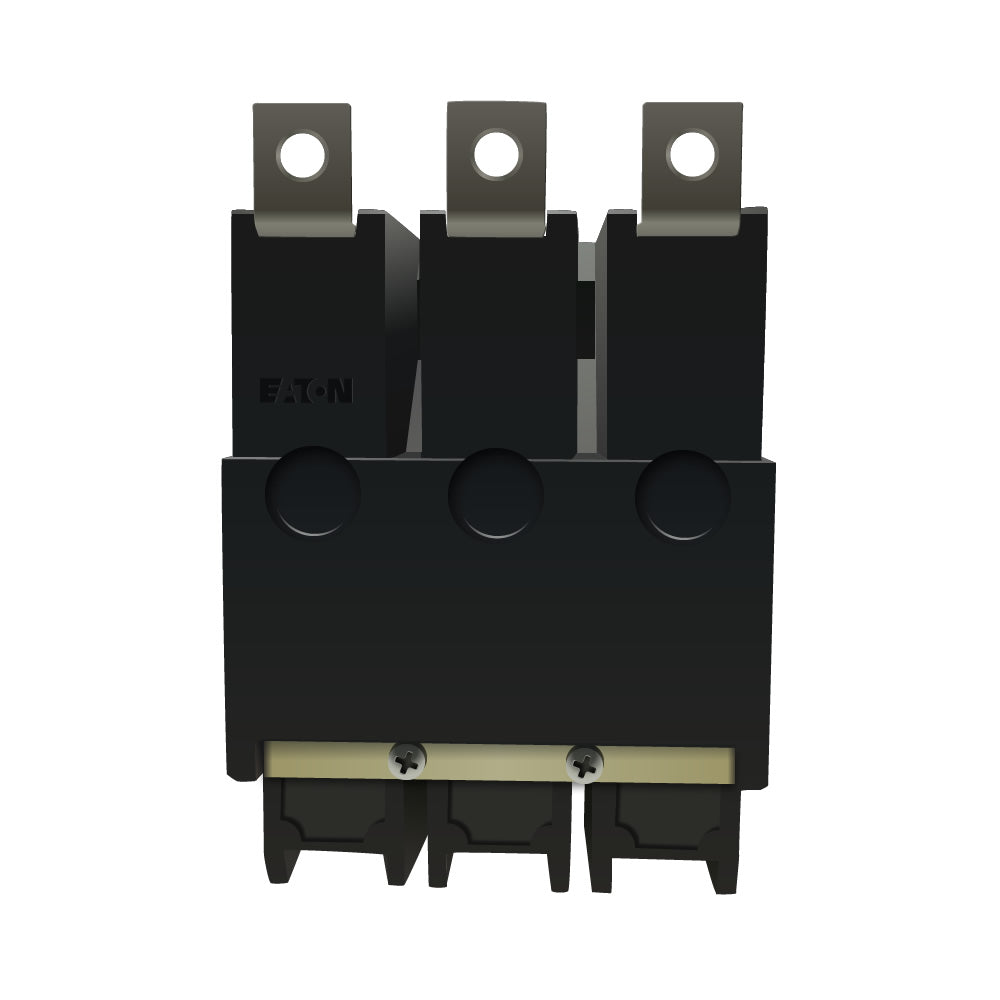

Cutler Hammer GHB3060 - Molded Case Circuit Breaker 60A 480V 3P
Cutler Hammer GHB3060 - Molded Case Circuit Breaker 60A 480V 3P
Cutler Hammer GHB3060 - Molded Case Circuit Breaker 60A 480V 3P
Cutler Hammer GHB3060 - Molded Case Circuit Breaker 60A 480V 3P

Cutler Hammer GHB3060 - Molded Case Circuit Breaker 60A 480V 3P

Cutler Hammer
Price
Save $753.25
/
Condition
  • In stock, ready to ship
  • Backordered, shipping soon
Call for Price
Cutler Hammer GHB3060 is a molded case circuit breaker designed for providing reliable overcurrent protection in three-phase industrial power distribution systems. It features a 60A current rating and a 480V AC voltage rating, housed within a compact 100-frame GHB series enclosure measuring 2.63" x 4" x 3" (DxHxW) and weighing 1.7 lb. This thermal-magnetic breaker utilizes a long-time and instantaneous (LI) trip function, is UL 551 listed and CSA certified, and offers a 14kA interrupting capacity at 480V for robust fault protection. Its bolt-on, three-pole configuration with screw-clamp terminals accommodates wire sizes from 10 to 1/0 AWG, making it suitable for integration into Eaton Powerline panelboards and similar commercial installations operating within an ambient temperature range of -2 to 70 °C.

Key Features & Specifications
  • Type: Molded Case Circuit Breaker, Thermal-Magnetic Protection, Bolt-On Connection
  • Voltage Rating: 480V AC
  • Current Rating: 60A
  • Frame Size: 100/GHB
  • Poles: 3
  • AIC Rating: 14kA @ 480V AC
  • Trip Type: LI (Long-time and Instantaneous)
  • Connection: Bolt-On, Screw Clamp Terminal
  • Wire Size: 10 to 1/0 AWG
  • Dimensions: 2.63 in (D) x 4 in (H) x 3 in (W)
  • Weight: 1.7 lb
  • Phase: 3
  • Operating Temperature: -2°C to 70°C (28°F to 158°F)
  • Standards & Certification: UL 551, UL Listed, CSA Certified
  • Panel Type: Compatible with Eaton Powerline Panelboards
  • Breaker Type: Standard


Product Identification
  • UPC: 786679048092
  • GTIN: 00786679048092
