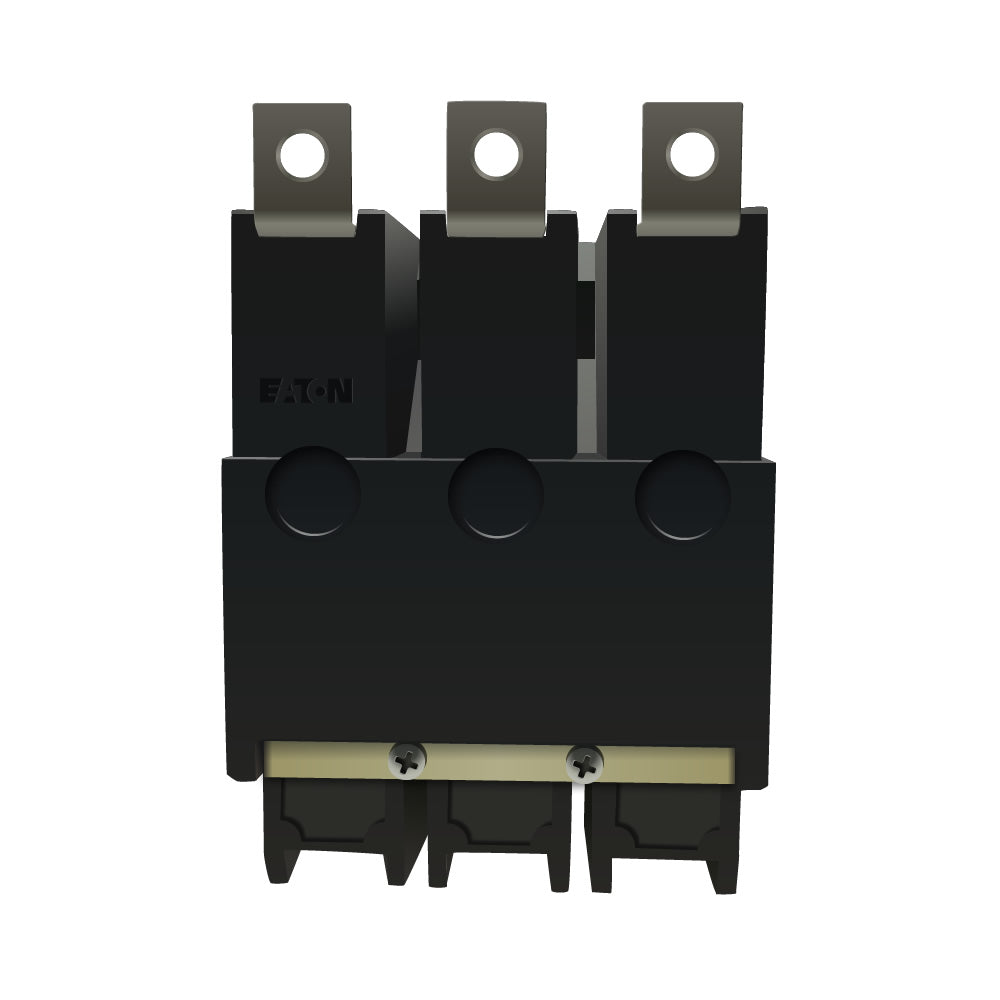

Cutler Hammer GHB3025 - Molded Case Circuit Breaker 25A 480V 3P
Cutler Hammer GHB3025 - Molded Case Circuit Breaker 25A 480V 3P
Cutler Hammer GHB3025 - Molded Case Circuit Breaker 25A 480V 3P
Cutler Hammer GHB3025 - Molded Case Circuit Breaker 25A 480V 3P

Cutler Hammer GHB3025 - Molded Case Circuit Breaker 25A 480V 3P

Cutler Hammer
Price
Save $753.25
/
Condition
  • In stock, ready to ship
  • Backordered, shipping soon
Call for Price
Cutler Hammer GHB3025 is a molded case circuit breaker designed for providing reliable overcurrent and short-circuit protection in three-phase industrial power distribution systems. It features a 25A current rating and a 480V AC voltage rating, housed within a compact 100/GHB frame measuring 2.63" x 4" x 3" (LxHxW) and weighing 1.75 lb. The breaker is constructed with a thermal-magnetic trip unit for long-time and instantaneous (LI) protection, utilizes a bolt-on connection with screw clamp terminals for 10 to 1/0 AWG wire, and complies with UL 530 standards. It is CSA Certified and UL Listed, making it suitable for installation in Eaton Powerline panelboards and similar industrial environments requiring a 14kA interrupting capacity at 480V.

Key Features & Specifications
  • Type: Molded Case Circuit Breaker, Thermal-Magnetic Protection, Bolt-On Connection
  • Voltage Rating: 480V AC
  • Current Rating: 25A
  • Frame Size: 100/GHB
  • Poles: 3
  • AIC Rating: 14kA @ 480V
  • Connection: Bolt-On, Screw Clamp Terminal
  • Wire Size: 10 to 1/0 AWG
  • Dimensions: 2.63 in (D) x 4 in (H) x 3 in (W)
  • Weight: 1.75 lb
  • Standards: UL 530
  • Certification: CSA Certified, UL Listed
  • Phase: 3
  • Temp Rating: -2°C to 70°C (28°F to 158°F)
  • Functions: Long-Time and Instantaneous (LI) Trip
  • Breaker Type: Standard
  • Panel Type: Eaton Powerline Panelboards
  • Protection: Thermal Magnetic


Product Identification
  • UPC: 786679172551
  • GTIN: 00786679172551
