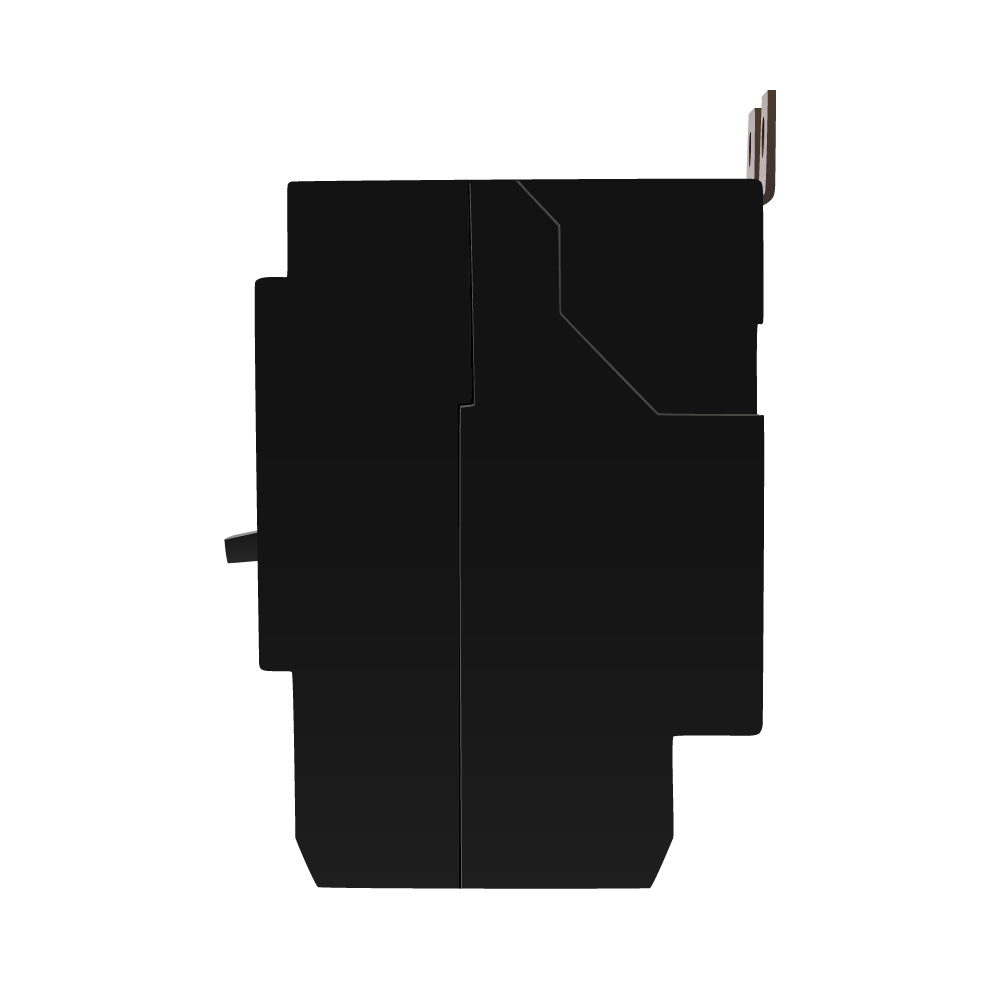

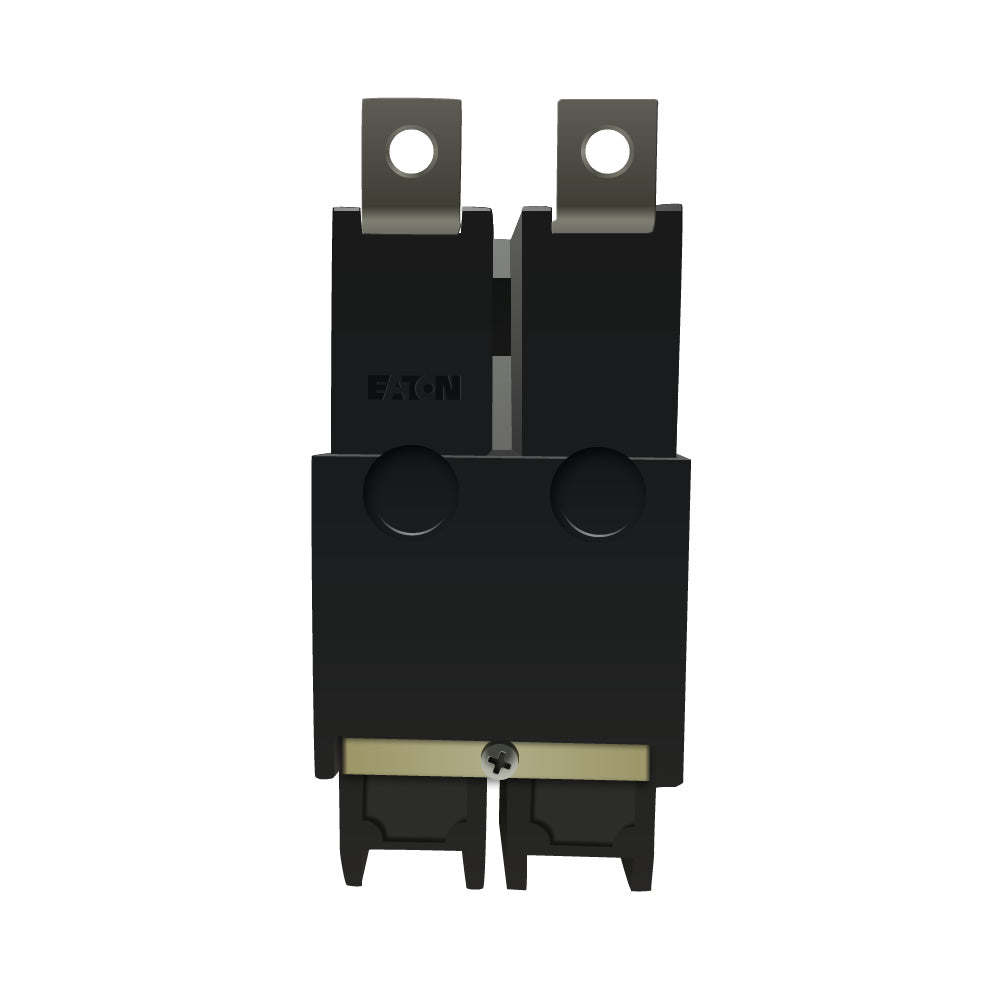

Cutler Hammer GHB2100 - Molded Case Breaker 100A 480V 2-Pole
Cutler Hammer GHB2100 - Molded Case Breaker 100A 480V 2-Pole
Cutler Hammer GHB2100 - Molded Case Breaker 100A 480V 2-Pole
Cutler Hammer GHB2100 - Molded Case Breaker 100A 480V 2-Pole

Cutler Hammer GHB2100 - Molded Case Breaker 100A 480V 2-Pole

Cutler Hammer
Price
Save $949.24
/
Condition
  • In stock, ready to ship
  • Backordered, shipping soon
Call for Price
Cutler Hammer GHB2100 is a molded case circuit breaker designed for providing reliable overcurrent protection in commercial and industrial electrical systems. It features a 100A current rating and a 480V AC voltage rating, housed within a compact 2.63" x 4" x 2" bolt-on frame. This thermal-magnetic breaker complies with UL 521 standards and is CSA Certified and UL Listed for safety, making it suitable for integration into Eaton Powerline panelboards to protect single-phase branch circuits.

Key Features & Specifications
  • Type: Molded Case Circuit Breaker, Thermal-Magnetic Protection, Standard Type
  • Voltage Rating: 480V AC
  • Current Rating: 100A
  • Frame Size: 100/GHB
  • AIC Rating: 14kA @ 480V
  • Poles: 2
  • Phase: 1
  • Connection: Bolt-On
  • Terminal Connection: Screw Clamp
  • Trip Functions: LI (Long-Time and Instantaneous)
  • Wire Size Range: 10 to 1/0 AWG
  • Operating Temperature: -2°C to 70°C (28°F to 158°F)
  • Dimensions: 2.63 in (D) x 4 in (H) x 2 in (W)
  • Weight: 1.15 lb
  • Standards & Certification: UL 521, CSA Certified, UL Listed
  • Panel Type: Eaton Powerline Panelboards
  • Family: Series C
  • Country of Origin: Dominican Republic


Product Identification
  • UPC: 786679911242
  • GTIN: 00786679911242
