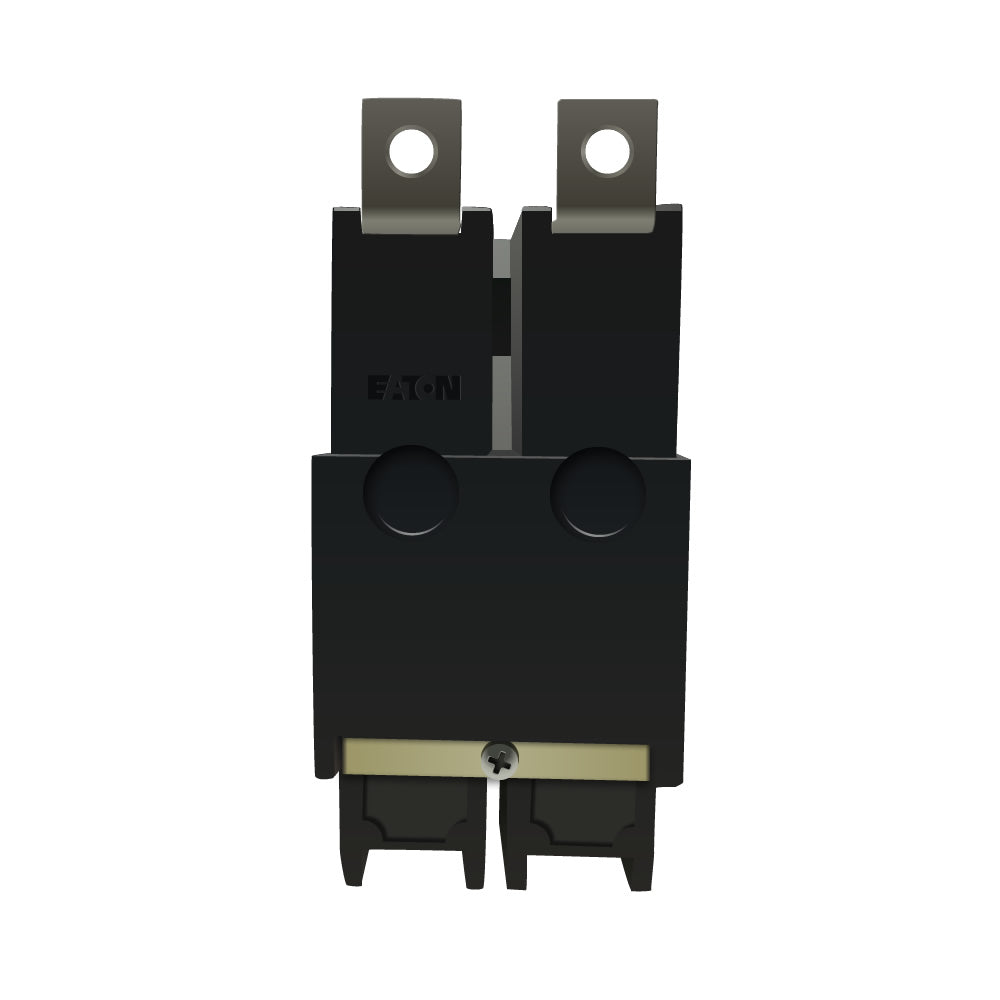

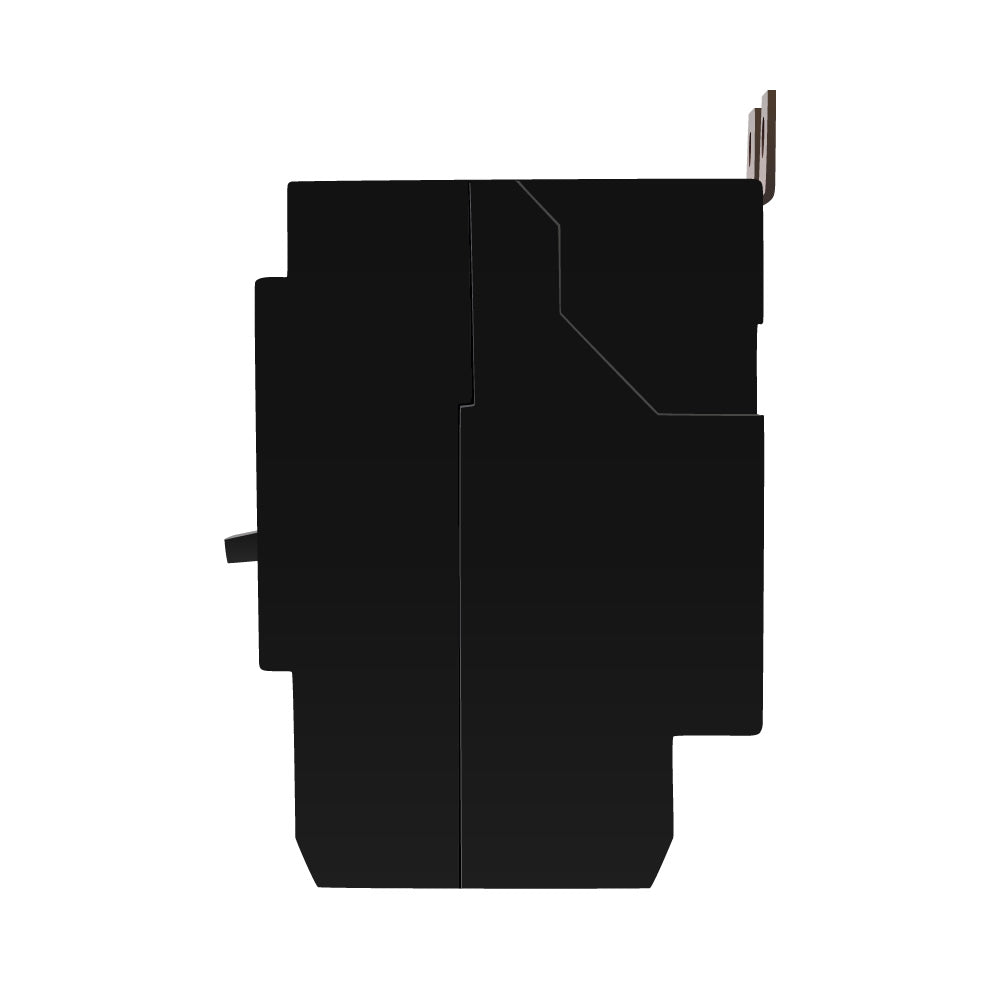

Cutler Hammer GHB2050 - Molded Case Breaker 50A 480V (14kA AIC)
Cutler Hammer GHB2050 - Molded Case Breaker 50A 480V (14kA AIC)
Cutler Hammer GHB2050 - Molded Case Breaker 50A 480V (14kA AIC)
Cutler Hammer GHB2050 - Molded Case Breaker 50A 480V (14kA AIC)

Cutler Hammer GHB2050 - Molded Case Breaker 50A 480V (14kA AIC)

Cutler Hammer
Price
Save $399.06
/
Condition
  • In stock, ready to ship
  • Backordered, shipping soon
Call for Price
Cutler Hammer GHB2050 is a molded case circuit breaker designed for providing reliable overcurrent protection in industrial power distribution systems. It features a 50A current rating and a 480V AC voltage rating, housed within a compact 2.63" x 4" x 2" bolt-on frame. This thermal-magnetic breaker complies with UL 515 standards and is CSA Certified and UL Listed, ensuring safe operation in environments from -2°C to 70°C. Its 14kA interrupting rating at 480V and compatibility with 10 to 1/0 AWG wiring make it suitable for protecting feeders and branch circuits in Eaton Powerline panelboards.

Key Features & Specifications
  • Type: Molded Case Circuit Breaker, Thermal-Magnetic Protection, Bolt-On Connection
  • Voltage Rating: 480V AC
  • Current Rating: 50A
  • Frame Size: 100/GHB
  • Poles: 2
  • Phase: 1
  • AIC Rating: 14kA @ 480V
  • Connection: Bolt-On, Screw Clamp Terminal
  • Wire Size: 10 to 1/0 AWG
  • Protection: LI (Long-Time and Instantaneous Trip)
  • Breaker Type: Standard
  • Panel Type: Eaton Powerline Panelboards
  • Standards: UL 515
  • Certification: CSA Certified, UL Listed
  • Operating Temperature: -2°C to 70°C (28°F to 158°F)
  • Dimensions: 2.63 in (D) x 4 in (H) x 2 in (W)
  • Weight: 1.05 lb
  • Family: Series C
  • Country of Origin: Dominican Republic


Product Identification
  • UPC: 786679911235
  • GTIN: 00786679911235
