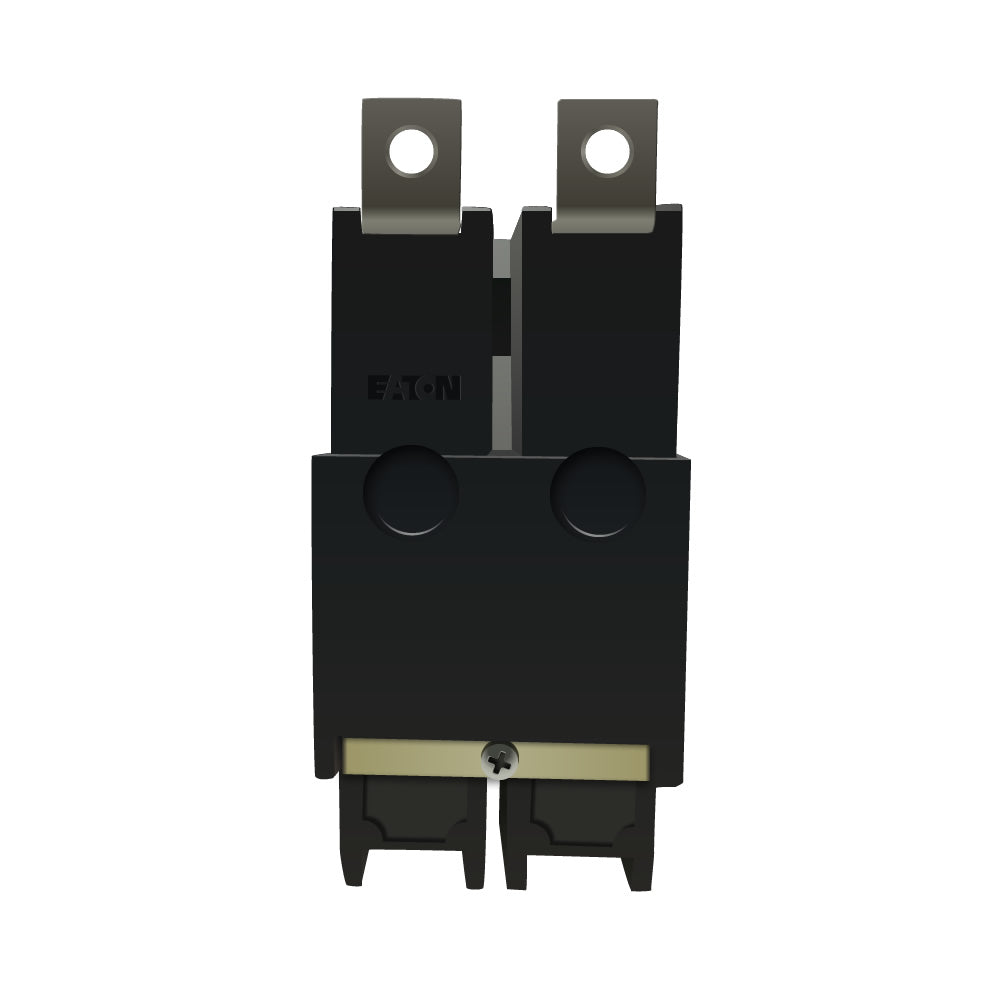

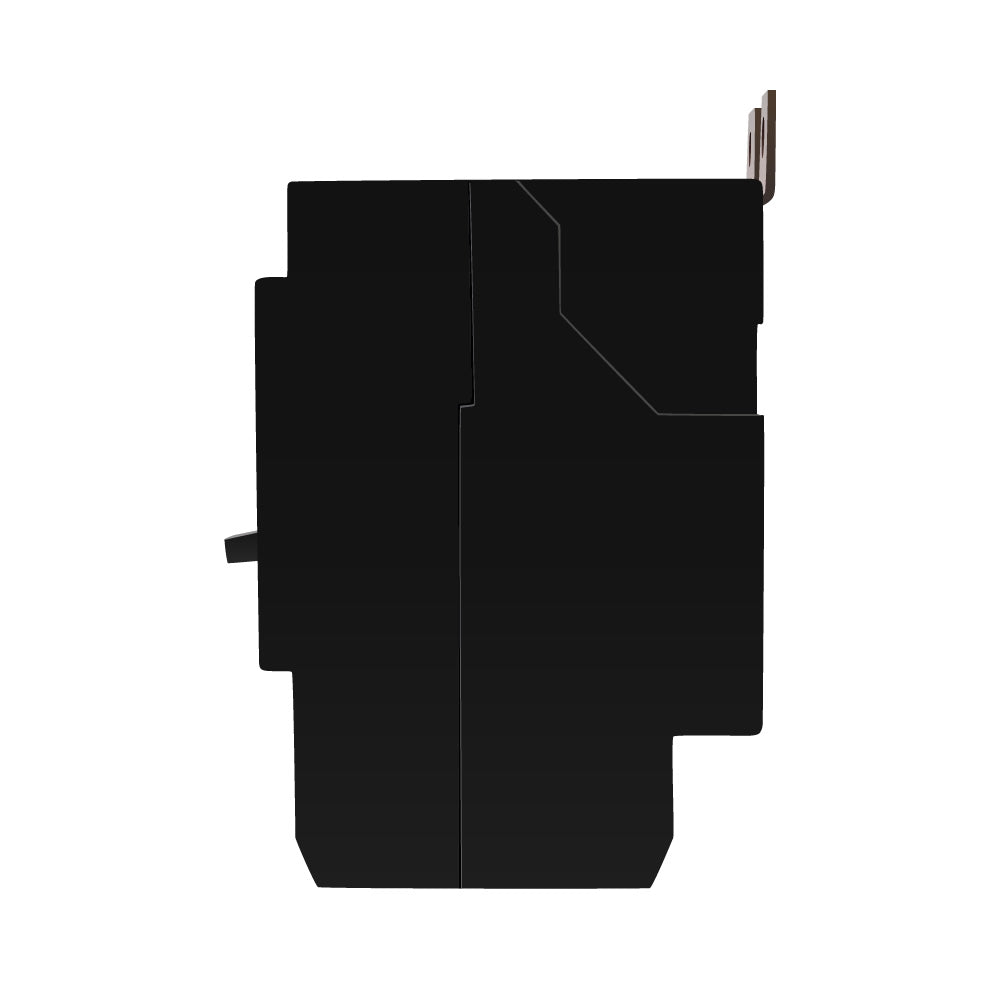

Cutler Hammer GHB2035 - Molded Case Circuit Breaker 35A 480V 2-Pole
Cutler Hammer GHB2035 - Molded Case Circuit Breaker 35A 480V 2-Pole
Cutler Hammer GHB2035 - Molded Case Circuit Breaker 35A 480V 2-Pole
Cutler Hammer GHB2035 - Molded Case Circuit Breaker 35A 480V 2-Pole

Cutler Hammer GHB2035 - Molded Case Circuit Breaker 35A 480V 2-Pole

Cutler Hammer
Price
Save $316.37
/
Condition
  • In stock, ready to ship
  • Backordered, shipping soon
Call for Price
Cutler Hammer GHB2035 is a molded case circuit breaker designed for providing reliable overcurrent and short-circuit protection in industrial electrical systems. It features a 35A current rating and a 480V AC voltage rating, housed within a compact 2.63" x 4" x 2" (LxHxW) frame with a bolt-on connection and screw clamp terminals for secure wiring. This thermal-magnetic breaker complies with UL 512 standards and is CSA Certified and UL Listed, ensuring safe operation in environments from -2°C to 70°C. It is engineered for integration into Eaton Powerline panelboards, offering protection for equipment and conductors sized from 10 to 1/0 AWG in single-phase applications.

Key Features & Specifications
  • Type: Molded Case Circuit Breaker, Thermal Magnetic Protection, Standard Type
  • Voltage Rating: 480V AC
  • Current Rating: 35A
  • Dimensions: 2.63 in (Depth) x 4 in (Height) x 2 in (Width)
  • Standards: UL 512
  • Applications: Industrial panelboard protection for equipment and conductors
  • Switch Type: Circuit Breaker
  • Configuration: Bolt-On
  • Temp Rating: -2°C to 70°C (28°F to 158°F)
  • Phase: 1
  • AIC Rating: 14kA @ 480V
  • Connection: Bolt-On
  • Poles: 2
  • Protection: Thermal Magnetic
  • Functions: Long-Time and Instantaneous (LI) Trip
  • Frame Size: 100/GHB
  • Breaker Type: Standard
  • Wire Size: 10 to 1/0 AWG
  • Certification: CSA Certified, UL Listed
  • Terminal Connection: Screw Clamp
  • Panel Type: Eaton Powerline Panelboards
  • Weight: 1.1 lb


Product Identification
  • UPC: 786679172506
  • GTIN: 00786679172506
