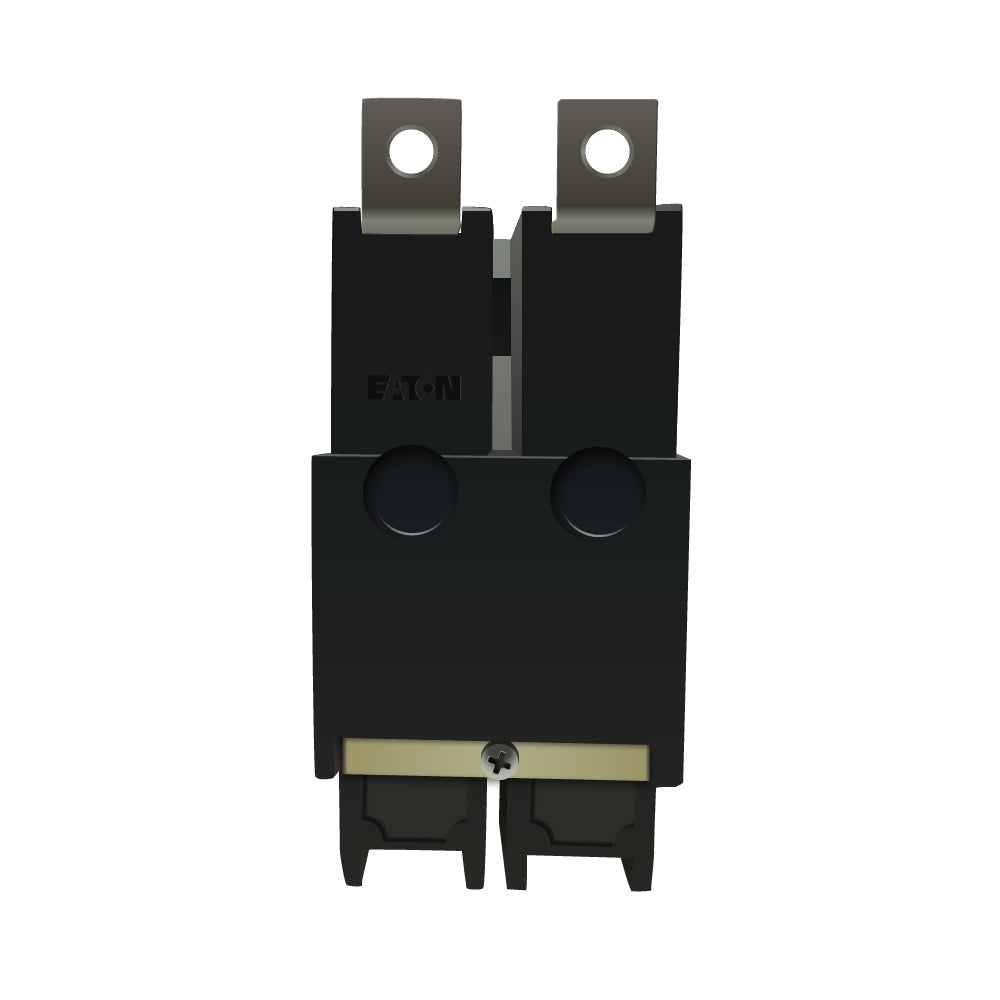

Cutler Hammer GHB2020 is a molded case circuit breaker designed for providing reliable overcurrent and short-circuit protection in commercial and industrial electrical systems. It features a 20A current rating and a 480V AC voltage rating, housed in a compact, bolt-on design with dimensions of 2.63 in (D) x 4 in (H) x 2 in (W) and a weight of 0.95 lb. This thermal-magnetic breaker is UL 507 listed and CSA certified, ensuring compliance with key safety standards for use in Eaton Powerline panelboards and similar single-phase applications.

Key Features & Specifications
  • Type: Molded Case Circuit Breaker, Thermal-Magnetic Protection, Bolt-On Connection
  • Voltage Rating: 480V AC
  • Current Rating: 20A
  • Frame Size: 100/GHB
  • AIC Rating: 14kA @ 480V
  • Poles: 2
  • Phase: 1
  • Trip Functions: LI (Long-Time and Instantaneous)
  • Terminal Connection: Screw Clamp
  • Wire Size Range: 10 to 1/0 AWG
  • Operating Temperature: -2°C to 70°C (28°F to 158°F)
  • Standards & Certification: UL 507, CSA Certified, UL Listed
  • Dimensions: 2.63 in x 4 in x 2 in (Depth x Height x Width)
  • Weight: 0.95 lb
  • Panel Type: Eaton Powerline Panelboards
  • Country of Origin: Dominican Republic


Product Identification
  • UPC: 786679911204
  • GTIN: 00786679911204
