Eaton GHB1060 - 60A Molded Case Breaker (480V, 1-Pole)
Eaton GHB1060 - 60A Molded Case Breaker (480V, 1-Pole)
Eaton GHB1060 - 60A Molded Case Breaker (480V, 1-Pole)
Eaton GHB1060 - 60A Molded Case Breaker (480V, 1-Pole)

Eaton GHB1060 - 60A Molded Case Breaker (480V, 1-Pole)

Cutler Hammer
Price
Save $131
/
Condition
  • In stock, ready to ship
  • Backordered, shipping soon
Call for Price

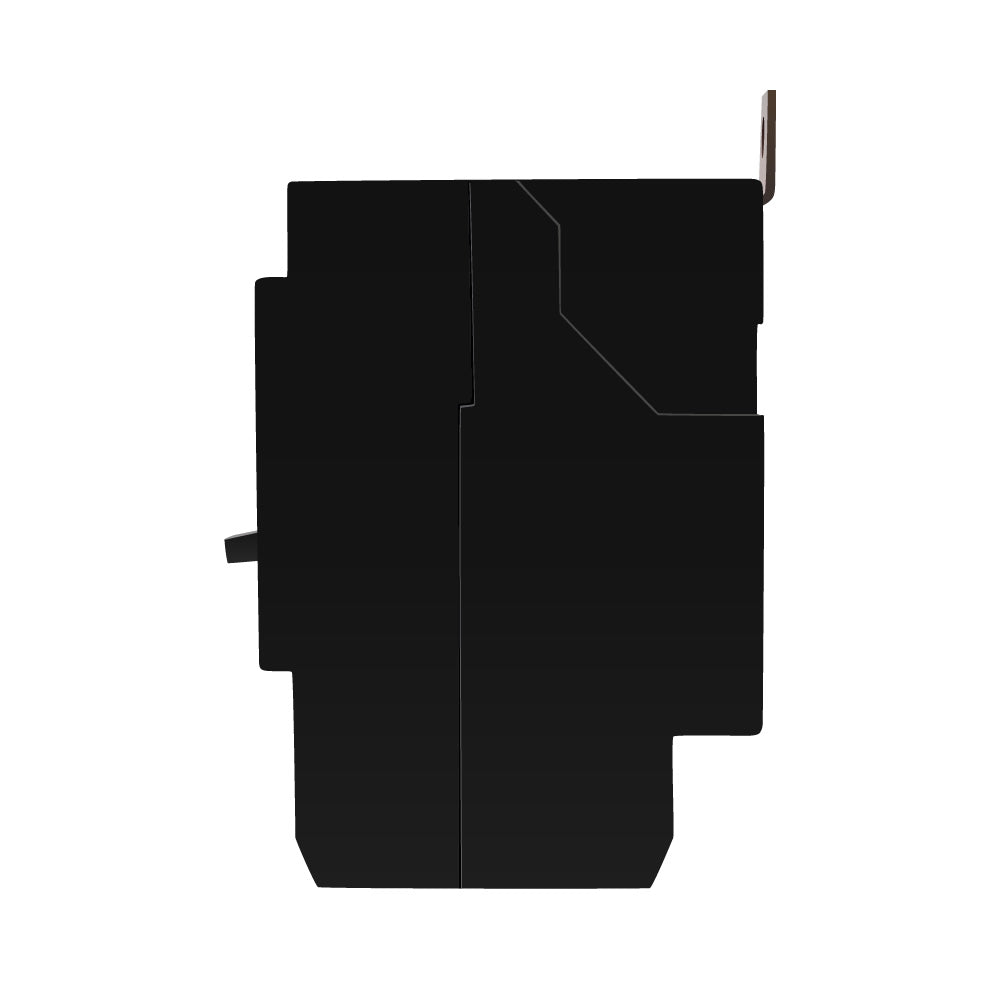

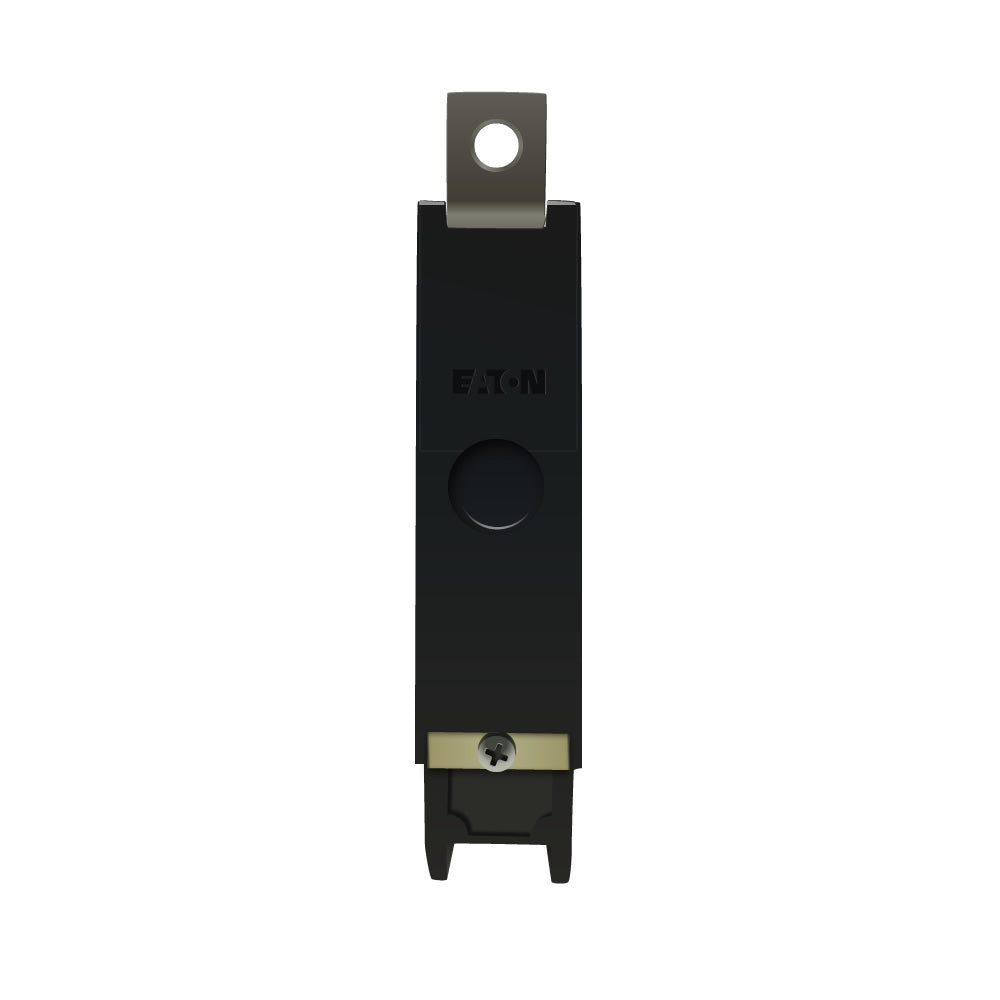

Eaton Cutler-Hammer GHB1060 is a molded case circuit breaker designed for providing reliable overcurrent and short-circuit protection in industrial and commercial electrical systems. It features a 60A current rating and a 480V AC voltage rating, housed within a compact 100/GHB frame measuring 2.63" x 4" x 1" (LxHxW) and weighing 0.9 lb. The breaker utilizes a thermal-magnetic trip unit with Long-time and Instantaneous (LI) functions for coordinated protection and is constructed for bolt-on connection with screw clamp terminals. It complies with UL 500 standards and carries both UL Listed and CSA certifications, ensuring suitability for use in Eaton Powerline panelboards and similar single-phase applications where a 14kA interrupting rating at 277V is required, operating effectively within an ambient temperature range of -2°C to 70°C (28°F to 158°F).

Key Features & Specifications
  • Type: Molded Case Circuit Breaker, Standard, Thermal-Magnetic Protection
  • Voltage Rating: 480V AC
  • Current Rating: 60A
  • Dimensions: 2.63 in (Depth) x 4 in (Height) x 1 in (Width)
  • Standards: UL 500
  • Applications: Industrial and Commercial Electrical Distribution
  • Switch Type: Circuit Breaker
  • Configuration: Single Unit
  • Phase: 1
  • AIC Rating: 14kA @ 277V
  • Connection: Bolt-On
  • Poles: 1
  • Protection: Thermal Magnetic
  • Functions: Long-Time and Instantaneous Trip (LI)
  • Frame Size: 100/GHB
  • Trip Type: Thermal-Magnetic
  • Panel Type: Eaton Powerline Panelboards
  • Breaker Type: Standard
  • Temp Rating: -2°C to 70°C (28°F to 158°F)
  • Terminal Connection: Screw Clamp
  • Certification: CSA Certified, UL Listed
  • Family: Series C


Product Identification
  • UPC: 786679021736
  • GTIN: 00786679021736
