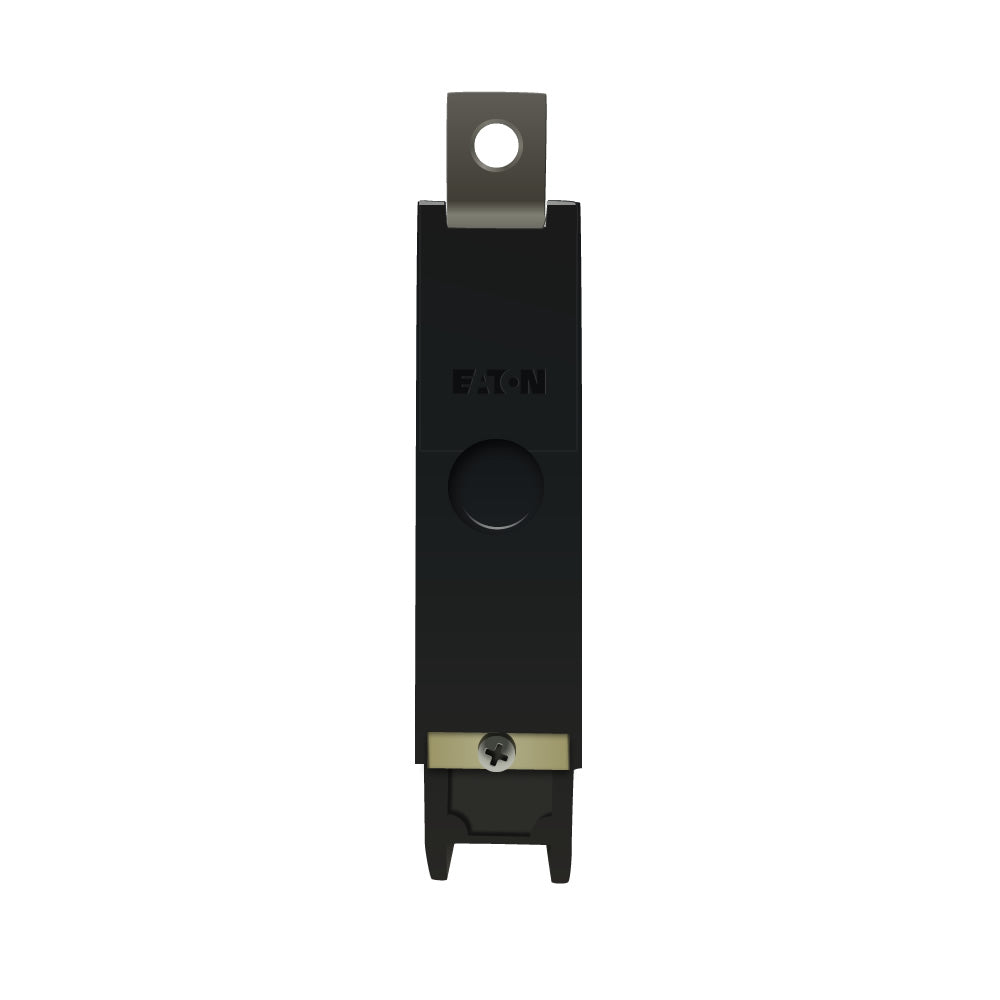

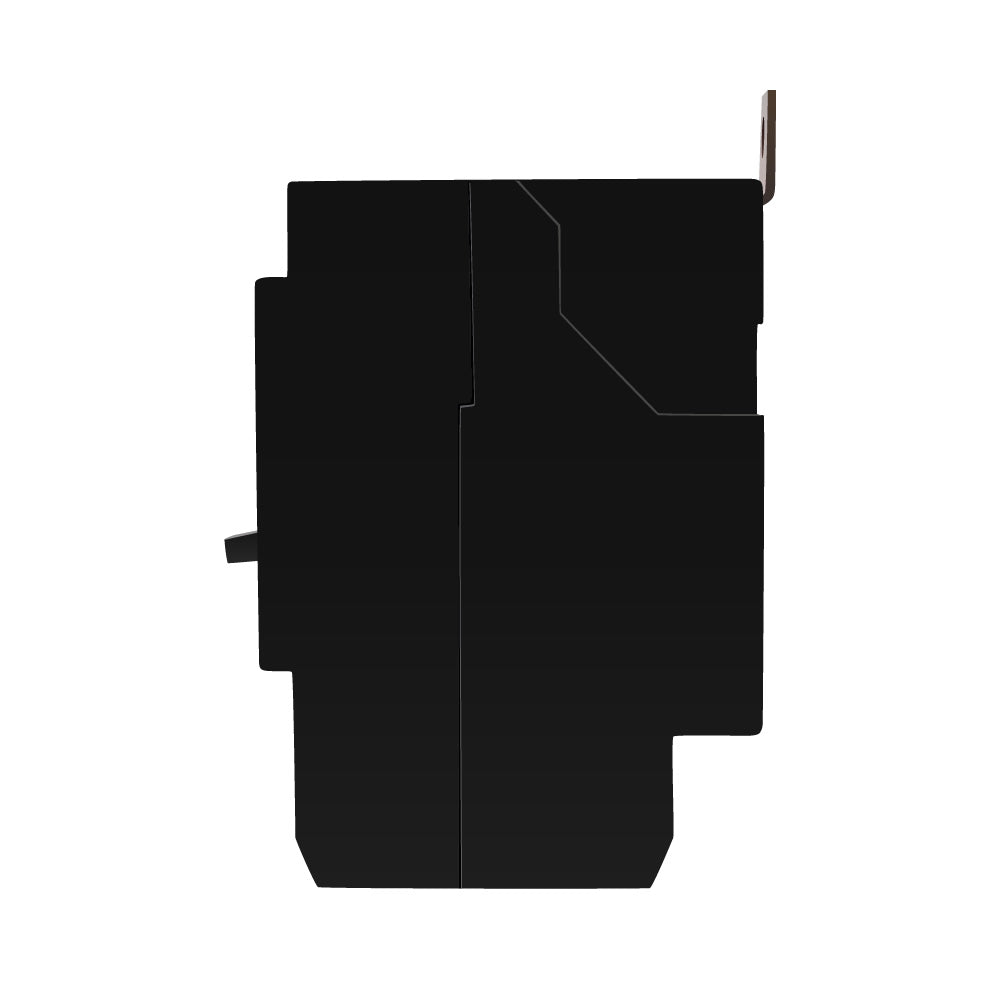

Eaton GHB1025 - 1-Pole 25A Circuit Breaker (480V, 14kA AIC)
Eaton GHB1025 - 1-Pole 25A Circuit Breaker (480V, 14kA AIC)
Eaton GHB1025 - 1-Pole 25A Circuit Breaker (480V, 14kA AIC)
Eaton GHB1025 - 1-Pole 25A Circuit Breaker (480V, 14kA AIC)

Eaton GHB1025 - 1-Pole 25A Circuit Breaker (480V, 14kA AIC)

Cutler Hammer
Price
Save $137.70
/
Condition
  • In stock, ready to ship
  • Backordered, shipping soon
Call for Price
Eaton Cutler-Hammer GHB1025 is a molded case circuit breaker designed for providing reliable overcurrent protection in single-phase electrical systems. It features a 25A current rating and a 480V voltage rating, housed within a compact 100/GHB frame measuring 2.63" x 2.00" x 1.00" (LxHxW) and weighing 0.63 lb. This thermal-magnetic breaker, compliant with UL 494 and certified by CSA and UL, offers LI (Long-time and Instantaneous) trip functions and a 14kA interrupting capacity at 277V for robust fault protection. Its bolt-on connection with screw clamp terminals, designed for wires from 14 to 10 AWG, and an operational temperature range of -2° to 70°C make it suitable for installation in Eaton Powerline panelboards across various industrial and commercial applications.

Key Features & Specifications
  • Type: Molded Case Circuit Breaker, Thermal-Magnetic Protection, Standard Type
  • Voltage Rating: 480V AC
  • Current Rating: 25A
  • Dimensions: 2.63 in (Depth) x 2.00 in (Height) x 1.00 in (Width)
  • Weight: 0.63 lb
  • Standards: UL 494
  • Certification: CSA Certified, UL Listed
  • Applications: Overcurrent protection for Eaton Powerline Panelboards in commercial/industrial settings
  • Phase: 1
  • Poles: 1
  • AIC Rating: 14kA @ 277V
  • Connection: Bolt-On
  • Terminal Connection: Screw Clamp
  • Frame Size: 100/GHB
  • Functions: LI (Long-Time & Instantaneous Trip)
  • Breaker Type: Standard
  • Panel Type: Eaton Powerline Panelboards
  • Trip Type: Thermal Magnetic
  • Temp Rating: -2°C to 70°C (28°F to 158°F)
  • MCM Size / Wire Range: 14 AWG to 10 AWG
  • Family: Series C
  • Country of Origin: Dominican Republic


Product Identification
  • UPC: 786679023631
  • GTIN: 00786679023631
