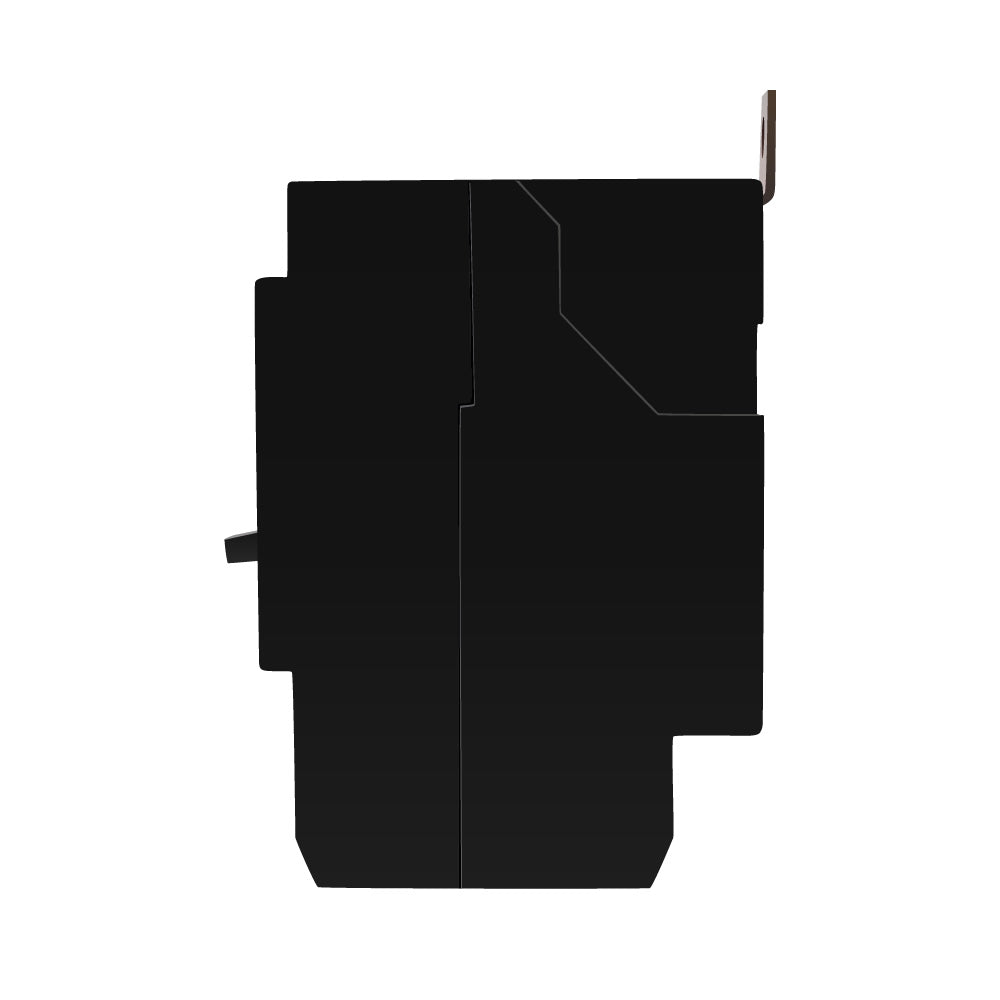

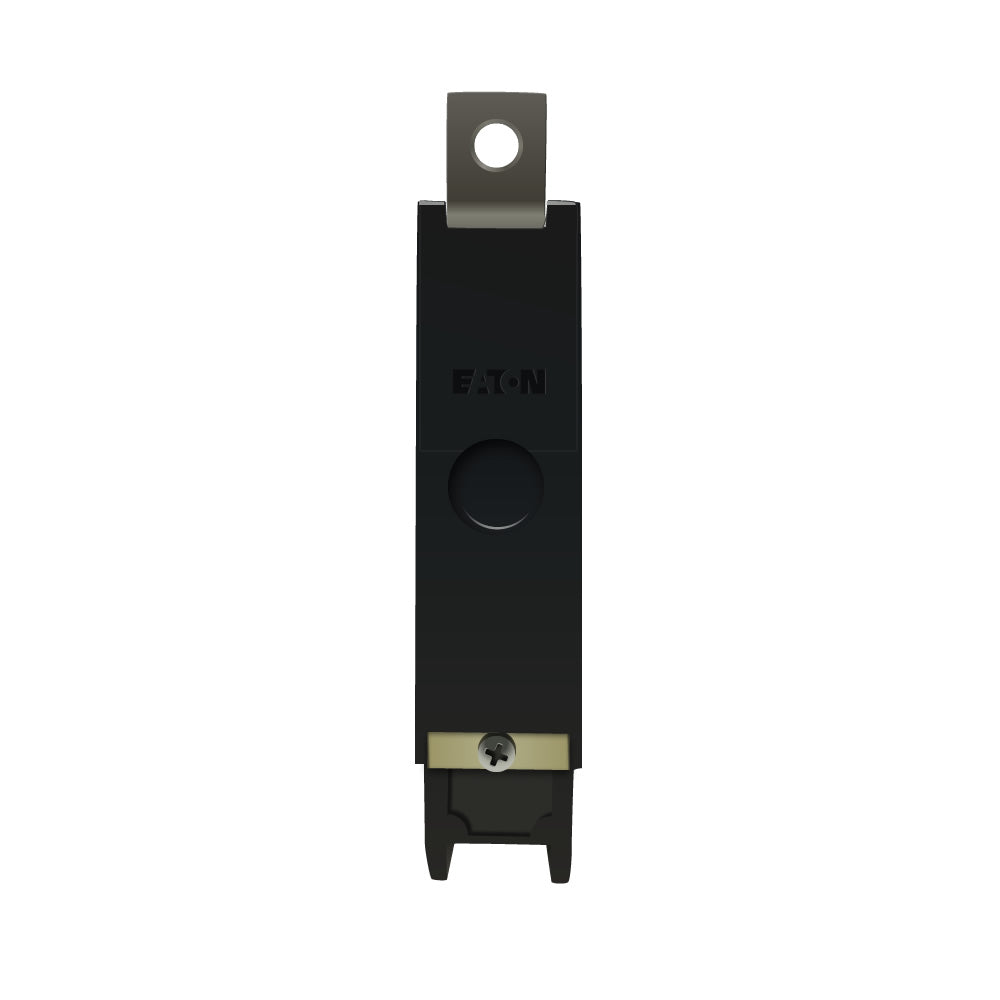

The Cutler-Hammer GHB1015 is a molded case circuit breaker designed to provide reliable overcurrent and short-circuit protection for 480V AC electrical circuits. It features a 15A thermal-magnetic trip unit with long-time and instantaneous (LI) functions, housed in a compact 100-frame bolt-on design measuring 2.63" x 4" x 1" (66.8mm x 101.6mm x 25.4mm) and weighing 0.7 lb. This CSA Certified and UL Listed breaker complies with UL 489 standards and is rated for operation in temperatures from -2°C to 70°C (28°F to 158°F). It is engineered for use in single-phase Eaton Powerline panelboards, offering a 14kA interrupting rating at 277V and accepting wire sizes from 10 to 14 AWG via its screw clamp terminals.

Key Features & Specifications
  • Type: Molded Case Circuit Breaker, Standard, Thermal-Magnetic Protection
  • Voltage Rating: 480V AC
  • Current Rating: 15A
  • Dimensions: 2.63 in (L) x 4 in (H) x 1 in (W) / 66.8mm x 101.6mm x 25.4mm
  • Standards: UL 489
  • Applications: Overcurrent protection in Eaton Powerline Panelboards
  • Switch Type: Circuit Breaker
  • Configuration: Bolt-On
  • Temp Rating: -2°C to 70°C (28°F to 158°F)
  • Phase: 1
  • AIC Rating: 14kA @ 277V
  • Connection: Bolt-On, Screw Clamp Terminal
  • Poles: 1
  • Protection: Thermal Magnetic
  • Functions: Long-Time and Instantaneous (LI) Trip
  • Frame Size: 100/GHB
  • Breaker Type: Standard
  • Certification: CSA Certified, UL Listed
  • MCM Size: 10 AWG (Max) to 14 AWG (Min)
  • Weight: 0.7 lb


Product Identification
  • UPC: 786679023617
  • GTIN: 00786679023617
