Ferraz Shawmut GGM20 - Low Voltage Fuse 20A@250V (UL Listed, 100A AIC)

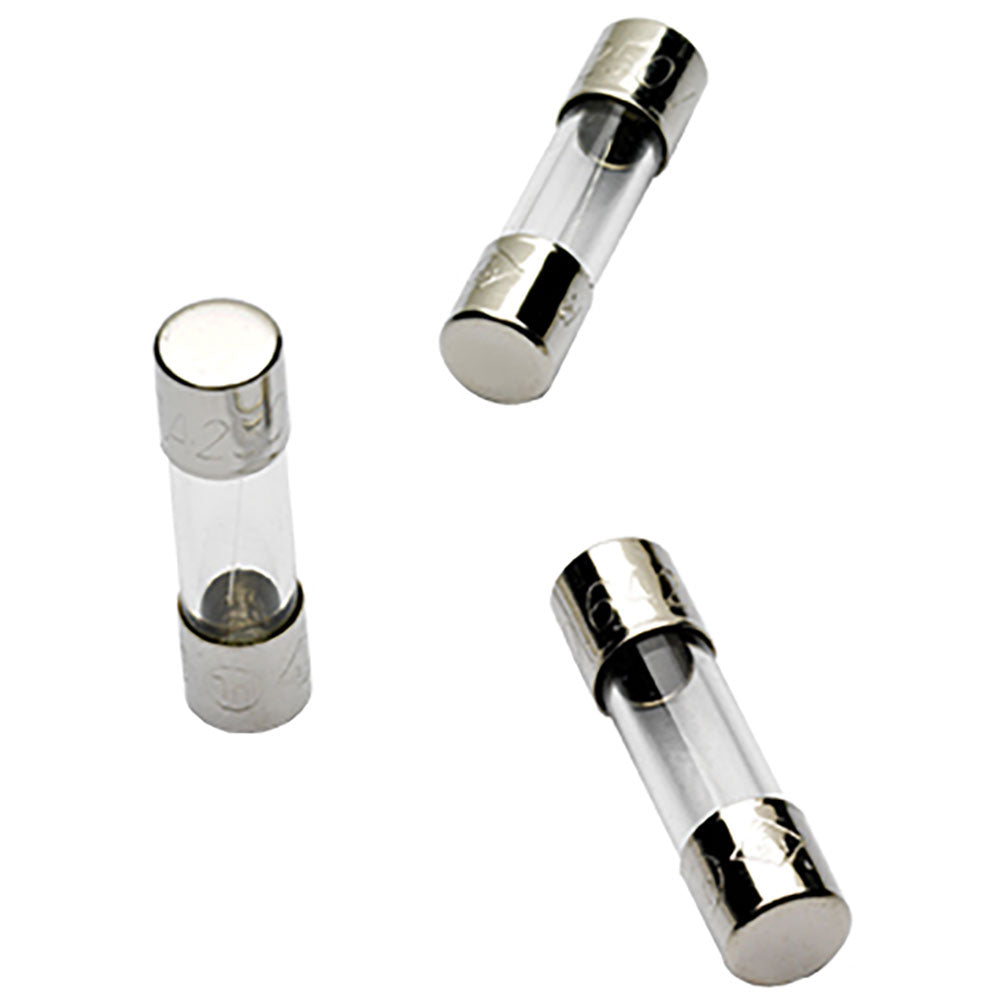

Ferraz Shawmut GGM20 is a low-voltage fuse designed for circuit protection in industrial applications. This UL-listed GGM series fuse features a 250V AC voltage rating and 20A current rating with a 100A interrupting capacity at 250V AC. The compact 5mm diameter ferrule-connected fuse has a single-barrel construction with a weight of 0.01 lb, meeting stringent safety standards for electrical protection systems. Its robust design makes it suitable for motor control circuits, transformers, and power distribution equipment requiring reliable overcurrent protection.

Key Features & Specifications

• Type: GGM series low-voltage fuse with ferrule connection
• Voltage Rating: 250V AC
• Current Rating: 20A
• Dimensions: 5mm diameter x 20.1mm (0.79 in) length
• Standards: UL Listed
• Applications: Motor controls, transformers, power distribution
• AIC rating: 100A@250V AC
• Connection: Ferrule
• Barrels: 1
• Weight: 0.01 lb
• Certification: UL Listed

Product Identification

• UPC: 06893828361
• GTIN: 00068938283612
