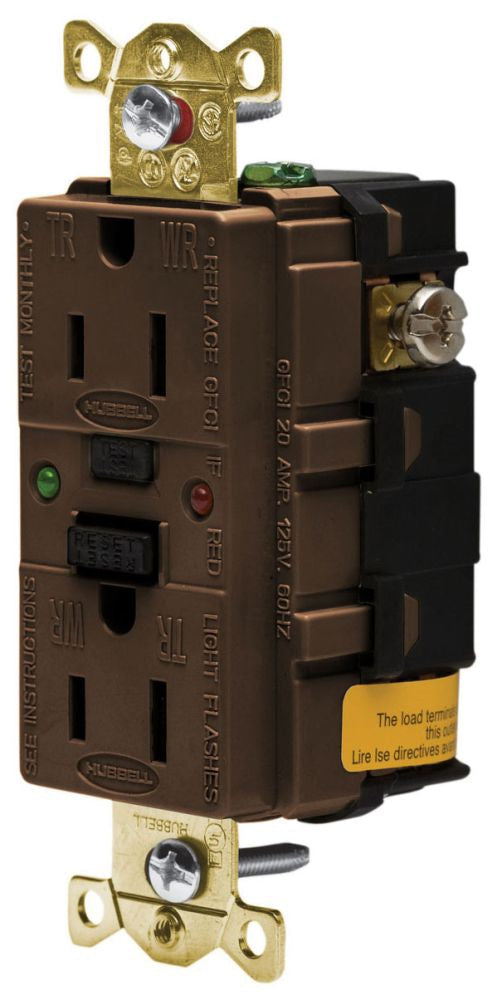

Hubbell GFR5262SG - Fusible 15A 125V GFCI Receptacle
Hubbell GFR5262SG - Fusible 15A 125V GFCI Receptacle

Hubbell GFR5262SG - Fusible 15A 125V GFCI Receptacle

Hubbell
Price
Save $-65.88
/
Condition
  • Low stock - 7 items left
  • Backordered, shipping soon
Call for Price
Hubbell GFR5262SG is a fusible, single-configuration receptacle designed for ground fault and overcurrent protection in industrial environments. It operates at 240V AC with a 100kA interrupting capacity at 240V and is rated for a temperature range of -13°F to 158°F (-25°C to 70°C). This extra heavy duty device features a brown thermoplastic face, tamper-resistant and self-test GFCI circuitry, 20A feed-through capability, and back and side wired terminals accepting #14-10 AWG stranded or solid copper wire. It is UL listed under UL 943 Class A and UL 498 standards, with CSA certification. Typical applications include demanding industrial settings requiring robust protection against ground faults and electrical surges.

Key Features & Specifications
  • Type: Receptacle
  • Amperage: 15A
  • Voltage: 125V AC
  • Poles/Wires: 2P 3W
  • Mounting: Flush, Screw Mounting
  • Interrupt Rating: 10kA
  • Trip Level: 4-6 mA
  • Trip Time: 0.025 seconds
  • Frequency: 60Hz
  • Wire Size: #14-10 AWG stranded or solid copper
  • Color: Brown
  • Certifications: UL 943 Class A, UL 498, CSA
  • Weight: 5.19 lb
  • Country of Origin: Mexico


Product Identification
  • UPC: 783585440897
  • GTIN: 783585440897
