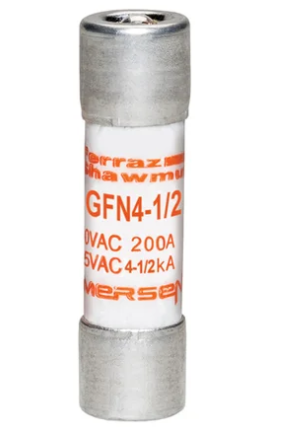

Mersen GFN4-1/2 - GFN Midget Fuse 4A 240V AC (100kA AIC)
Mersen GFN4-1/2 - GFN Midget Fuse 4A 240V AC (100kA AIC)
Mersen GFN4-1/2 - GFN Midget Fuse 4A 240V AC (100kA AIC)
Mersen GFN4-1/2 - GFN Midget Fuse 4A 240V AC (100kA AIC)

Mersen GFN4-1/2 - GFN Midget Fuse 4A 240V AC (100kA AIC)

Mersen
Price
Save $46.05
/
Title
  • In stock, ready to ship
  • Backordered, shipping soon
Call for Price
Mersen GFN4-1/2 is a low-voltage fuse designed for branch circuit protection in industrial and commercial electrical systems. It features a 4-ampere current rating and a 240V AC voltage rating, providing reliable overcurrent protection. The fuse is constructed as a single-barrel, midget-class fuse with a compact diameter of 0.41 inches and is UL listed for safety compliance. It is engineered to operate within a temperature range of -25°C to 70°C and offers a high interrupting capacity of 100kA at 240V AC. Typical applications include the protection of control circuits, transformers, and small motors.

Key Features & Specifications
  • Type: GFN, Midget Class, Single Barrel Low-Voltage Fuse
  • Voltage Rating: 240V AC
  • Current Rating: 4A
  • Dimensions: 0.41 in diameter
  • Standards: UL listed
  • Applications: Protection of control circuits, transformers, and small motors
  • AIC rating: 100kA @ 240V AC
  • Temp Rating: -25°C to 70°C (-13°F to 158°F)
  • Configuration: Single
  • Barrels: 1
  • Class Rating: Midget
  • Weight: 5.19 lb


Product Identification
  • UPC: 78200176201
  • GTIN: 00782001762018
