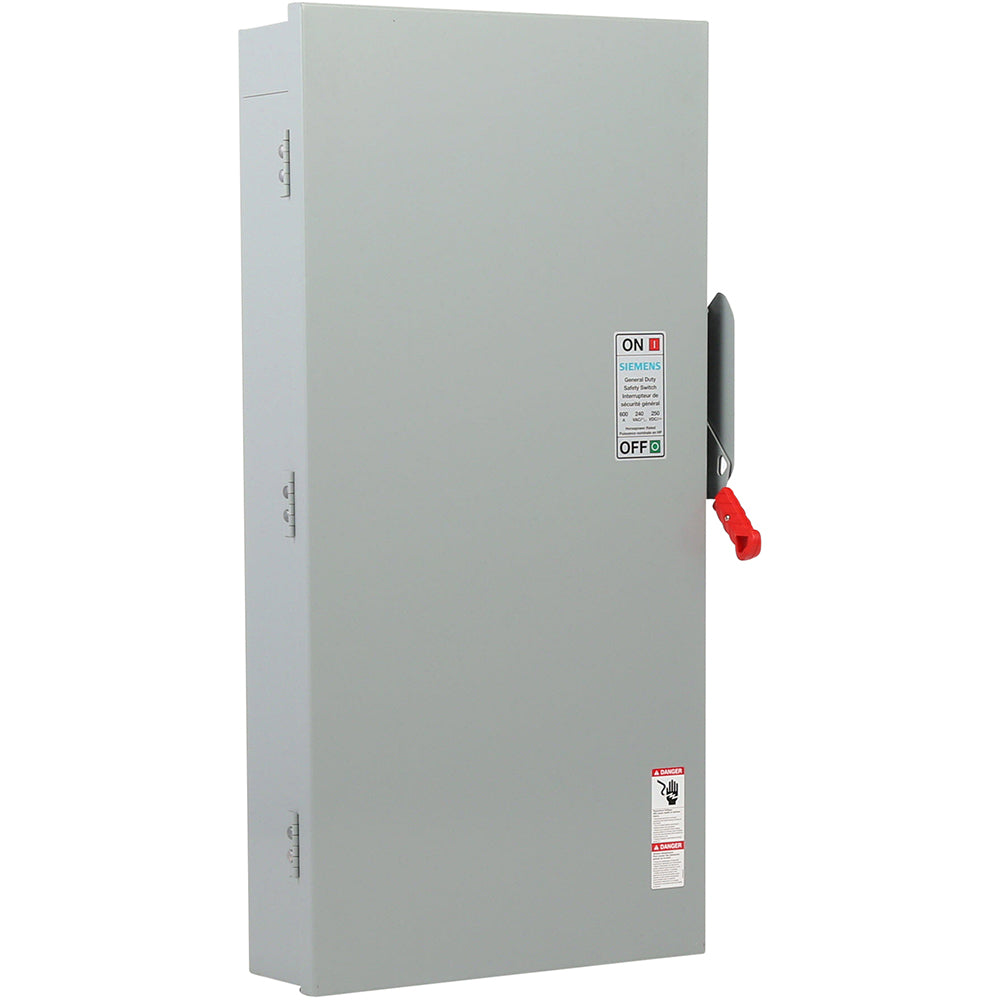

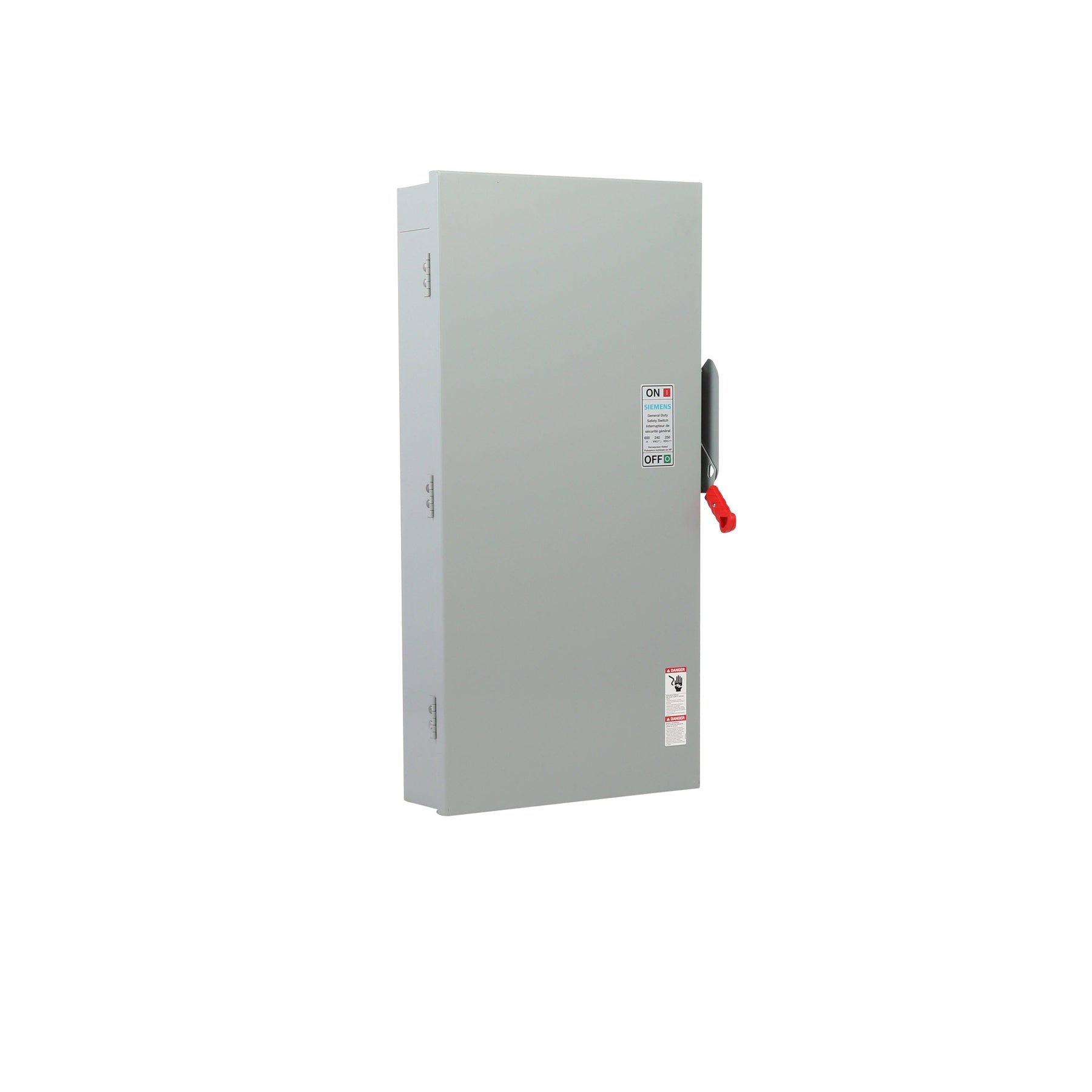

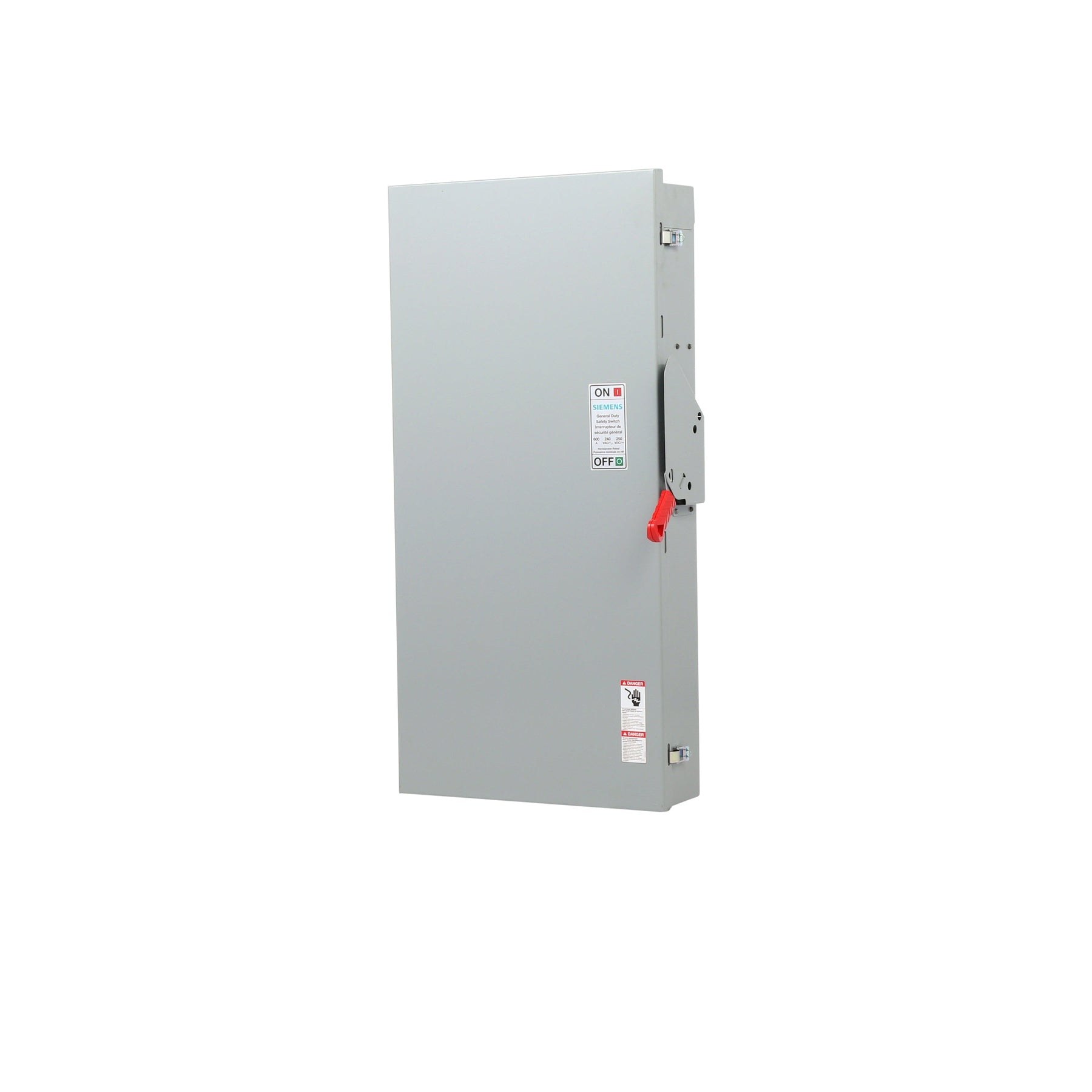

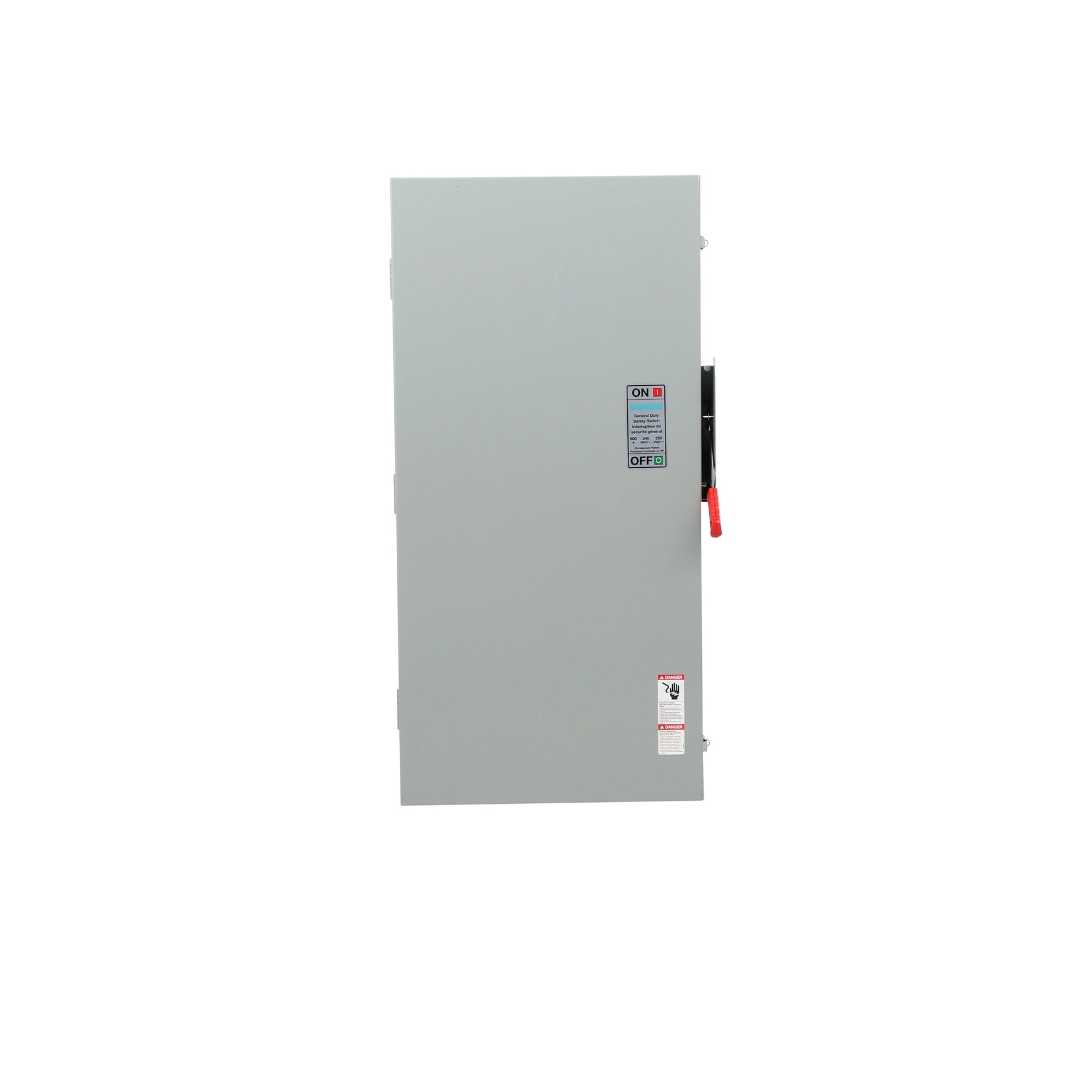

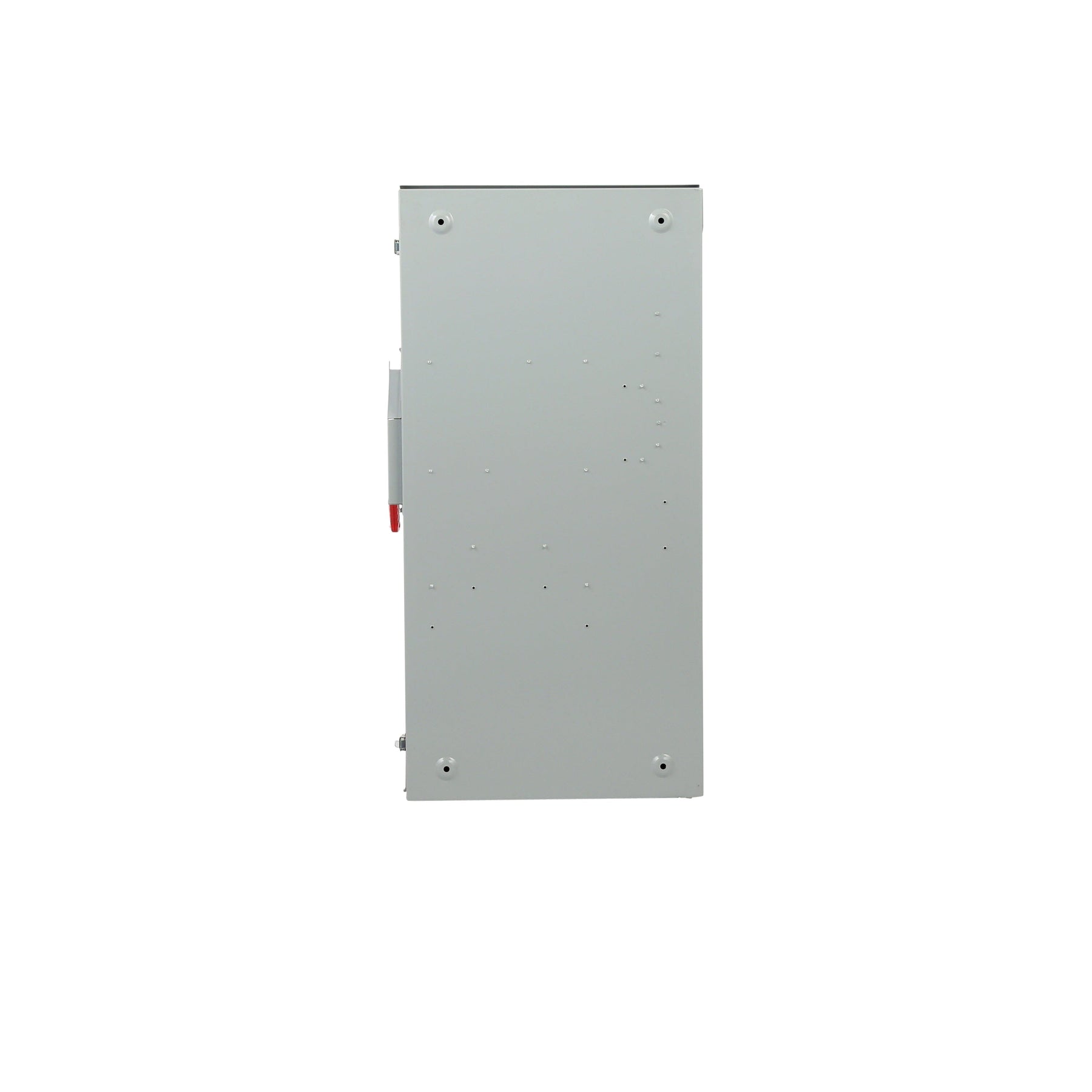

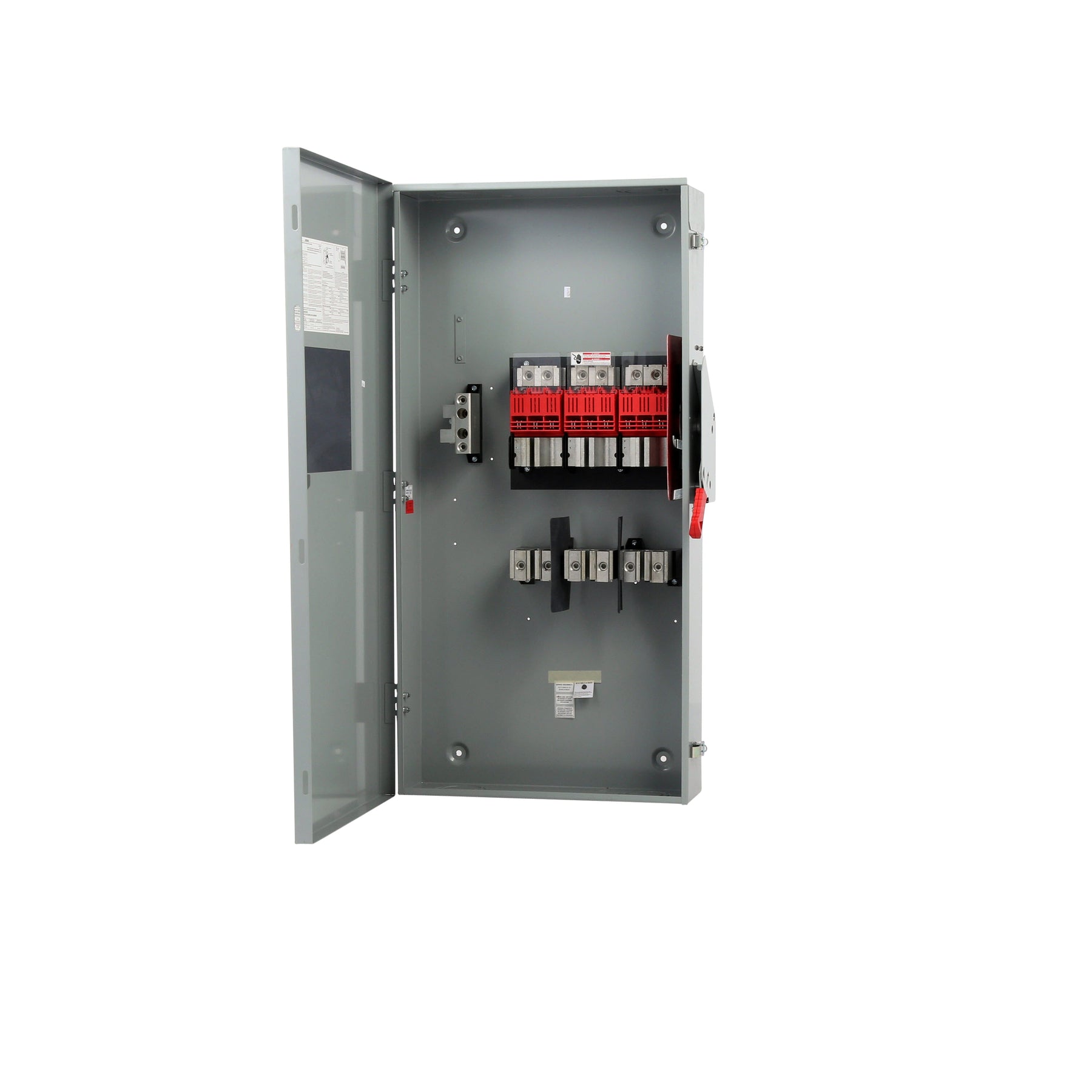

Siemens GF326NA - Fusible Safety Switch, 600A 240V 3-Pole

Price
Regular price $0.00
Regular price Sale price $0.00
Save $0
/
Title
  • In stock, ready to ship
  • Backordered, shipping soon
Siemens GF326NA is a fusible safety switch designed for providing reliable circuit protection and isolation in industrial power distribution. It is rated for 600A at 240V AC in a three-phase configuration and features a robust NEMA 1 enclosure with dimensions of 170 x 560 x 1150 mm (6.693 x 22.047 x 45.276 in) and a weight of 99.8 lb. The switch is UL listed and offers an interrupting capacity of 100kA at 240V, ensuring compliance with critical safety standards for fault protection. Its fusible design, compatible with Class R fuses and MHP frames, along with an operational temperature range of -25°C to 70°C (-13°F to 158°F), makes it suitable for main service disconnects and feeder protection in manufacturing and commercial facilities.

Key Features & Specifications
  • Type: Fusible Safety Disconnect Switch, VBII Series
  • Voltage Rating: 240V AC
  • Current Rating: 600A
  • Configuration: Single, 3-Pole
  • Dimensions: 170 x 560 x 1150 mm (6.693 x 22.047 x 45.276 in)
  • Weight: 99.8 lb
  • Standards: UL Listed
  • Switch Style: Fusible
  • Phase: 3
  • AIC Rating: 100kA @ 240V
  • Fuse Class: R
  • Compatible Frames: MHP
  • NEMA Rating: NEMA 1
  • Temp Rating: -25°C to 70°C (-13°F to 158°F)
  • Country of Origin: Mexico


Product Identification
  • UPC: 887621872656
  • GTIN: 00887621872656
