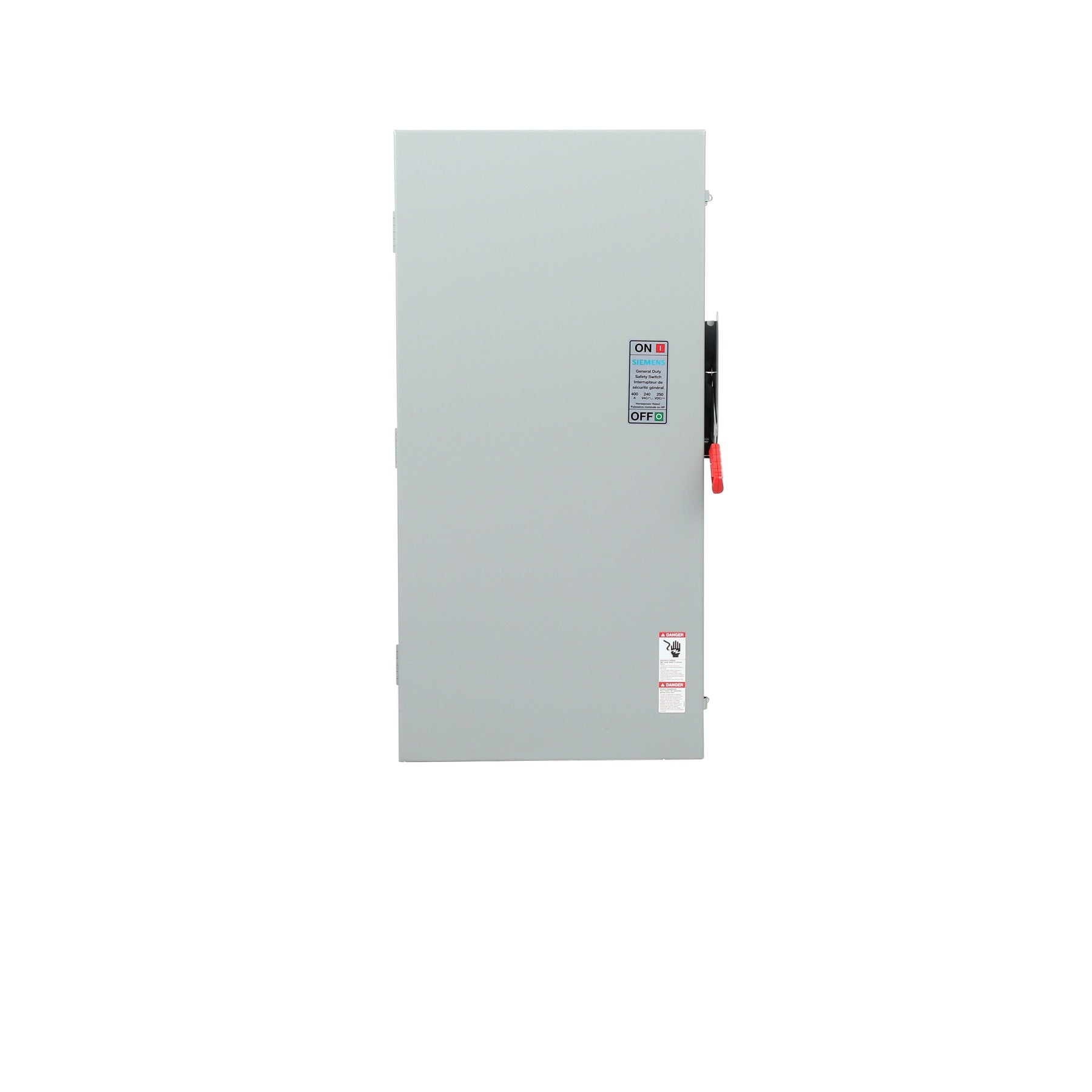

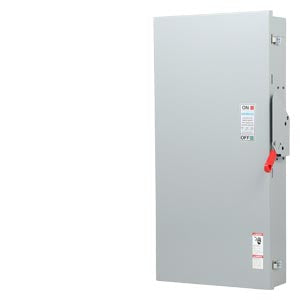

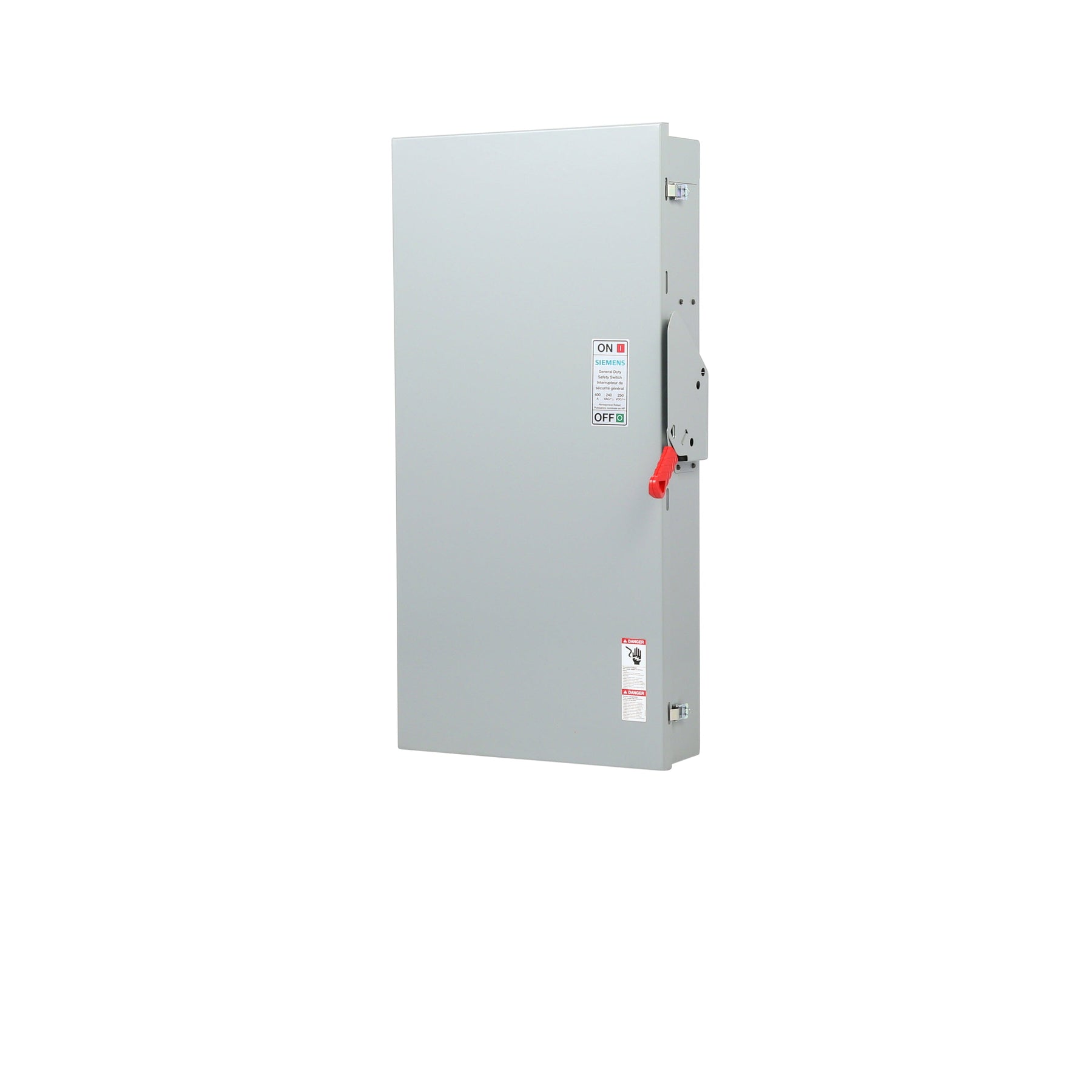

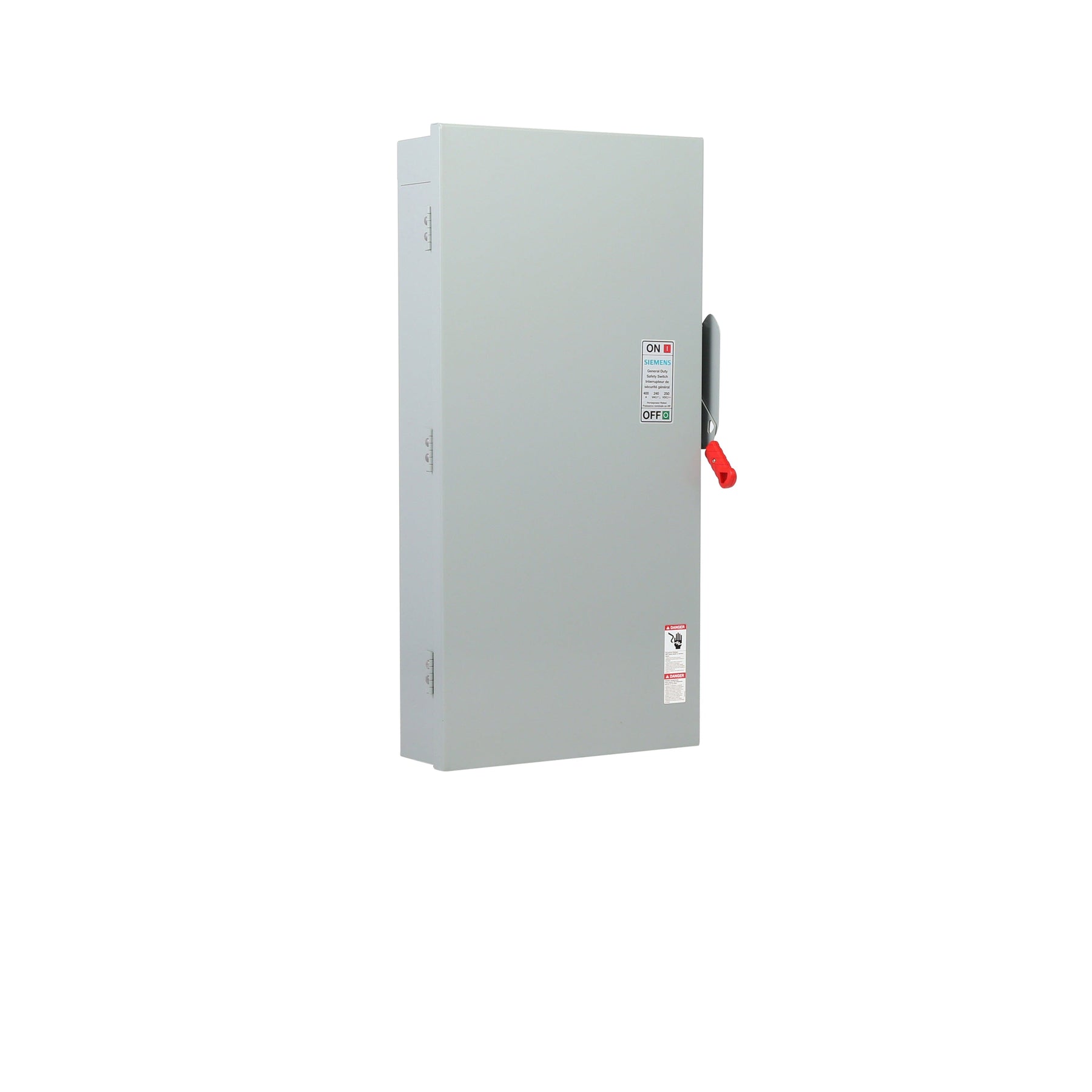

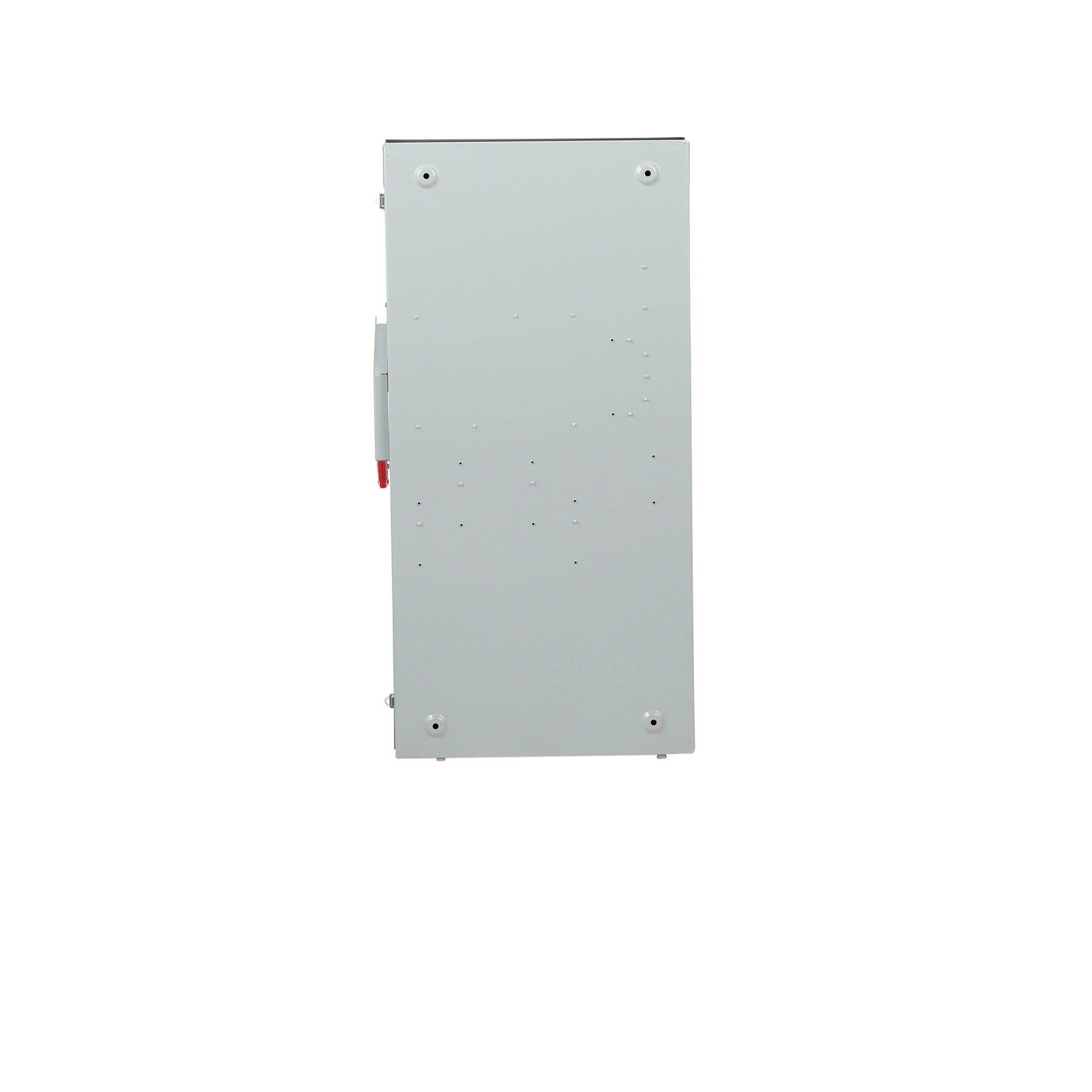

Siemens GF225NA - Fusible Disconnect, 400A 240V AC (100kA AIC)

Price
Regular price $0.00
Regular price Sale price $0.00
Save $0
/
Title
  • In stock, ready to ship
  • Backordered, shipping soon
Siemens GF225NA is a fusible safety switch designed for providing reliable circuit isolation and overcurrent protection in industrial power distribution. It is rated for 240V AC operation with a 400A current capacity and features a robust two-pole, single-phase configuration within a NEMA 1 enclosure. The unit is constructed for durability with dimensions of 170 x 560 x 1150 mm (6.693 x 22.047 x 45.276 in) and a weight of 91.084 lb, operating effectively across a temperature range of -25°C to 70°C (-13°F to 158°F). It complies with UL standards and offers a high interrupting capacity of 100kA at 240V, ensuring protection for compatible MEP panel frames in demanding applications such as motor control centers and main service disconnects.

Key Features & Specifications
  • Type: Fusible disconnect safety switch, VBII Series
  • Voltage Rating: 240V AC
  • Current Rating: 400A
  • Configuration: Single phase, 2 poles
  • Dimensions: 170 x 560 x 1150 mm (6.693 x 22.047 x 45.276 in)
  • Weight: 91.084 lb
  • Standards: UL listed
  • Applications: Industrial power distribution, motor control centers, main service disconnects
  • Switch Style: Fusible
  • AIC Rating: 100kA @ 240V
  • NEMA Rating: NEMA 1
  • Temp Rating: -25°C to 70°C (-13°F to 158°F)
  • Fuse Class: R
  • Compatible Frames: MEP
  • Country of Origin: Mexico


Product Identification
  • UPC: 887621872663
  • GTIN: 00887621872663
