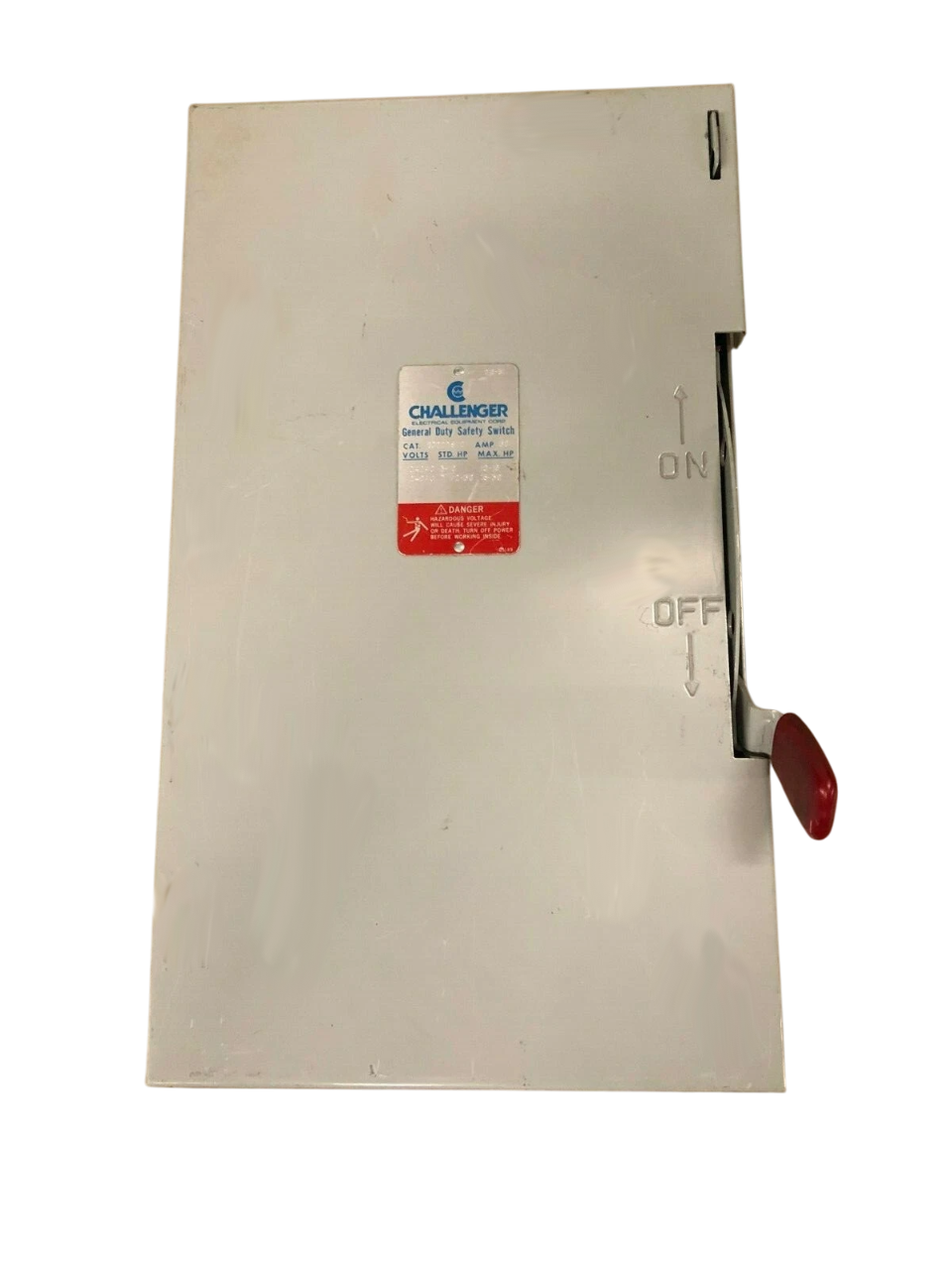

Challenger GD322NFC - Non-Fusible Disconnect Switch 60A@240V (100kA AIC 3-Phase)
Challenger GD322NFC - Non-Fusible Disconnect Switch 60A@240V (100kA AIC 3-Phase)
Challenger GD322NFC - Non-Fusible Disconnect Switch 60A@240V (100kA AIC 3-Phase)
Challenger GD322NFC - Non-Fusible Disconnect Switch 60A@240V (100kA AIC 3-Phase)

Challenger GD322NFC - Non-Fusible Disconnect Switch 60A@240V (100kA AIC 3-Phase)

Challenger
Price
Save $-476.39
/
Title
  • In stock, ready to ship
  • Backordered, shipping soon
Call for Price
Challenger GD322NFC is a non-fusible disconnect switch designed for industrial power distribution systems requiring safe load interruption. The unit features a 240V AC voltage rating with 60A current capacity and 100kA interrupting rating at 240V for robust short-circuit protection. Constructed with a NEMA 1-rated enclosure, this 3-phase switch utilizes a single-configuration design with 3 poles and compatibility with SEPA frames. It meets industry standards for electrical disconnects, making it suitable for motor control centers, HVAC systems, and industrial machinery power management.

Key Features & Specifications
  • Type: Non-fusible disconnect switch with manual operation
  • Voltage Rating: 240V AC
  • Current Rating: 60A
  • Dimensions: Standard industrial form factor (11 lb weight)
  • Standards: NEMA 1 enclosure rating
  • Applications: Industrial power distribution, motor control, HVAC systems
  • Configuration: Single
  • Poles: 3
  • Phase: 3-phase
  • AIC rating: 100kA@240V
  • Wire: 3-wire connection
  • Compatible Frames: SEPA
  • Switch Style: Non-Fusible
