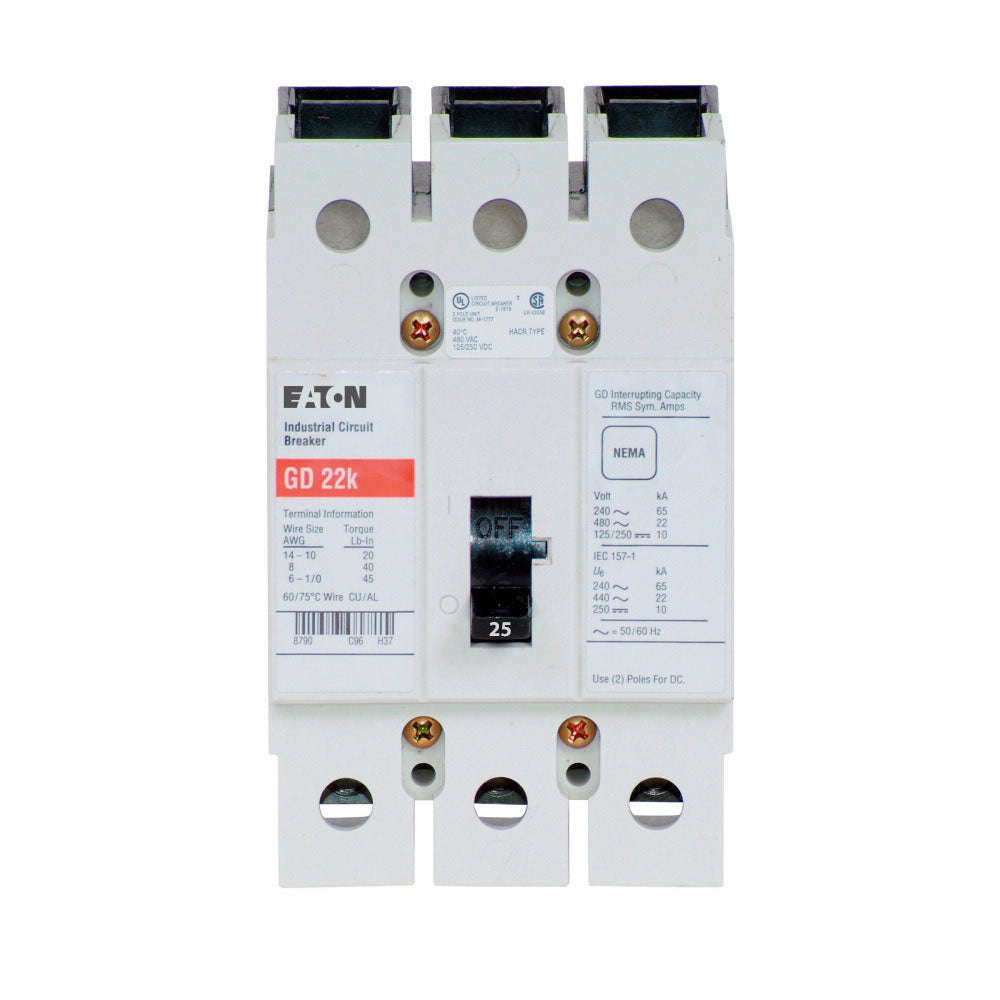

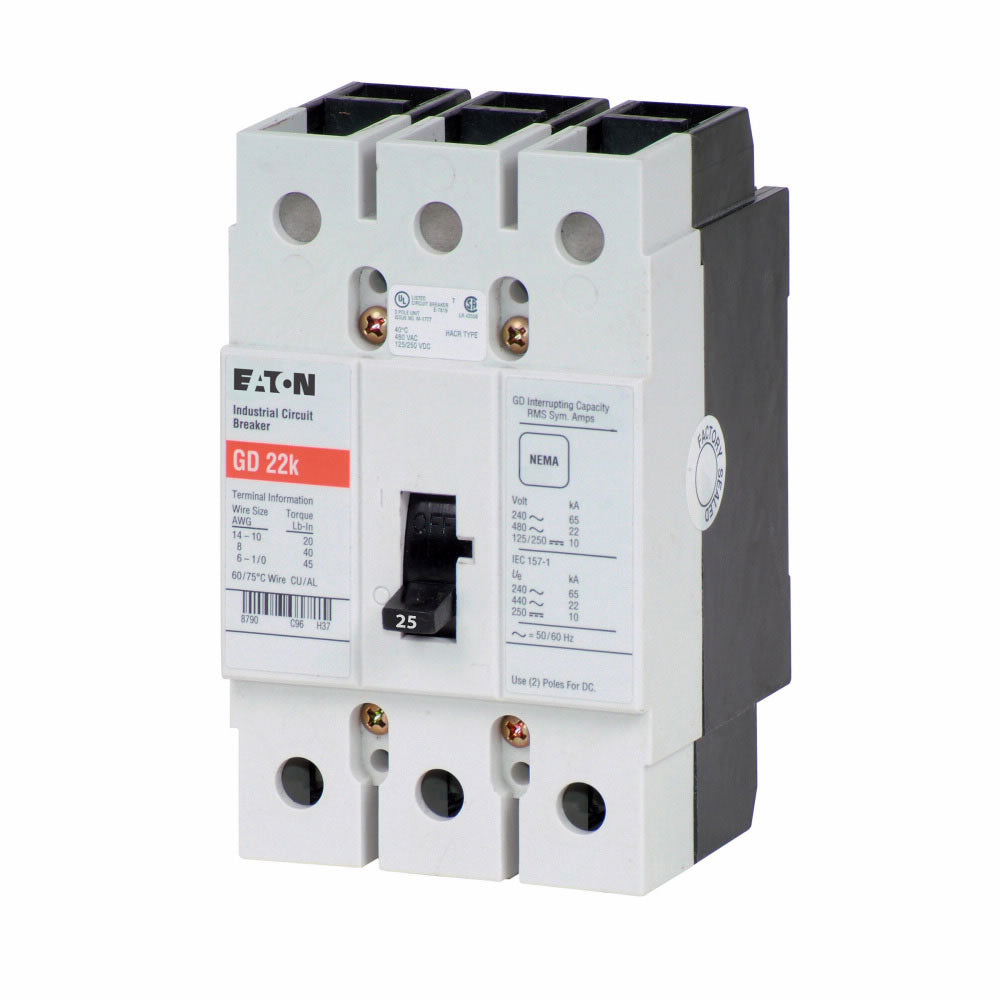

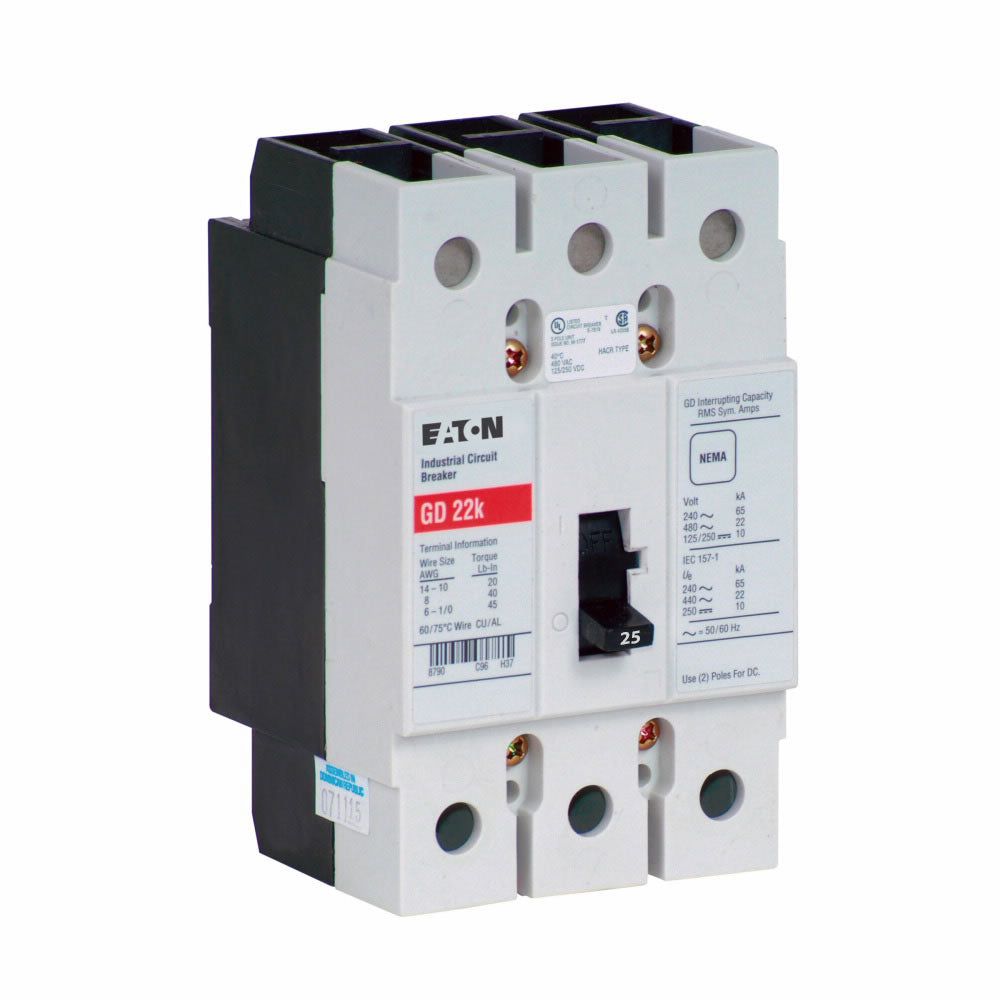

Eaton GD3025 is a molded case circuit breaker designed for providing reliable overcurrent and short-circuit protection in industrial power distribution systems. It features a 25A current rating and a 480V AC voltage rating, housed within a compact G-frame design measuring 2.63 in (L) x 4.88 in (H) x 3 in (W) and weighing 2 lb. The breaker is UL Listed and operates across a temperature range of -25 to 70 °C, utilizing a thermal-magnetic trip unit for both long-time and instantaneous trip functions. Its 22kA interrupting rating at 480V and three-pole, feed-thru configuration make it suitable for protecting feeders and branch circuits in commercial and industrial panelboards.

Key Features & Specifications
  • Type: Molded Case Circuit Breaker, G-Frame, Thermal-Magnetic Protection
  • Voltage Rating: 480V AC
  • Current Rating: 25A
  • Dimensions: 2.63 in x 4.88 in x 3 in (Length x Height x Width)
  • Standards: UL Listed
  • Applications: Industrial power distribution, panelboard protection
  • Switch Type: Circuit Breaker
  • Configuration: Feed-Thru
  • Temp Rating: -25 to 70 °C (-13 to 158 °F)
  • Phase: 3
  • AIC Rating: 22kA @ 480V
  • Connection: Feed-Thru
  • Poles: 3
  • Protection: Thermal Magnetic
  • Functions: Long Time and Instantaneous Trip
  • Frame Size: G Frame
  • Certification: UL Listed
  • Item Subcategory: Molded Case
  • Family: Series C
  • Country of Origin: Dominican Republic


Product Identification
  • UPC: 786679231043
  • GTIN: 00786679231043
