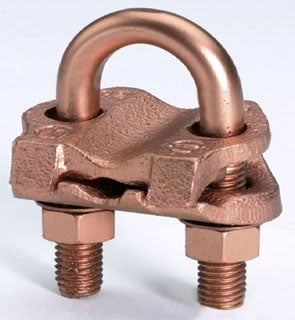

Burndy GAR1826 - Mechanical Grounding Connector, 4 AWG to 2/0 AWG
Burndy GAR1826 - Mechanical Grounding Connector, 4 AWG to 2/0 AWG

Burndy GAR1826 - Mechanical Grounding Connector, 4 AWG to 2/0 AWG

Burndy
Price
Save $-129.66
/
Condition
  • In stock, ready to ship
  • Backordered, shipping soon
Call for Price
Burndy GAR1826 is a mechanical grounding connector engineered for cable to rod or pipe connections in direct burial environments. It accommodates copper conductors ranging from 4 AWG solid to 2/0 AWG stranded and supports parallel or 90° connections to rods or tubes sized 2 to 2-3/8 inches, as well as 2 inch IPS pipe. The connector features a bright dipped cast high copper alloy body with Durium silicon bronze hardware and a recommended installation torque of 240 lb-in. It is UL Listed for direct burial and complies with UL467 standards, with a weight of 5.19 lb and country of origin in the United States. Typical applications include grounding systems in industrial, utility, and commercial settings where reliable, corrosion-resistant connections are required.

Key Features & Specifications
  • Type: Mechanical grounding connector
  • Conductor Size Range: 4 AWG solid to 2/0 AWG stranded
  • Rod Size Range: 2 to 2-3/8 inches
  • Pipe Size: 2 inch IPS
  • Material: Bright dipped cast high copper alloy
  • Hardware Material: Durium silicon bronze
  • Installation Torque: 240 lb-in recommended
  • Connection Type: Parallel or 90° copper cable
  • UL Listed: Yes, UL467 compliant
  • Direct Burial Rated: Yes
  • Dimensions: 4.25 inch height, 3.69 inch width, 2.38 inch outside diameter
  • U Bolt Type: 257
  • EU RoHS Compliant: Yes
  • Weight: 5.19 lb
  • Certification: UL Listed Direct Burial, UL467
  • Country of Origin: United States


Product Identification
  • UPC: 781810235003
  • GTIN: 00781810235003
