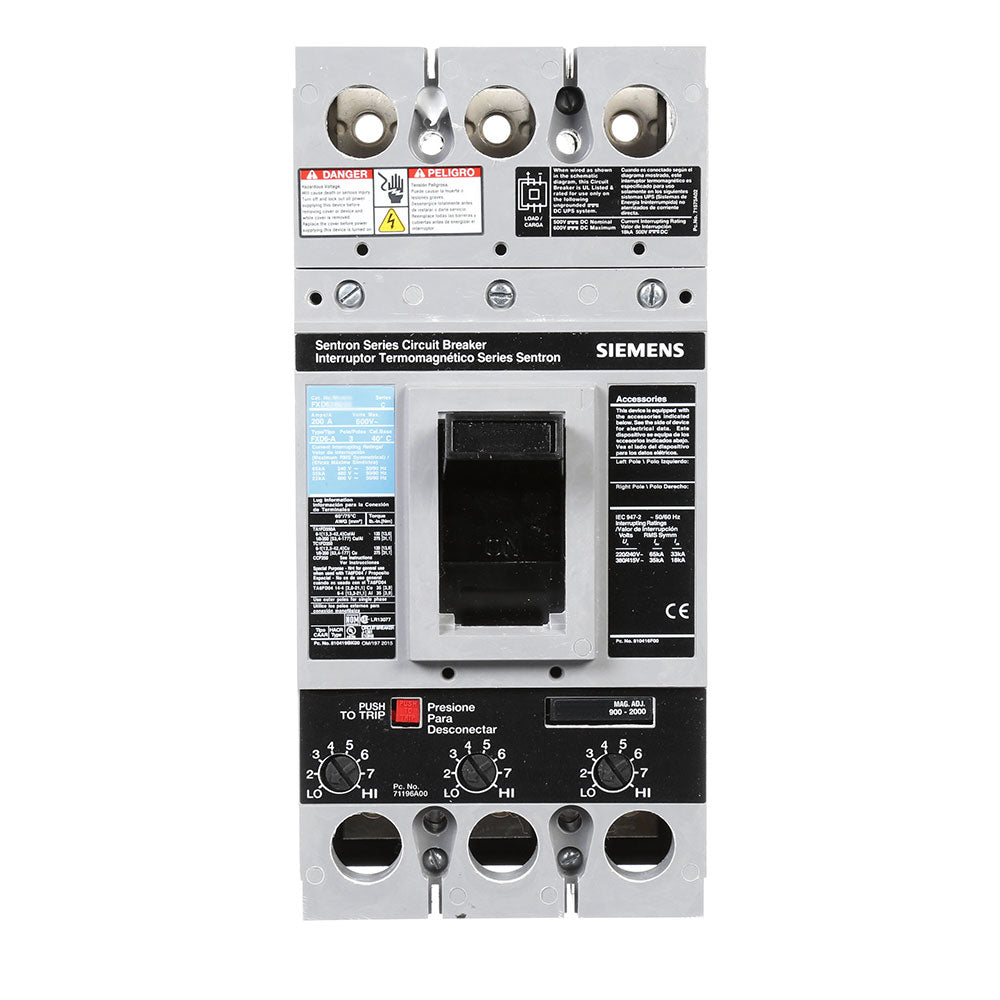

Siemens FXD63B225 - Molded Case Circuit Breaker 225A 600V 3P
Siemens FXD63B225 - Molded Case Circuit Breaker 225A 600V 3P

Siemens FXD63B225 - Molded Case Circuit Breaker 225A 600V 3P

Siemens
Price
Save $7,877.31
/
Condition
  • In stock, ready to ship
  • Backordered, shipping soon
Call for Price
Siemens FXD63B225 is a molded case circuit breaker designed for providing reliable overcurrent and short-circuit protection in three-phase industrial power distribution systems. It features a 225A continuous current rating and a 600V AC voltage rating, housed within a compact FD frame with dimensions of 150mm x 250mm x 170mm (W x H x D) and a weight of 8.869 lb. The breaker utilizes a thermal-magnetic trip unit for both long-time and instantaneous protection, is certified to UL, CSA, and IEC standards, and offers a 35kA interrupting capacity at 480V AC. Its robust construction supports operation in temperatures from -25°C to 70°C, making it suitable for installation in various panel types including S4, P4, SPP, and F-series enclosures for commercial and industrial applications.

Key Features & Specifications
  • Type: Molded Case Circuit Breaker, Thermal-Magnetic Protection, Standard Trip, Bolt-On Connection
  • Voltage Rating: 600V AC
  • Current Rating: 225A
  • Frame Size: FD Frame
  • Poles: 3
  • Phase: 3
  • AIC Rating: 35kA @ 480V AC
  • Protection Functions: Long Time and Instantaneous Trip
  • Connection: Bolt-On
  • Certification: UL, CSA, IEC
  • Operating Temperature: -25°C to 70°C (-13°F to 158°F)
  • Dimensions (W x H x D): 150mm x 250mm x 170mm (5.906" x 9.843" x 6.693")
  • Weight: 8.869 lb
  • Panel Type Compatibility: S4, P4, SPP, F1, FC1, FCII, CDP-5, CDP-6, SB1-3, S5, P5, SPP/FPP, F2
  • Breaker Type: Standard
  • Family: Sentron Series
  • Country of Origin: Mexico
  • Additional Info: Lugs are not included and must be purchased separately


Product Identification
  • UPC: 783643211285
  • GTIN: 00783643211285
