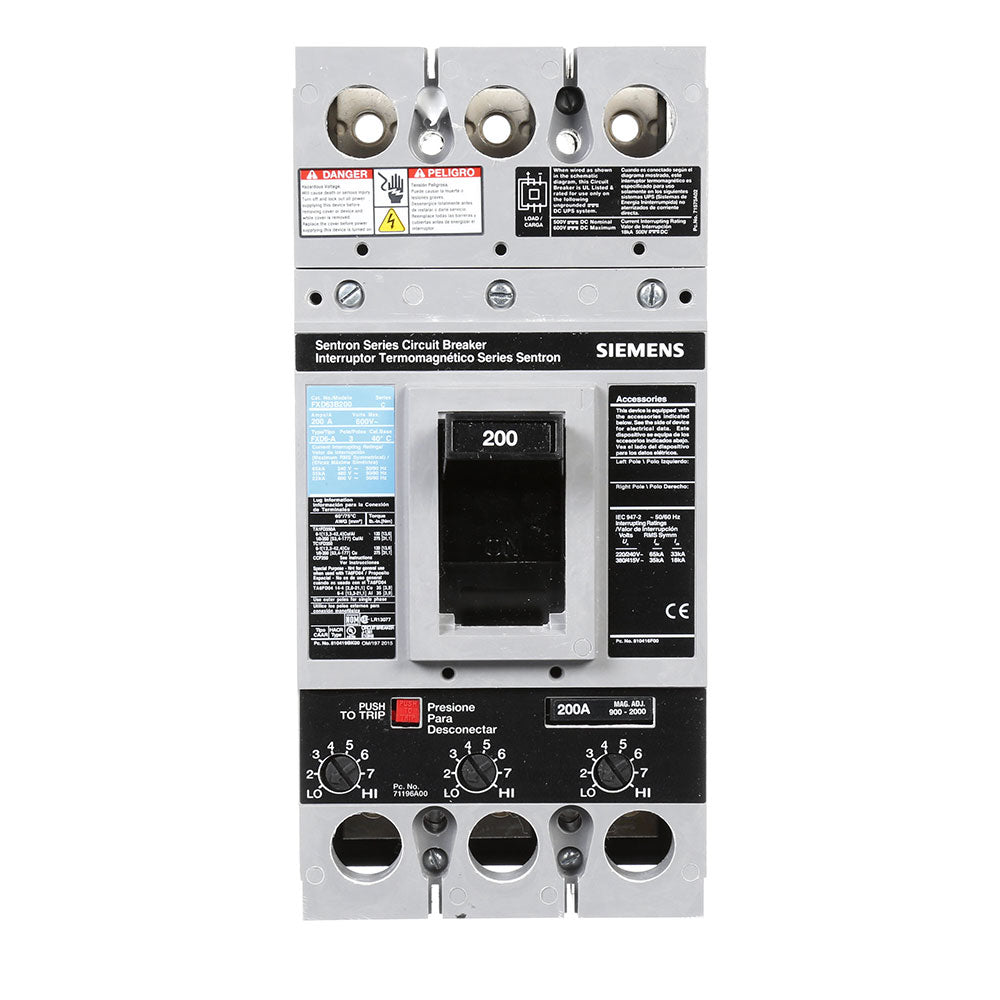

Siemens FXD63B200 - Molded Case Circuit Breaker 200A 600V 3P
Siemens FXD63B200 - Molded Case Circuit Breaker 200A 600V 3P

Siemens FXD63B200 - Molded Case Circuit Breaker 200A 600V 3P

Siemens
Price
Save $7,813.14
/
Condition
  • In stock, ready to ship
  • Backordered, shipping soon
Call for Price
Siemens FXD63B200 is a molded case circuit breaker designed for providing reliable overcurrent and short-circuit protection in three-phase industrial power distribution systems. It features a 200A continuous current rating and a 600V AC voltage rating, housed within a compact, bolt-on configuration measuring 6.89 x 5.354 x 11.024 inches and weighing 8.803 lb. The breaker utilizes a thermal-magnetic trip unit for combined long-time and instantaneous protection, is certified to UL, CSA, and IEC standards, and offers a 35kA interrupting capacity at 480V AC. Its robust construction supports operation in temperatures from -25°C to 70°C, making it suitable for integration into various panelboards including S4, P4, SPP, F1, FC1, FCII, CDP-5, CDP-6, SB1-3, S5, P5, SPP/FPP, and F2 types.

Key Features & Specifications
  • Type: Molded Case Circuit Breaker, Thermal-Magnetic Protection, Bolt-On Connection
  • Voltage Rating: 600V AC
  • Current Rating: 200A
  • Frame Size: 250A/FD
  • Poles: 3
  • AIC Rating: 35kA @ 480V AC
  • Phase Connection: ABC
  • Terminal Connection: Lug (lugs not included)
  • Functions: Long Time and Instantaneous Trip
  • Standards & Certification: UL Listed, CSA, IEC
  • Operating Temperature: -25°C to 70°C (-13°F to 158°F)
  • Dimensions: 6.89 x 5.354 x 11.024 inch
  • Weight: 8.803 lb
  • Panel Type Compatibility: S4, P4, SPP, F1, FC1, FCII, CDP-5, CDP-6, SB1-3, S5, P5, SPP/FPP, F2
  • Family: Sentron Series
  • Country of Origin: Mexico


Product Identification
  • UPC: 783643211278
  • GTIN: 00783643211278
