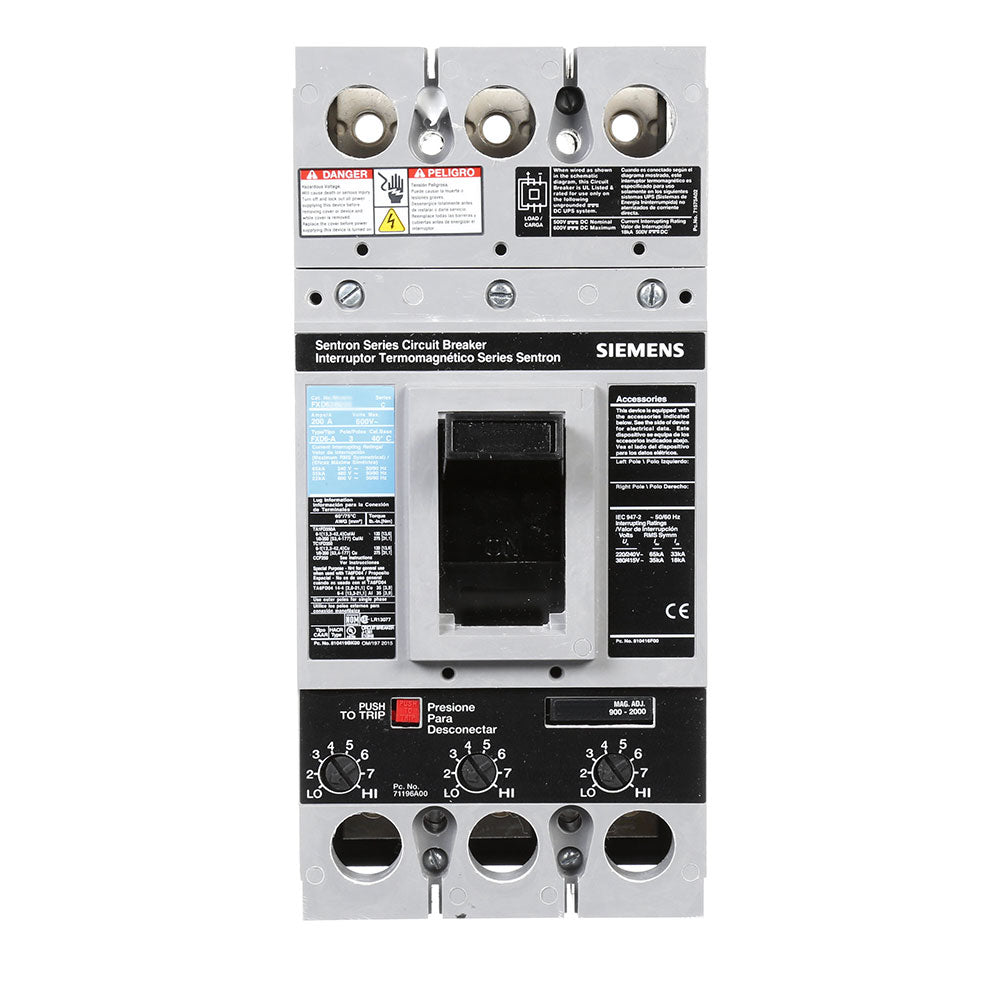

Siemens FXD63B100 - Molded Case Circuit Breaker 100A 600V 3P
Siemens FXD63B100 - Molded Case Circuit Breaker 100A 600V 3P

Siemens FXD63B100 - Molded Case Circuit Breaker 100A 600V 3P

Siemens
Price
Save $7,232.45
/
Condition
  • Low stock - 4 items left
  • Backordered, shipping soon
Call for Price
Siemens FXD63B100 is a molded case circuit breaker designed for providing reliable overcurrent and short-circuit protection in three-phase industrial power distribution systems. It features a 100A current rating and a 600V AC voltage rating, housed within a compact, durable frame measuring 150mm wide x 250mm high x 170mm deep (5.906" x 9.843" x 6.693") and weighing 8.997 lb. This thermal-magnetic breaker, part of the Sentron Series, offers both long-time and instantaneous trip functions, is UL Listed, CSA, and IEC certified, and operates effectively within a temperature range of -25°C to 70°C (-13°F to 158°F). Its 35kA interrupting rating at 480V AC and bolt-on lug connection make it suitable for installation in various panel types including S4, P4, SPP, and F1/F2 configurations for commercial and industrial applications.

Key Features & Specifications
  • Type: Molded Case Circuit Breaker, Thermal Magnetic Protection, Standard Trip Unit
  • Voltage Rating: 600V AC
  • Current Rating: 100A
  • Frame Size: 250A/FD
  • Poles: 3
  • AIC Rating: 35kA @ 480V AC
  • Connection: Bolt-On, Lug Terminal (Lugs Not Included)
  • Phase Connection: ABC, 3-Phase
  • Functions: Long Time and Instantaneous Trip
  • Dimensions: 150mm W x 250mm H x 170mm D (5.906" x 9.843" x 6.693")
  • Weight: 8.997 lb
  • Operating Temperature: -25°C to 70°C (-13°F to 158°F)
  • Standards & Certification: UL Listed, CSA, IEC
  • Panel Type Compatibility: S4, P4, SPP, F1, FC1, FCII, CDP-5, CDP-6, SB1-3, S5, P5, SPP/FPP, F2
  • Family: Sentron Series
  • Country of Origin: Mexico


Product Identification
  • UPC: 783643211223
  • GTIN: 00783643211223
