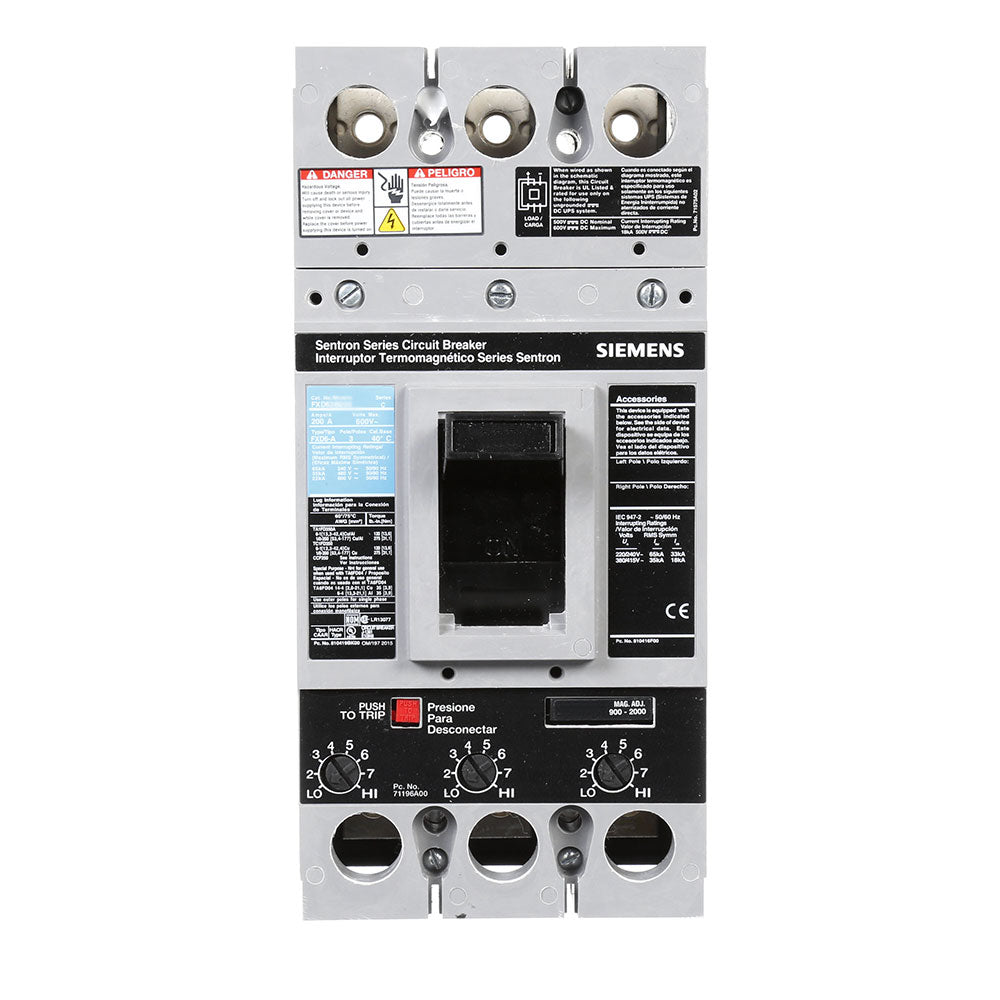

Siemens FXD63B070 - Molded Case Breaker 70A 600V 3-Pole
Siemens FXD63B070 - Molded Case Breaker 70A 600V 3-Pole

Siemens FXD63B070 - Molded Case Breaker 70A 600V 3-Pole

Siemens
Price
Save $7,684.58
/
Condition
  • In stock, ready to ship
  • Backordered, shipping soon
Call for Price
The Siemens FXD63B070 is a 3-pole molded case circuit breaker from the Sentron Series, designed for thermal magnetic protection in industrial power distribution systems. It is rated for 600V AC, 70A, and 35kA at 480V, providing long time and instantaneous trip functions. This bolt-on breaker measures 5.906 x 9.843 x 6.693 inches, weighs 8.4 lb, and operates within a temperature range of -13°F to 158°F (-25°C to 70°C). It is certified to UL, CSA, and IEC standards, and is compatible with panel types including S4, P4, SPP, F1, FC1, FCII, CDP-5, CDP-6, SB1-3, S5, P5, SPP/FPP, and F2. Typical applications include commercial and industrial electrical panels requiring reliable overcurrent protection, though lugs are not included and must be purchased separately.

Key Features & Specifications
  • Type: Molded Case Circuit Breaker, Sentron Series, FXD Type
  • Voltage Rating: 600V AC
  • Current Rating: 70A
  • Dimensions: 5.906 x 9.843 x 6.693 (W x H x D) Inches
  • Standards: UL, CSA, IEC
  • Applications: Industrial power distribution, panel protection
  • Poles: 3
  • Connection: Bolt-On
  • Protection: Thermal Magnetic
  • Functions: Long Time and Instantaneous Trip
  • Frame Size: FD Frame
  • Breaker Type: Standard
  • Phase: 3
  • Temp Rating: -13°F - 158°F (-25°C - 70°C)
  • AIC rating: 35kA@480V
  • Panel Type: S4, P4, SPP, F1, FC1, FCII, CDP-5, CDP-6, SB1-3, S5, P5, SPP/FPP, F2
  • Weight: 8.4 lb
  • Additional Info: Lugs are not included and must be purchased separately


Product Identification
  • UPC: 783643211193
  • GTIN: 00783643211193
