Eaton Bussmann FWX-25A14F - aR Class Fuse 25A/250V (200kA AIC)

Bussmann
Price
Save $755.12
/
Title
  • In stock, ready to ship
  • Backordered, shipping soon
Call for Price

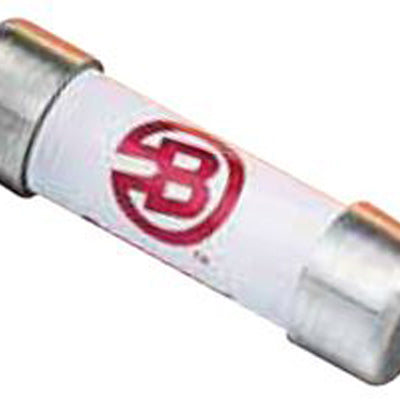

Eaton Bussmann FWX-25A14F is a low-voltage, general-purpose fuse designed for branch circuit and feeder protection in industrial control panels and equipment. It features a 25A current rating and a 250V voltage rating, with a compact ferrule connection design measuring 55 mm x 32 mm x 73 mm. Constructed as a single-barrel, 0.56-inch diameter fuse, it meets aR class partial-range breaking requirements and is certified to CE, CSA, and UL standards for reliable interruption of faults up to 200kA at 250V in demanding applications.

Key Features & Specifications
  • Type: Low-voltage, general-purpose, ferrule connection, single-barrel fuse
  • Voltage Rating: 250V AC/DC
  • Current Rating: 25A
  • Dimensions: 55 mm (L) x 32 mm (H) x 73 mm (W)
  • Standards: CE, CSA Certified, UL Recognized
  • Applications: Industrial control panels, feeder and branch circuit protection
  • Class Rating: aR (partial-range)
  • AIC rating: 200kA @ 250V
  • Connection: Ferrule
  • Barrels: 1
  • Diameter: 0.56 in
  • Weight: 0.04876 lb


Product Identification
  • UPC: 05171279559
  • GTIN: 00051712795593
