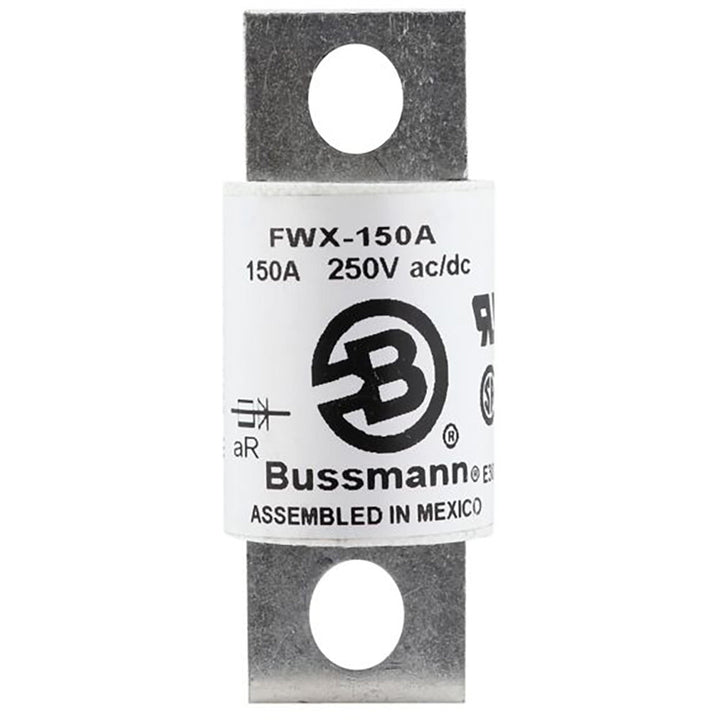

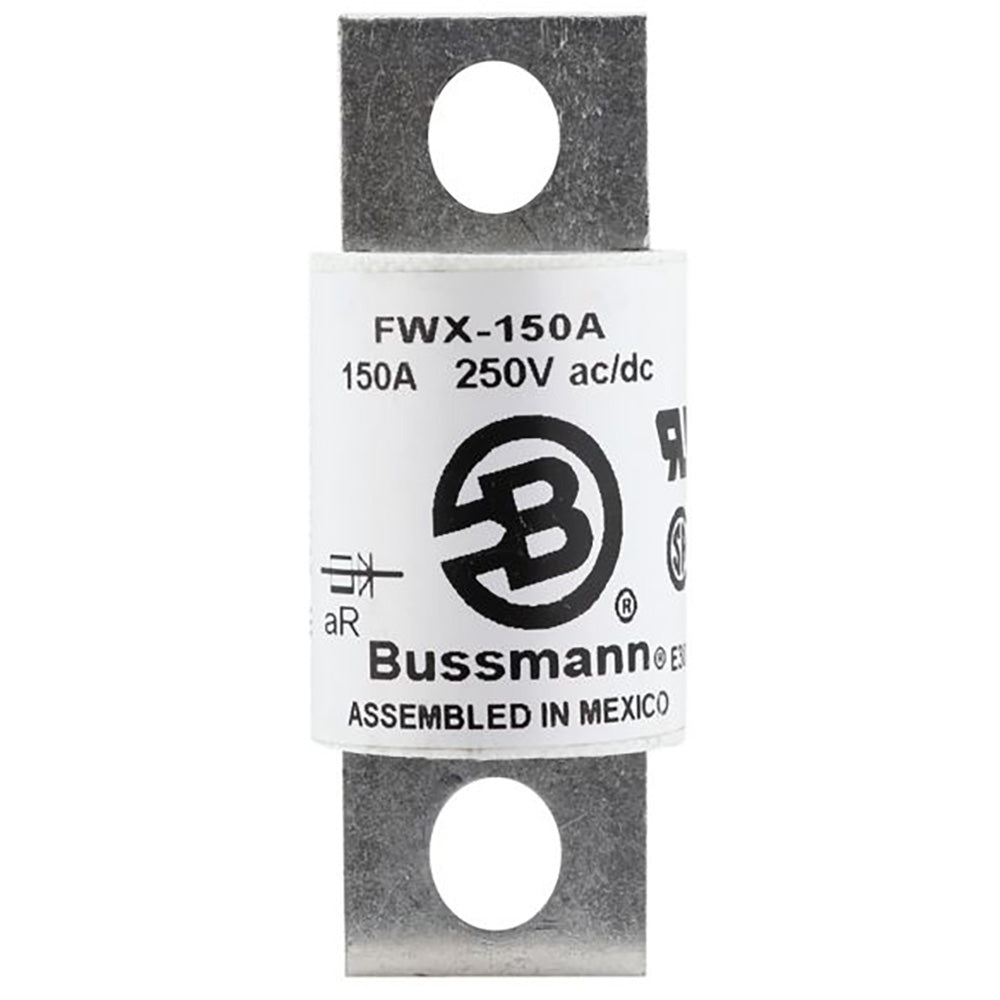

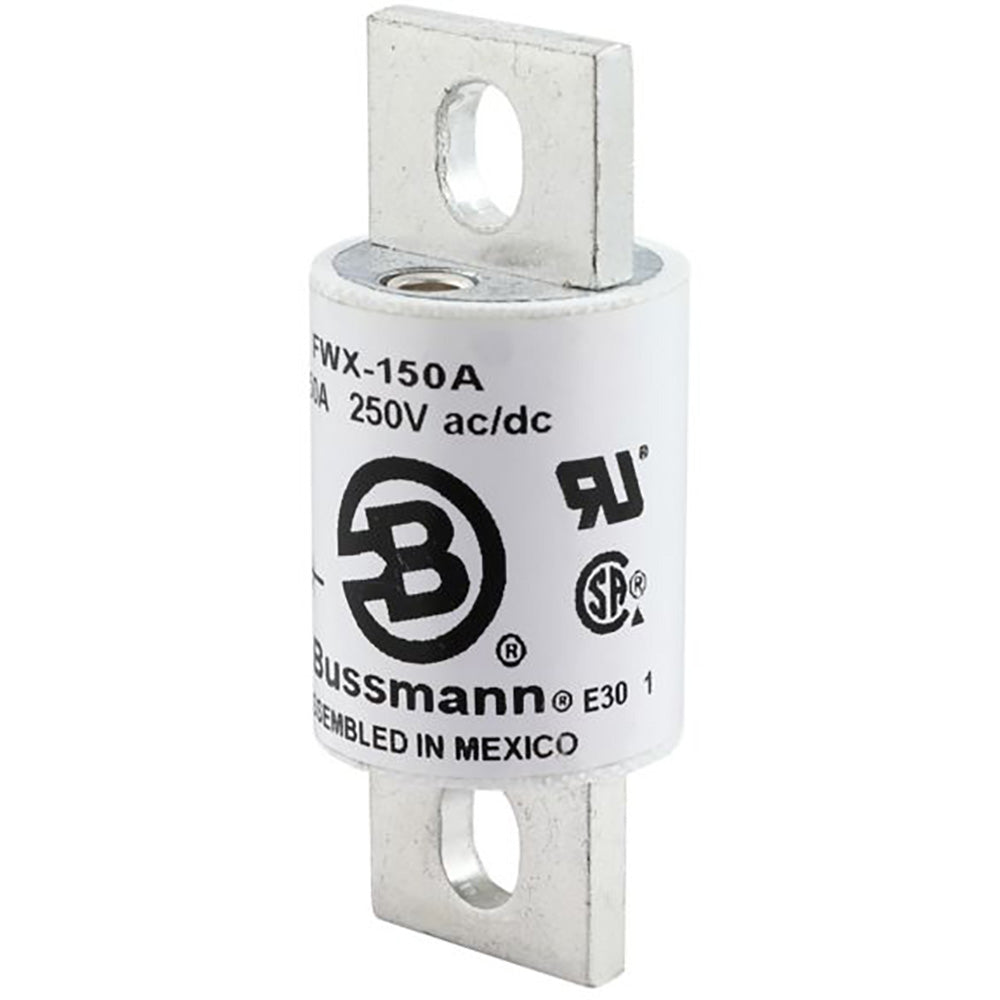

Bussmann FWX-150A - Current-Limiting Fuse 150A (200kA AIC @ 250V)

Bussmann FWX-150A is a low-voltage current-limiting fuse designed for providing high-level short-circuit protection in industrial electrical systems. This 150A rated fuse operates at 250V AC with an impressive 200kA interrupting rating, ensuring reliable circuit protection under fault conditions. The fuse features a compact 1.22-inch diameter stud connection design with single-barrel construction, manufactured to meet rigorous industry standards including UL recognition, CSA certification, and CE compliance. It is commonly deployed in motor control centers, industrial control panels, and power distribution equipment where robust short-circuit protection is essential for system reliability and equipment safety.

Key Features & Specifications

• Type: FWX Series current-limiting fuse with stud connection
• Voltage Rating: 250V AC
• Current Rating: 150A
• Dimensions: 1.22" diameter x 3-1/8" length
• Standards: UL Recognized, CSA Certified, CE Compliant
• Applications: Industrial control panels, motor control centers, power distribution systems
• AIC rating: 200kA@250V
• Connection: Stud
• Barrels: 1
• Certification: CE, CSA Certified, UL Recognized
• Family: FWX Series
• Item Subcategory: Low Voltage Fuse
• Country of Origin: Mexico
• Weight: 1 lb

Product Identification

• UPC: 051712150651
• GTIN: 00051712150651
