Bussmann FWP-80A22F - FWP Series Fuse 80A 700V (200kA AIC Rating)

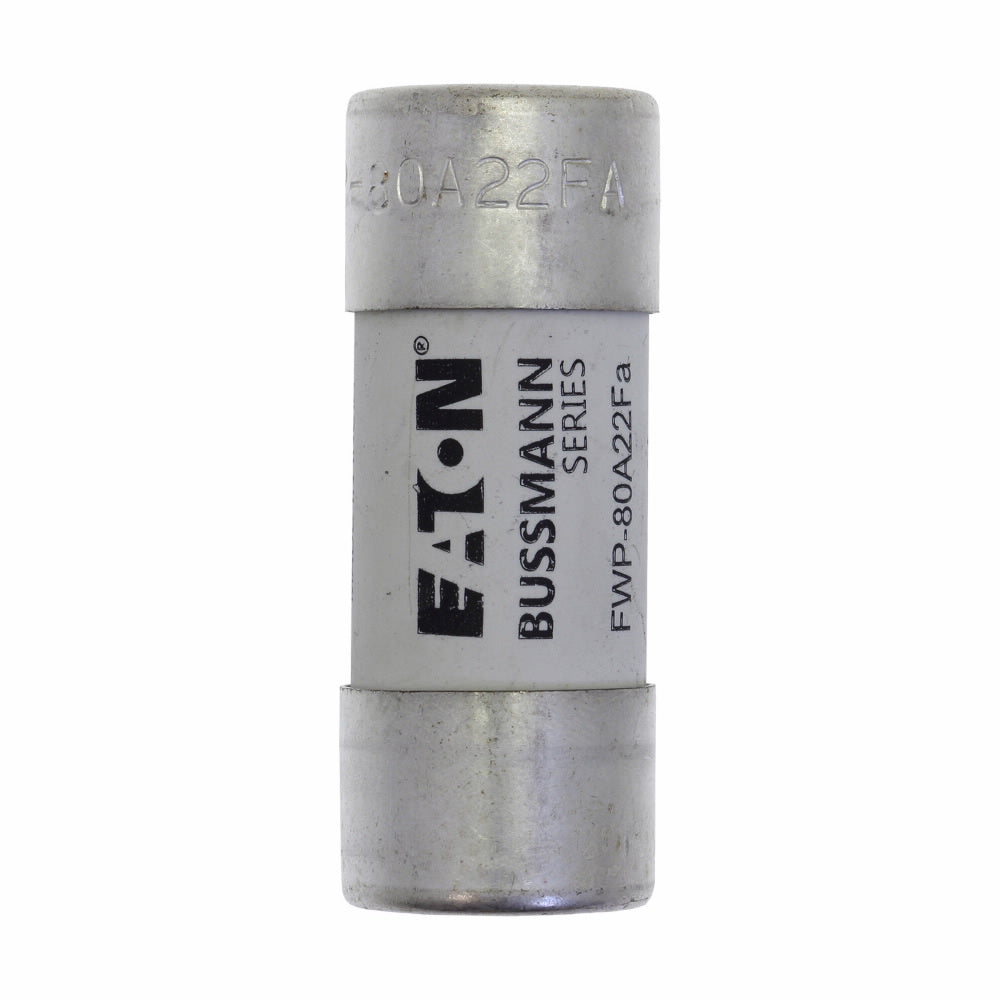

Bussmann FWP-80A22F is a low voltage current-limiting fuse designed for industrial circuit protection applications. It features a 700V AC voltage rating with 80A current handling capacity and 200kA interrupting rating at 700V for reliable overcurrent protection. The fuse construction utilizes a single-barrel design with ferrule connections and measures 2-9/32 inches in length with 0.88-inch diameter, weighing 1 lb for robust industrial use. Certified to CE, CSA, and UL standards, this fuse meets rigorous safety and performance requirements for global applications. Typical applications include motor control centers, industrial control panels, and power distribution systems where high-interrupting capacity protection is essential.

Key Features & Specifications

• Type: FWP Series current-limiting fuse, single barrel design with ferrule connections
• Voltage Rating: 700V AC
• Current Rating: 80A
• Dimensions: 2-9/32 inches length x 0.88 inches diameter
• Standards: CE, CSA Certified, UL Recognized
• Applications: Industrial control panels, motor control centers, power distribution systems
• AIC rating: 200kA@700V
• Connection: Ferrule
• Barrels: 1
• Weight: 1 lb
• Certification: CE, CSA Certified, UL Recognized
• Family: FWP Series
• Country of Origin: India

Product Identification

• UPC: 051712370875
• GTIN: 00051712370875
