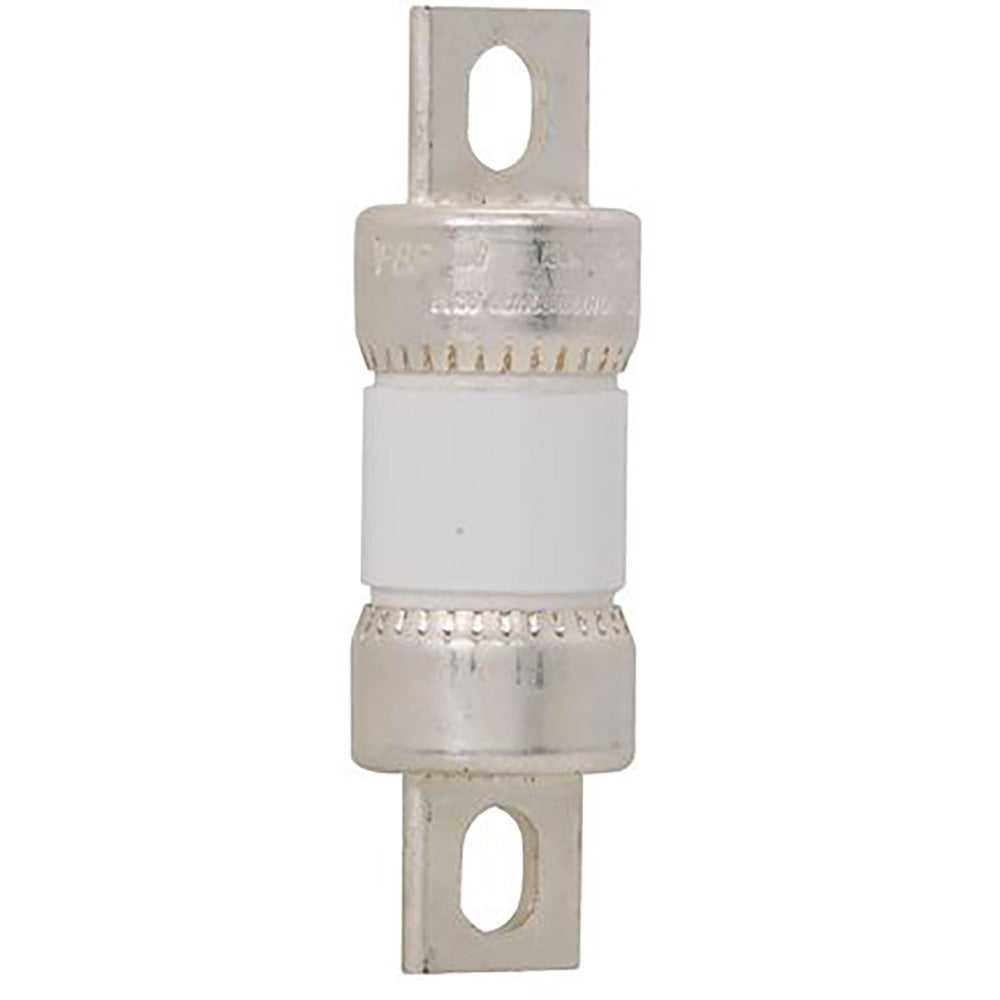

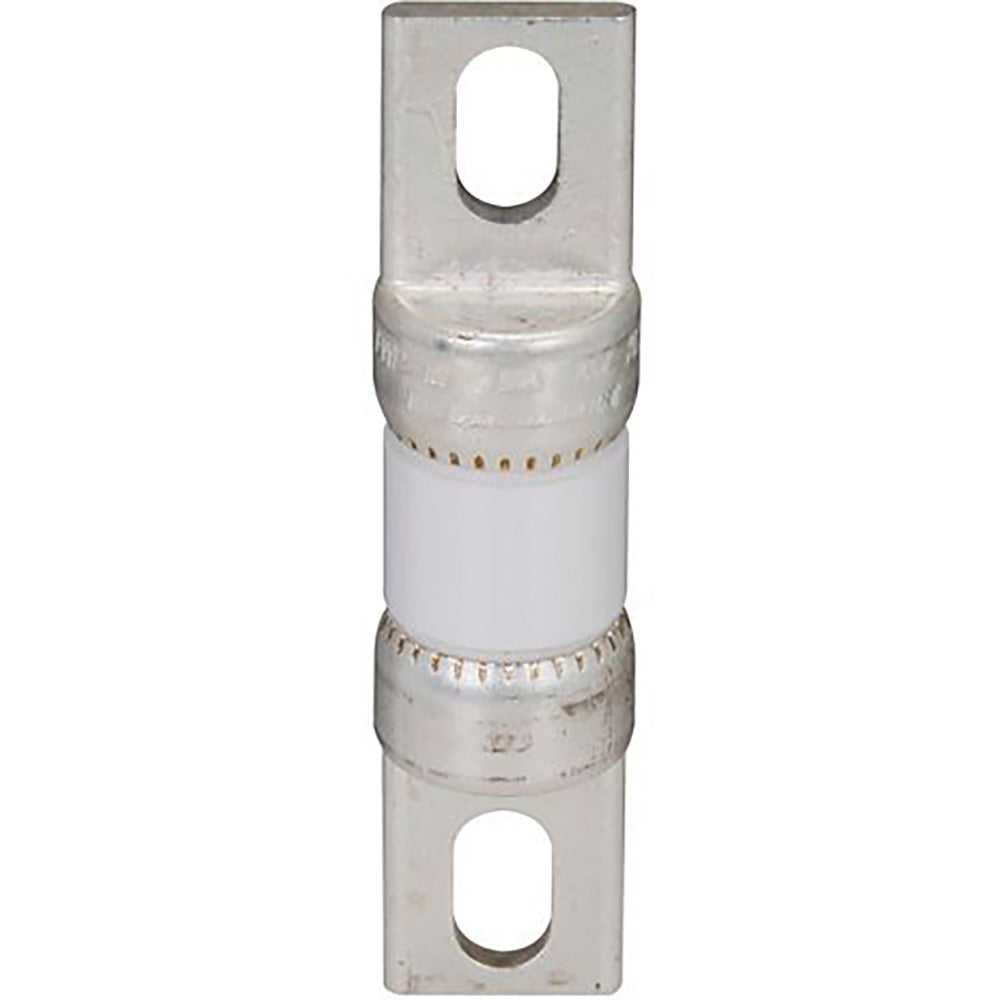

Bussmann FWP-70 - Low Voltage Fuse 70A (700V AC/DC, 200kA AIC)

Bussmann FWP-70 is a low voltage fuse designed for circuit protection in industrial power distribution systems. It features a 700V AC/DC voltage rating with a 70A current rating, providing reliable overcurrent protection. The fuse construction includes a single-barrel design with 0.56-inch diameter and bolted connection terminals, weighing 5.19 lb for robust performance. It meets industry standards with a 200kA interrupting rating at 700V AC/DC, ensuring compliance with electrical protection requirements. Typical applications include industrial control panels, motor circuits, and power distribution equipment where high interrupting capacity is essential.

Key Features & Specifications

• Type: Low Voltage Fuse, FWP Series, single-barrel construction with bolted connection
• Voltage Rating: 700V AC/DC
• Current Rating: 70A
• Dimensions: 0.56-inch diameter
• Standards: Industry standard compliance for electrical protection
• Applications: Industrial control panels, motor circuits, power distribution systems
• AIC rating: 200kA@700V AC/DC
• Connection: Bolted
• Barrels: 1
• Weight: 5.19 lb

Product Identification

• UPC: 05171250870
• GTIN: 00051712508704
