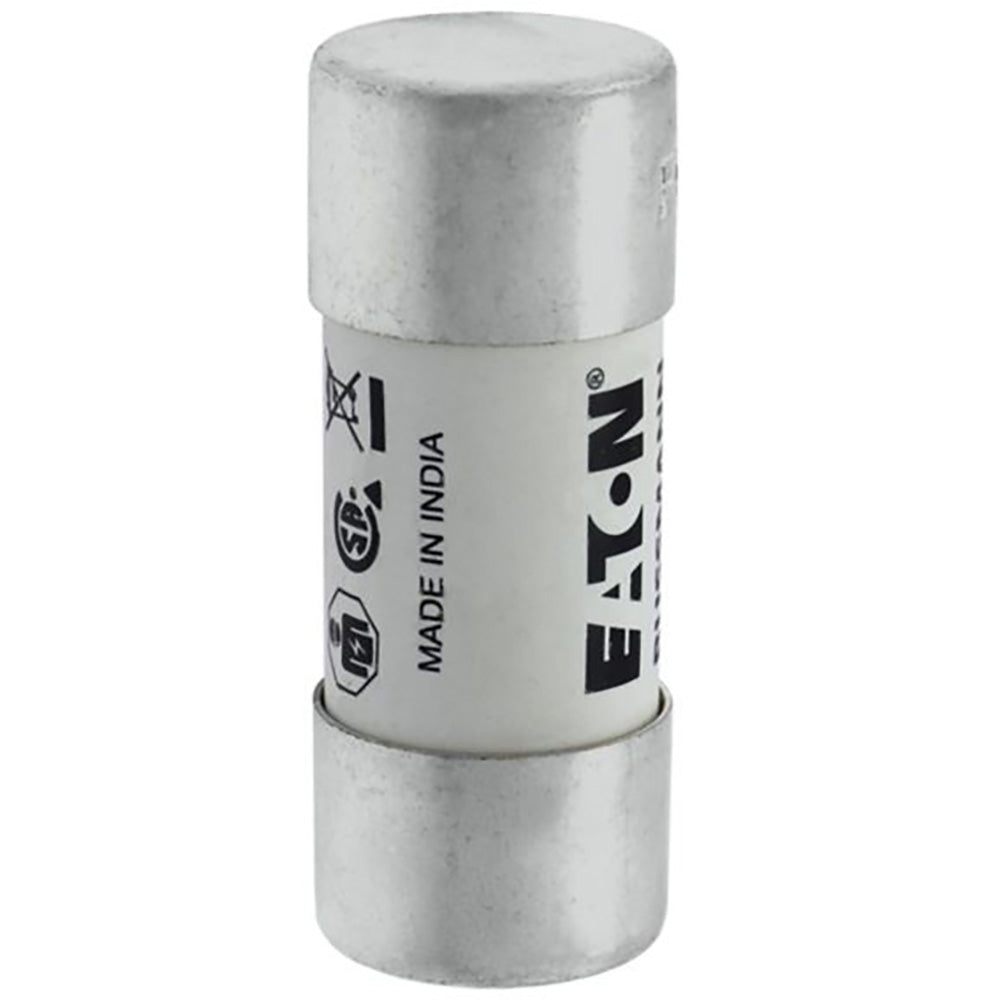

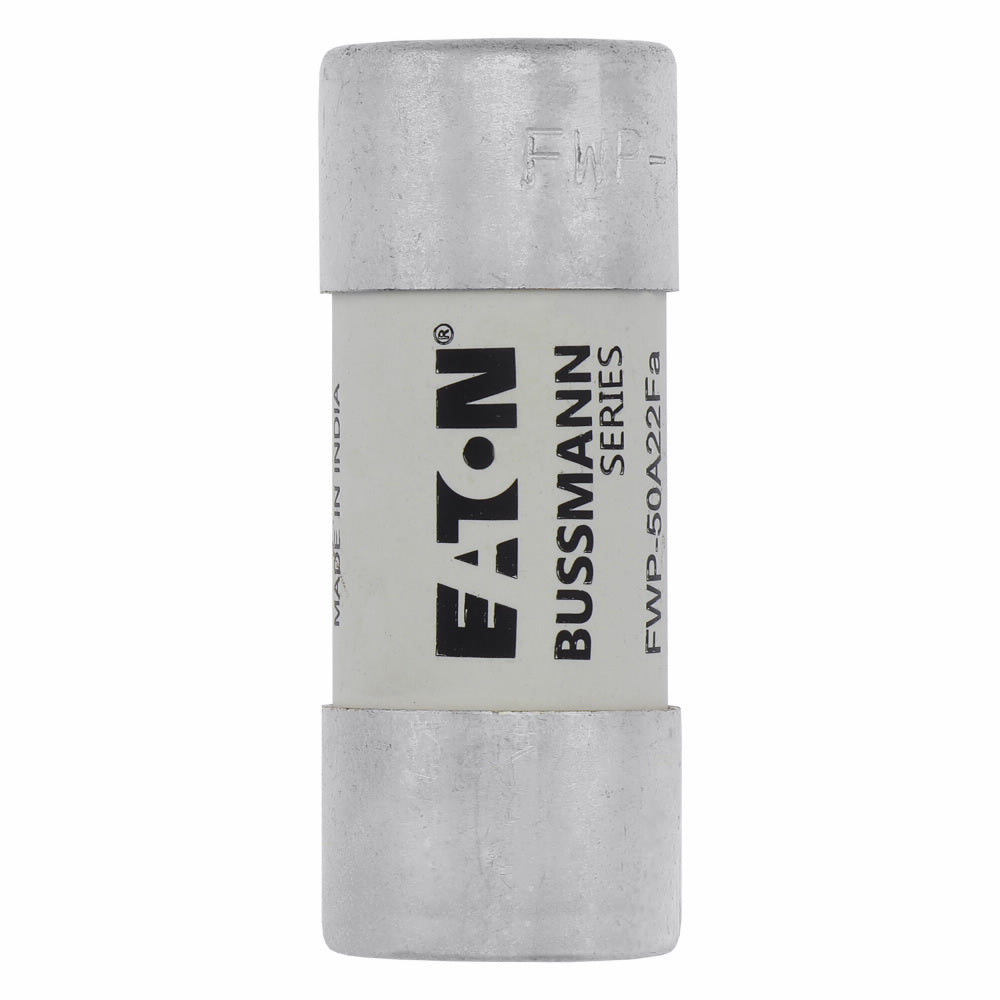

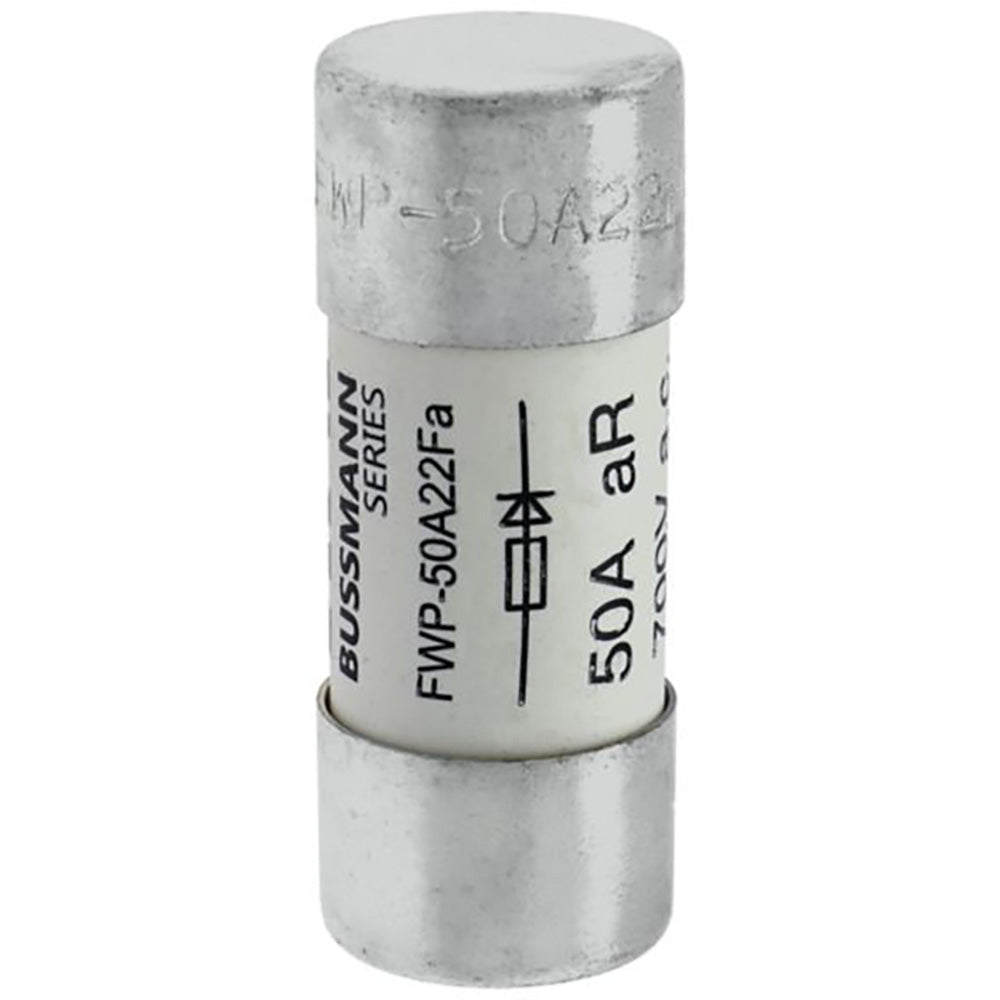

Bussmann FWP-50A22F - FWP Series Fuse 50A 700V (200kA AIC)

Bussmann FWP-50A22F is a low-voltage current-limiting fuse designed for industrial circuit protection applications. It features a 50A current rating and 700V AC voltage rating with 200kA interrupting capacity at rated voltage. The fuse employs a single-barrel ferrule connection design with 0.88-inch diameter construction and weighs 1 lb. Certified to UL, CSA, and CE standards, this FWP series fuse meets rigorous industrial safety requirements. Typical applications include motor control centers, industrial control panels, and power distribution systems where reliable overcurrent protection is critical.

Key Features & Specifications

• Type: FWP series current-limiting fuse with ferrule connection
• Voltage Rating: 700V AC
• Current Rating: 50A
• Dimensions: 2-9/32 inch length, 0.88 inch diameter
• Standards: UL Recognized, CSA Certified, CE
• Applications: Industrial control panels, motor control centers, power distribution
• AIC rating: 200kA@700V
• Connection: Ferrule
• Barrels: 1
• Weight: 1 lb
• Certification: CE, CSA Certified, UL Recognized

Product Identification

• UPC: 051712796569
• GTIN: 00051712796569
