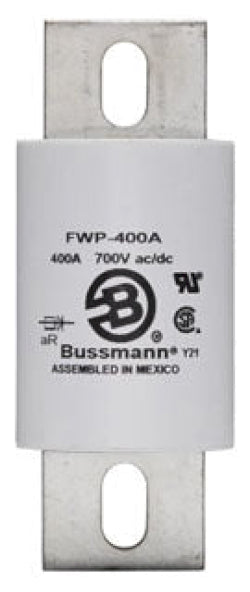

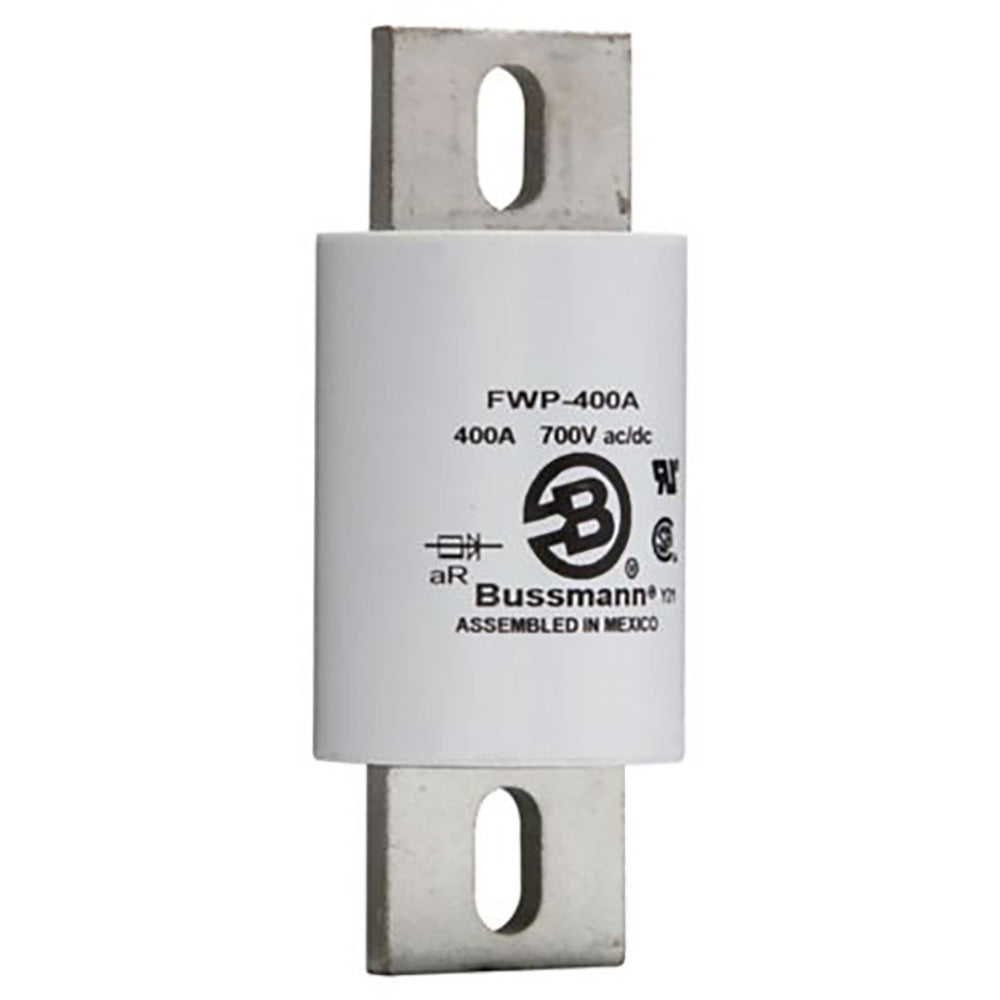

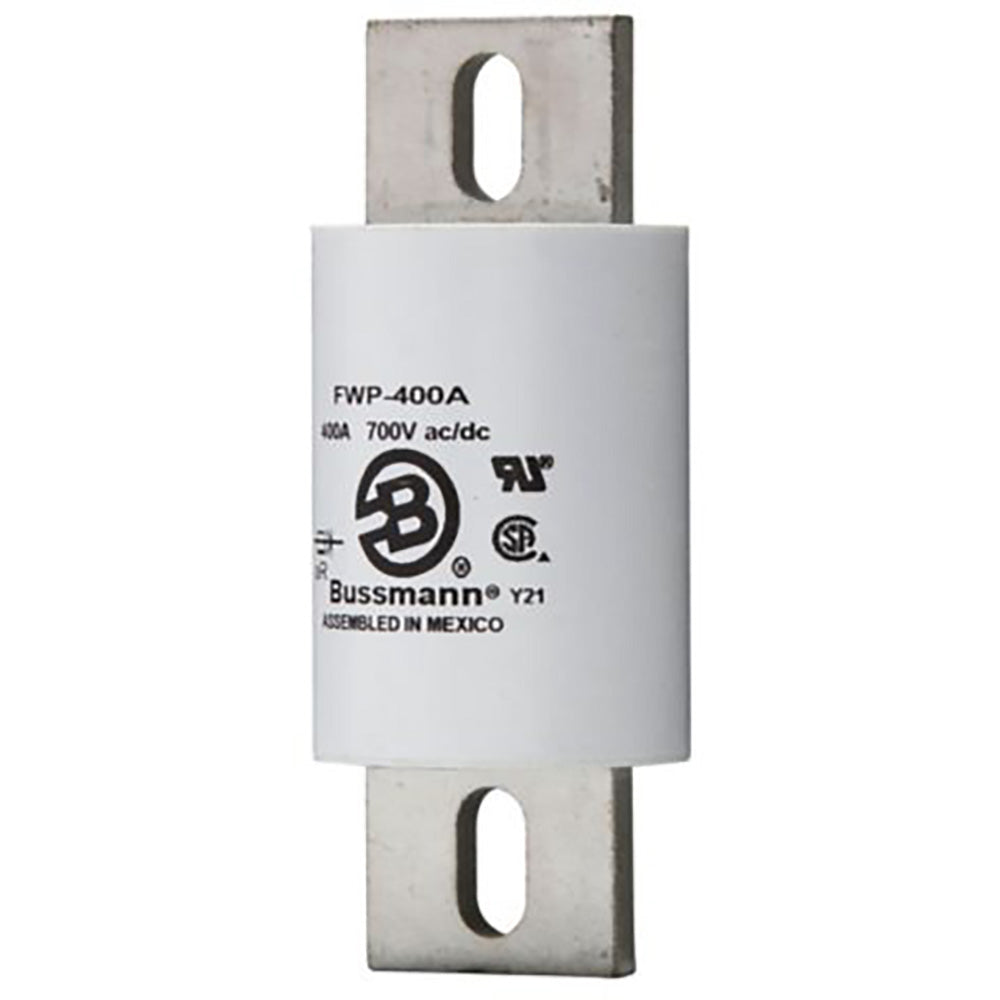

Eaton FWP-400A - Low-Voltage Fuse 400A (200kA AIC @ 700V)

Eaton FWP-400A is a low-voltage fuse designed for high-current circuit protection in industrial applications. It features a 700V AC/DC voltage rating and a 400A current rating, with a robust stud connection and single-barrel construction for reliable performance. The fuse measures 5-3/32 inches in length with a 2-inch diameter, constructed to meet CE, CSA, and UL standards for safety and compliance. Its 200kA interrupting capacity at 700V ensures protection in demanding environments, making it suitable for power distribution systems, motor controls, and heavy machinery.

Key Features & Specifications

• Type: FWP series, low-voltage fuse with stud connection
• Voltage Rating: 700V AC/DC
• Current Rating: 400A
• Dimensions: 5-3/32 in length, 2 in diameter
• Weight: 1 lb
• Standards: CE, CSA Certified, UL Recognized
• AIC Rating: 200kA @ 700V
• Connection: Stud
• Barrels: 1
• Certification: CE, CSA, UL
• Applications: Power distribution, motor protection, industrial equipment

Product Identification

• UPC: 051712150439
• GTIN: 00051712150439
