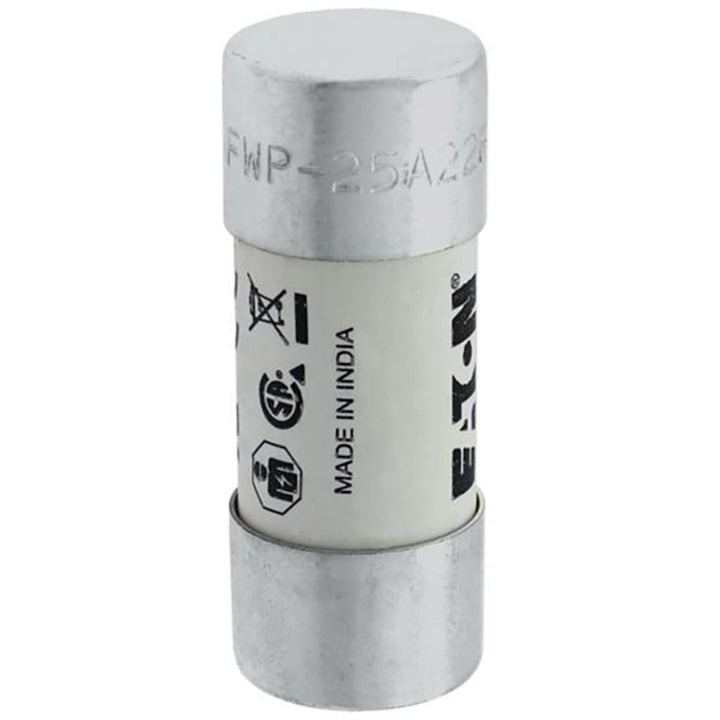

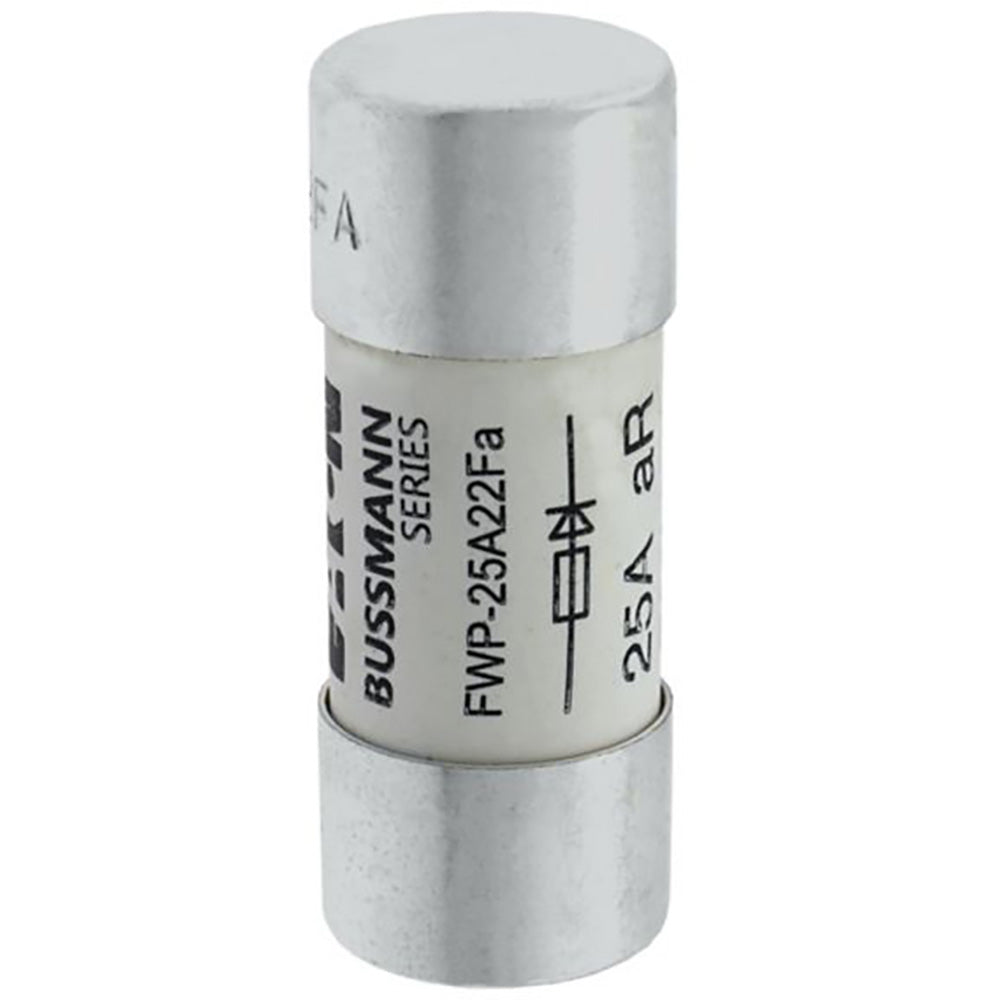

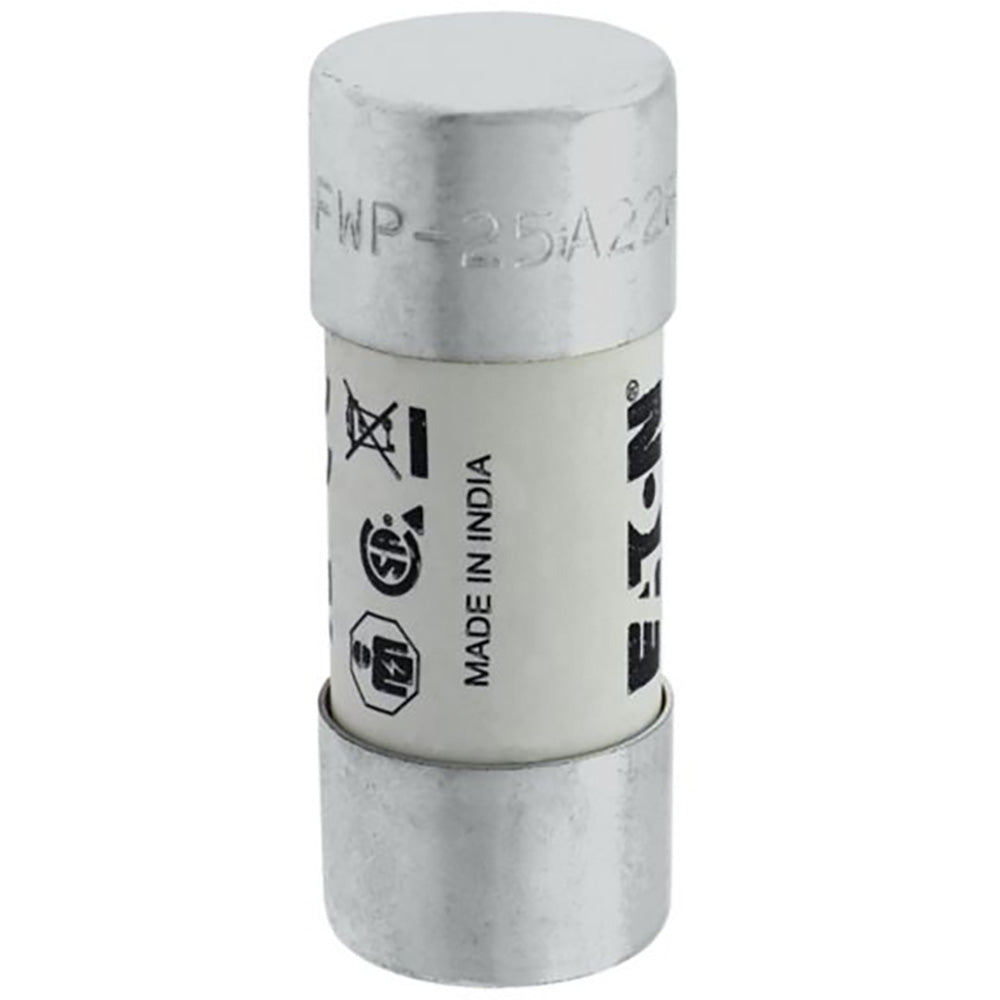

Bussmann FWP-25A22F - Low Voltage Fuse 25A 700V (200kA AIC Rating)

The Bussmann FWP-25A22F is a low-voltage current-limiting fuse designed to provide reliable overcurrent protection in industrial electrical systems. It features a 25A current rating and 700V AC voltage rating with a high 200kA interrupting capacity at rated voltage for superior fault protection. The fuse construction utilizes a single-barrel design with ferrule connections and measures 0.88 inches in diameter with a weight of 5.19 lb. This FWP series fuse meets industry standards for current-limiting performance and is UL recognized for safety compliance. Typical applications include protection of motor circuits, transformers, and power distribution equipment in commercial and industrial facilities.

Key Features & Specifications

• Type: Current-limiting fuse, single barrel design with ferrule connections
• Voltage Rating: 700V AC
• Current Rating: 25A
• Dimensions: 0.88 inches diameter
• Standards: UL recognized
• Applications: Motor circuit protection, transformer protection, power distribution systems
• AIC rating: 200kA@700V
• Connection: Ferrule
• Barrels: 1
• Weight: 5.19 lb
• Family: FWP Series
• Item Subcategory: Low Voltage Fuse

Product Identification

• UPC: 051712796538
• GTIN: 00051712796538
