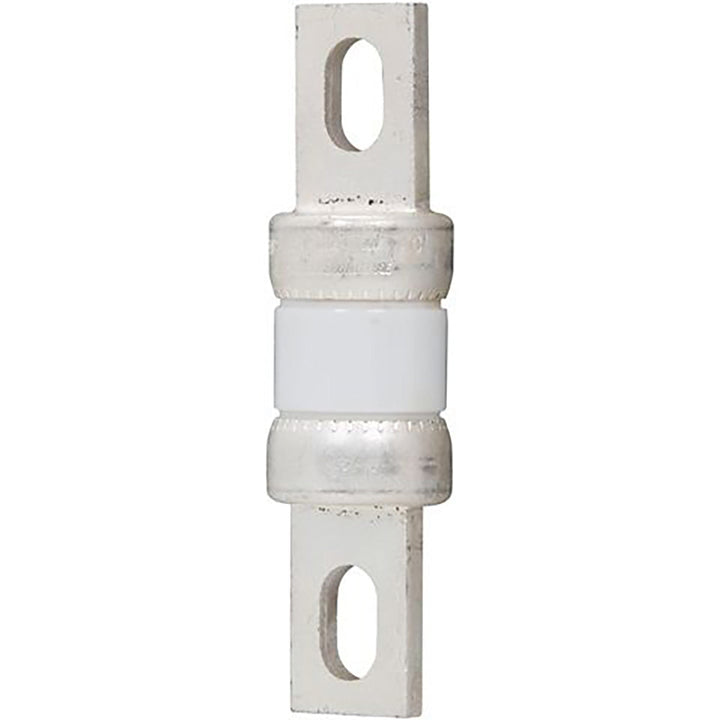

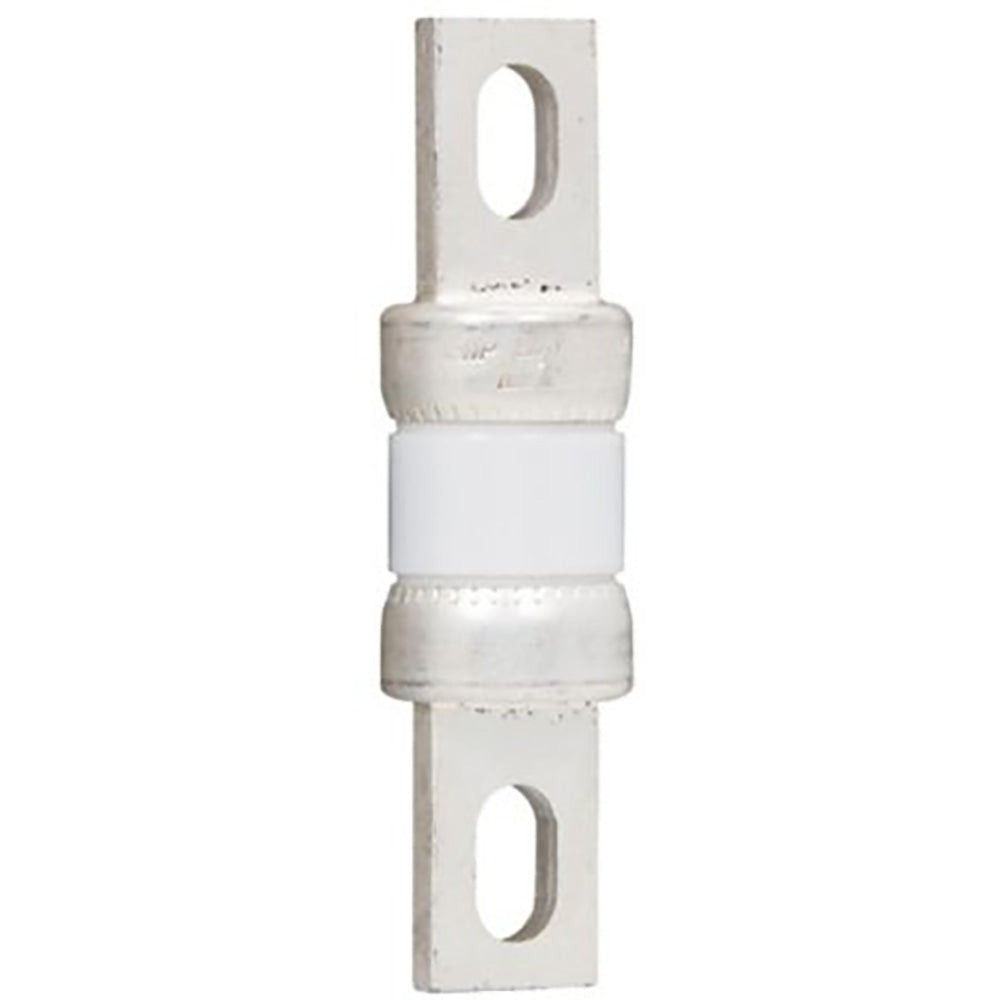

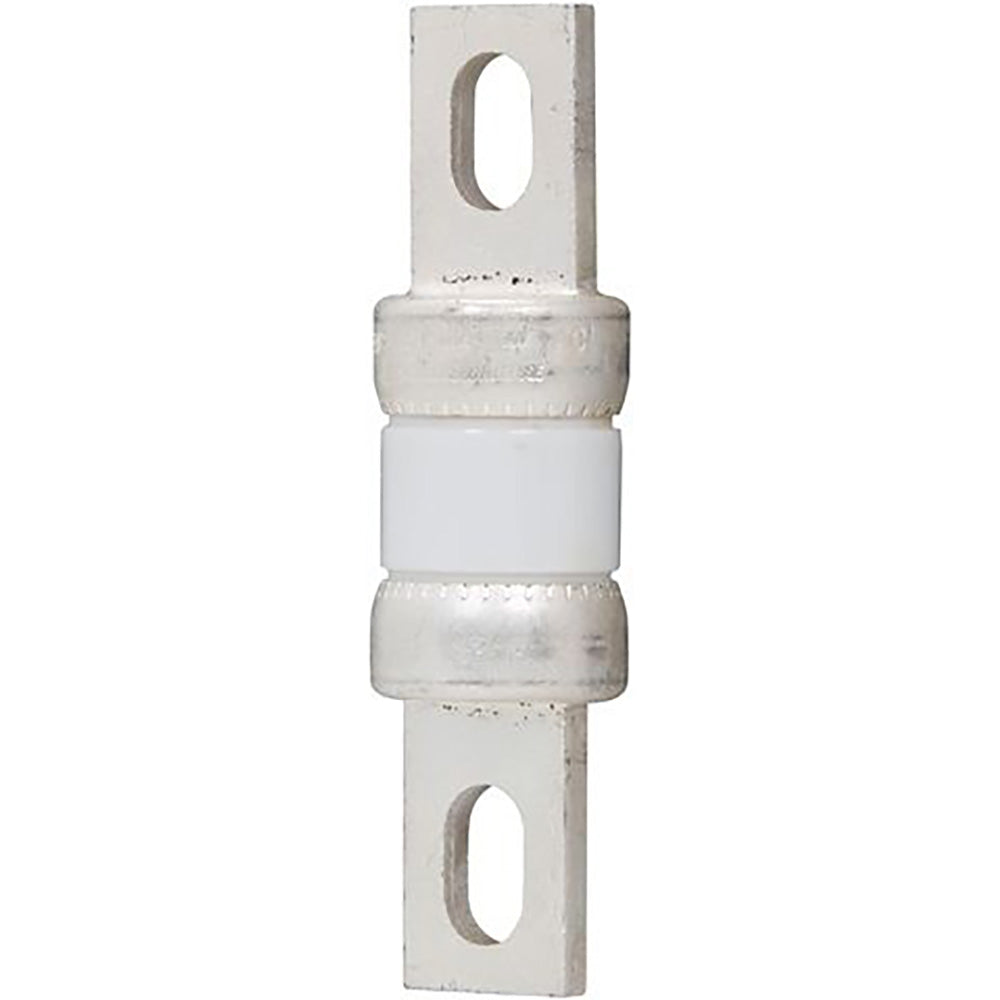

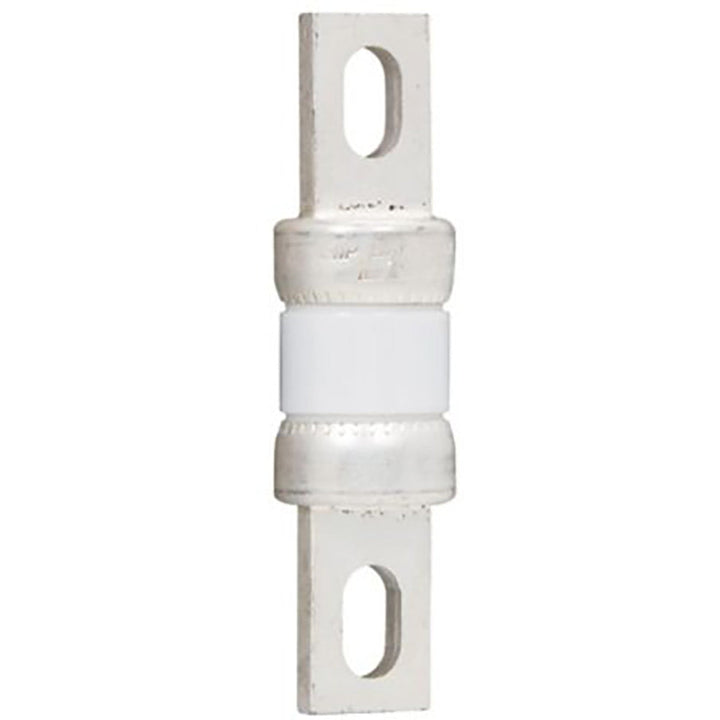

Bussmannn FWP-150 - Low Voltage Fuse 700V (200kA AIC)

Bussmannn FWP-150 is a low-voltage fuse designed for high-performance circuit protection in industrial power systems. This bolted-connection fuse features a 700V AC rating and a 200kA interrupting capacity at rated voltage, ensuring reliable fault current interruption. The single-barrel design with a 0.56-inch diameter and 5 lb weight provides robust construction with UL, CSA, and CE certifications for compliance with international safety standards. Engineered for demanding applications, it's commonly used in motor control centers, switchgear, and power distribution panels where high short-circuit protection is critical.

Key Features & Specifications

• Type: FWP series bolted low-voltage fuse
• Voltage Rating: 700V AC
• AIC Rating: 200kA@700Vac
• Dimensions: 0.56" diameter
• Weight: 5 lb
• Standards: UL, CSA, CE certified
• Applications: Industrial power distribution, motor protection
• Connection: Bolted
• Barrels: 1
• Certification: UL, CSA, CE

Product Identification

• UPC: 005171250875
• GTIN: 00051712508759
