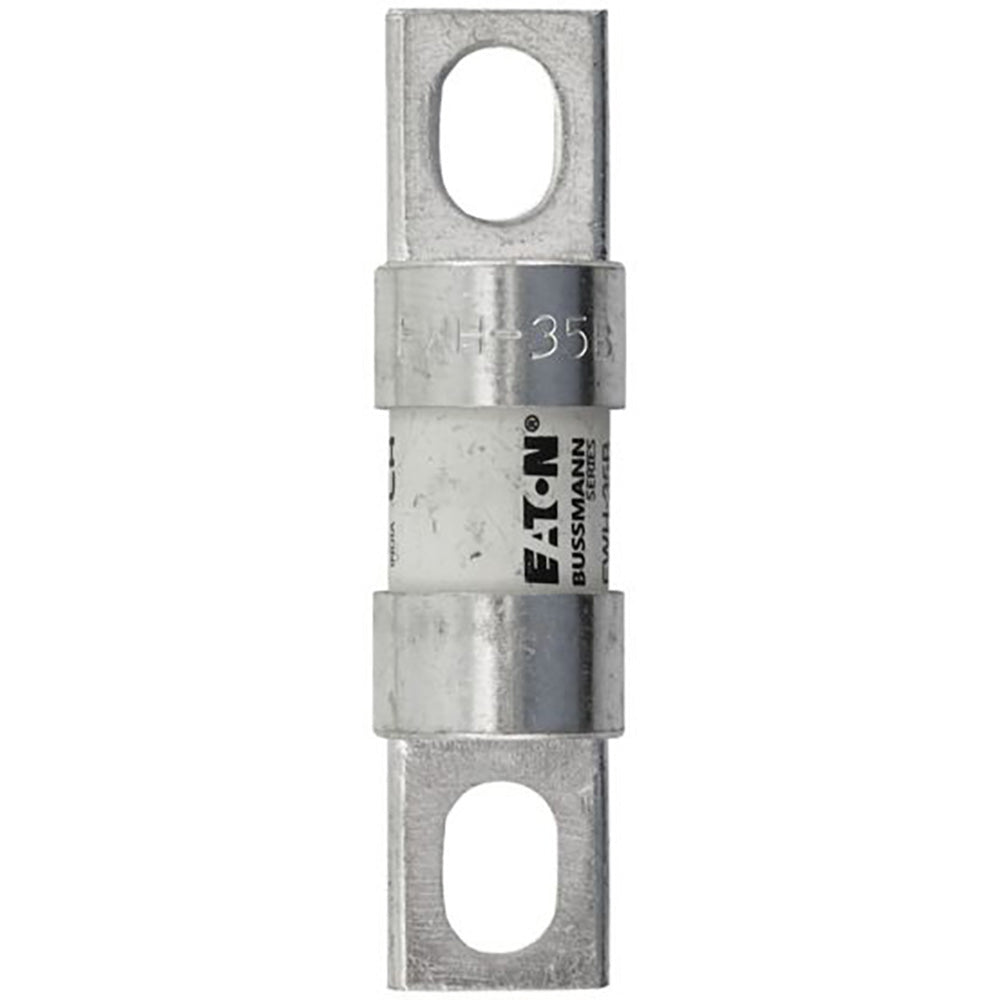

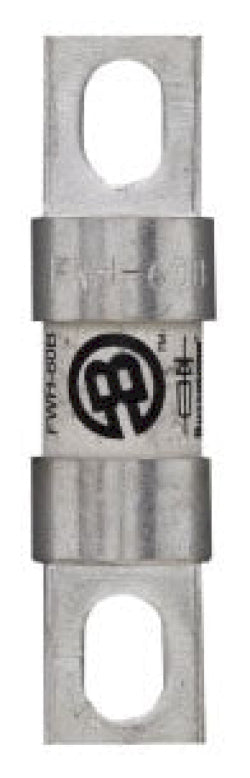

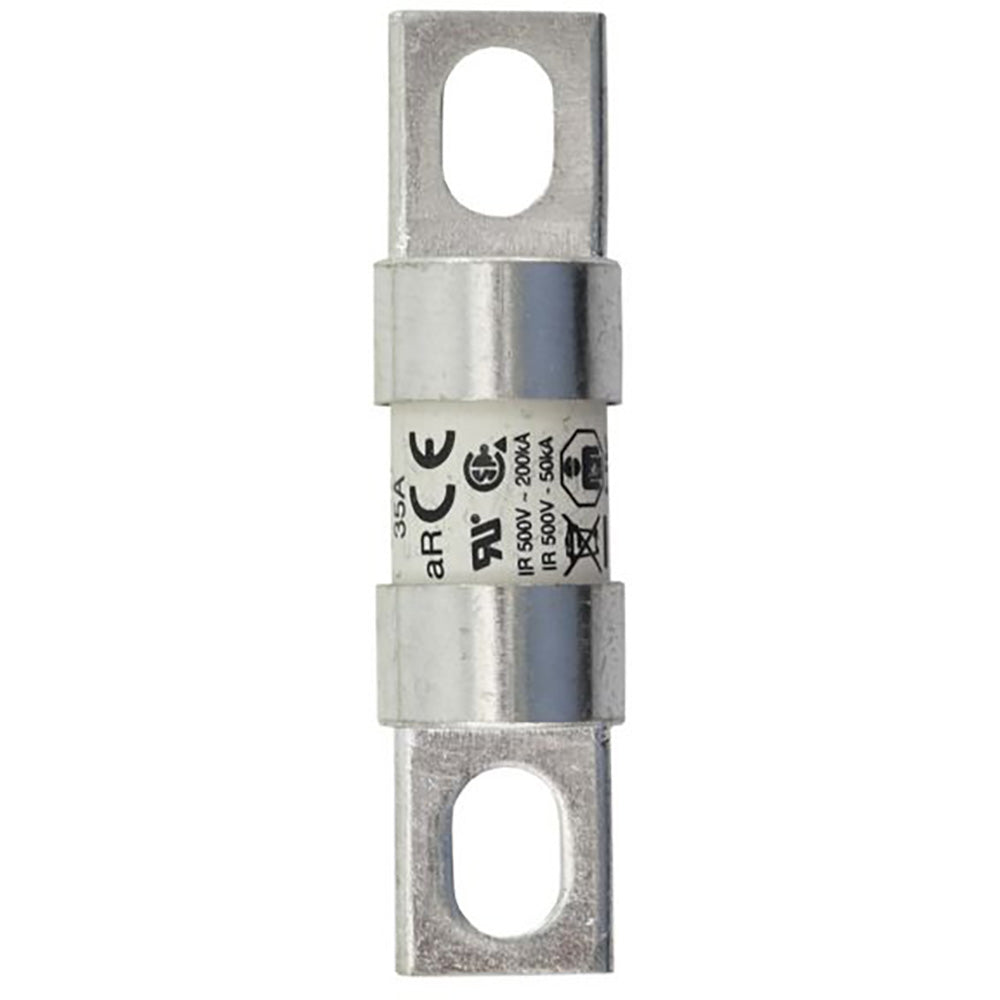

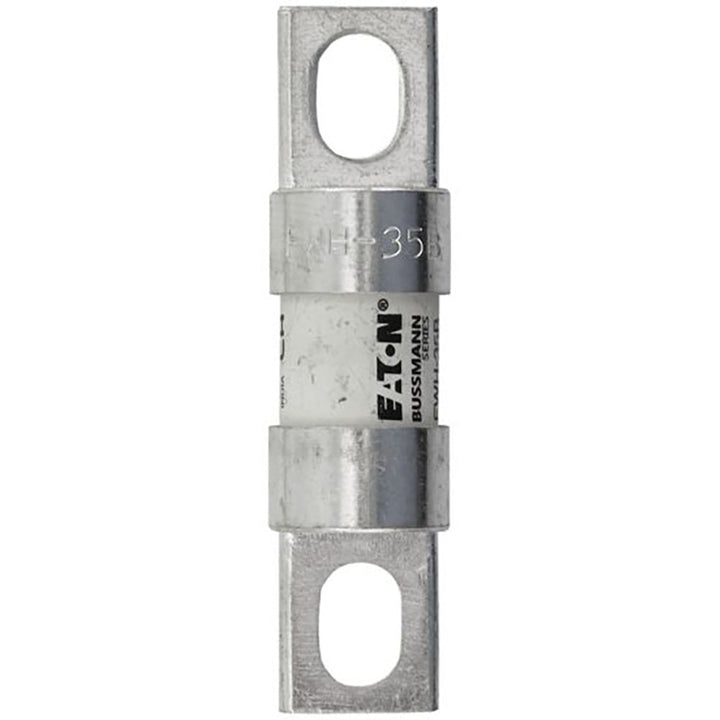

Bussmann FWH-35B - FWH Series Fuse 35A 500V (200kA AIC)

Bussmann FWH-35B is a low-voltage fuse designed for high-interrupting circuit protection in industrial electrical systems. This 500V-rated fuse handles 35A continuous current with a 200kA interrupting capacity at rated voltage, featuring a stud-mounted single-barrel construction with a 0.81-inch diameter and 3-3/16-inch length. Certified to UL, CSA, and CE standards, the FWH series fuse meets rigorous safety requirements for commercial power distribution, motor protection, and heavy equipment applications.

Key Features & Specifications

• Type: FWH series low-voltage current-limiting fuse with silver-element construction
• Voltage Rating: 500V AC/DC
• Current Rating: 35A
• Dimensions: 3-3/16 in length x 0.81 in diameter
• Weight: 5 lb
• Connection: Stud terminal
• Barrels: 1
• AIC Rating: 200kA@500V
• Certification: UL Recognized, CSA Certified, CE compliant
• Applications: Industrial power distribution, motor circuits, transformer protection

Product Identification

• UPC: 051712795746
• GTIN: 00051712795746
