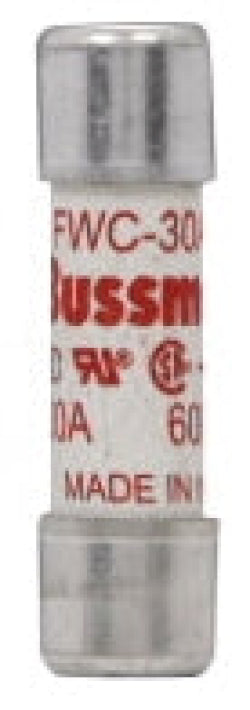

Bussmann FWC-20A10F - FWC Series Fuse 20A 600V (200kA AIC Rating)

Bussmann FWC-20A10F is a low voltage current-limiting fuse designed for circuit protection in industrial electrical systems. It features a 20A current rating and 600V AC voltage rating with ferrule connections for secure installation. The fuse measures 1-1/2 inches in length with a 0.4-inch diameter and is constructed as a single-barrel design weighing 1 lb. Certified to UL and CE standards, it provides 200kA interrupting capacity at 600V for reliable fault protection. Typical applications include motor control centers, industrial control panels, and power distribution equipment where high interrupting capacity is required.

Key Features & Specifications

• Type: FWC Series current-limiting fuse with ferrule connection
• Voltage Rating: 600V AC
• Current Rating: 20A
• Dimensions: 1-1/2 inch length x 0.4 inch diameter
• Standards: UL Recognized, CE Certified
• Applications: Industrial control panels, motor control centers, power distribution
• AIC rating: 200kA@600V
• Connection: Ferrule
• Barrels: 1
• Weight: 1 lb
• Certification: CE, UL Recognized
• Family: FWC Series
• Item Subcategory: Low Voltage Fuse

Product Identification

• UPC: 051712796460
• GTIN: 00051712796460
